1–2 Site Preparation and Maintenance
Figure 1–1 shows a rear view of the DECserver 700-08. The DECserver 700-16 sup-
ports EIA-423-A and DEC 423 data-leads on 16 MJ8 connectors. Use this model to
connect devices requiring data-leads for operation (for example: terminals, printers,
and personal computers in terminal emulation mode). You can connect the DEC-
server to modems that do not require the full complement of signals provided by the
DECserver 700-08, using special adapters (Section 3.3).
NOTE
Adapters H8585-AB and H8585-AC are not for con-
nection to public networks in Sweden, Germany, or Ja-
pan.

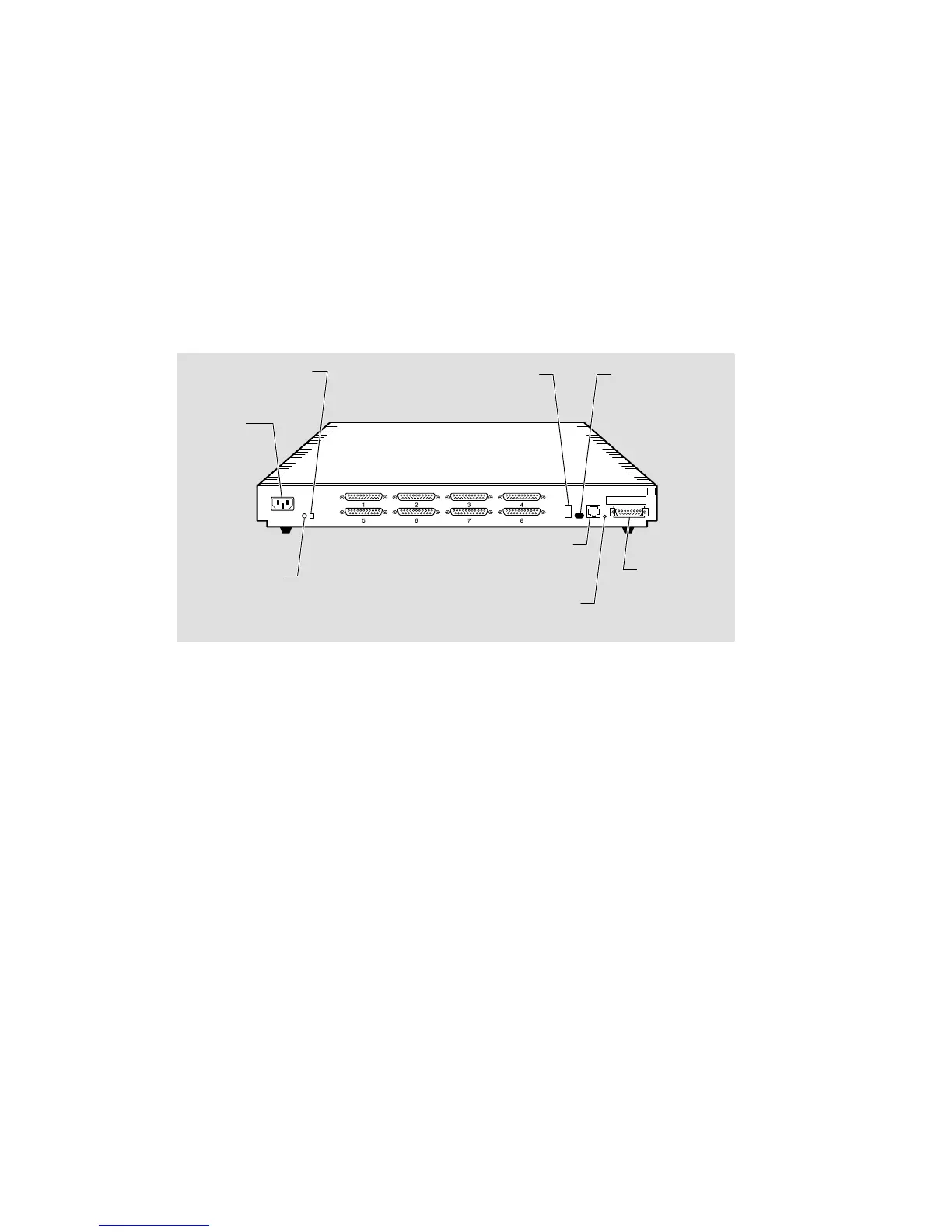

Figure 1–1: DECserver 700-08 Rear View
LKG-5569-91I
Power
receptacle
Seven-segment
display
Ethernet
select
switch
Standard
Ethernet
connector
System
OK LED
10BaseT
Ethernet
connector
System reset
switch
Network
activity LED
Serial ports
