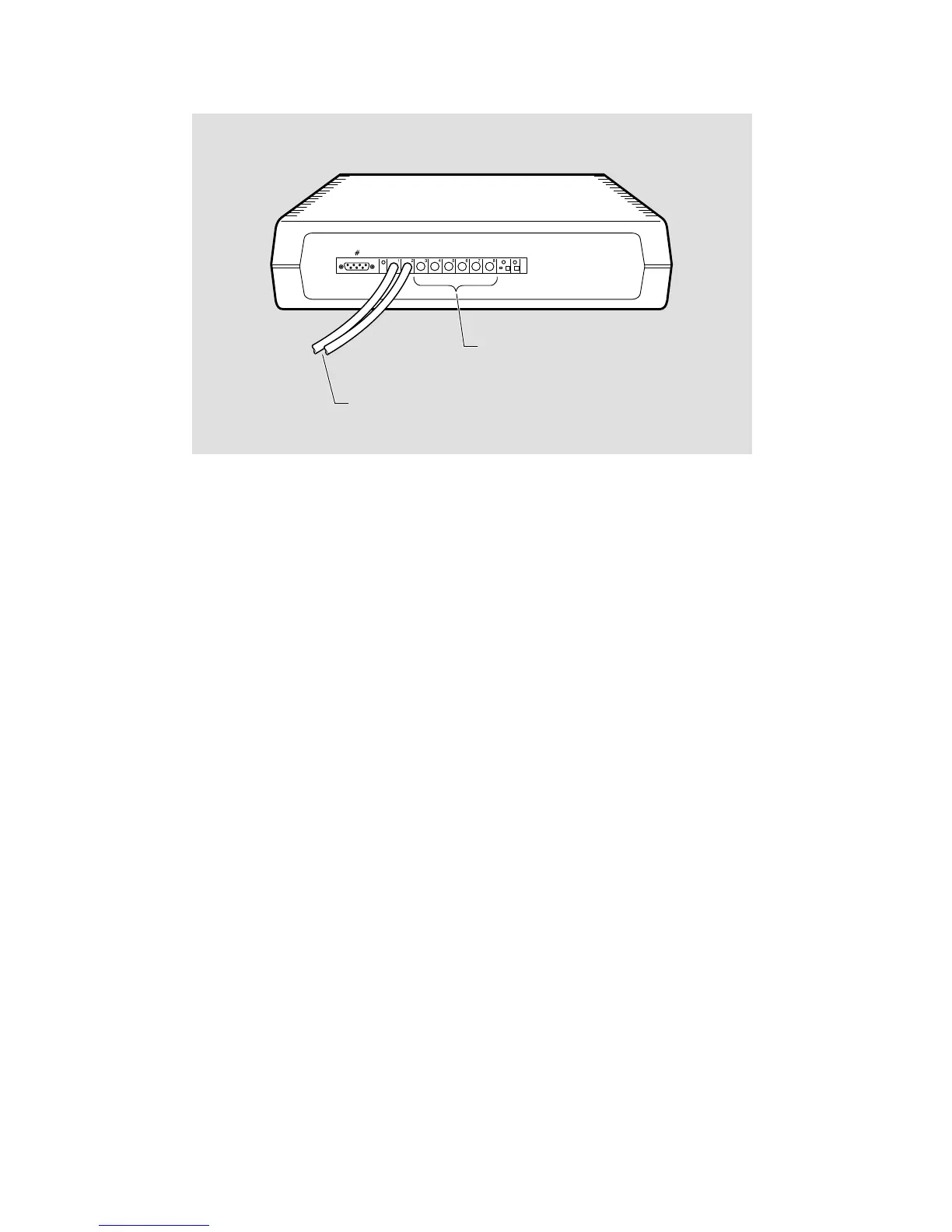

Figure 3–6: DEMPR Connections
LKG-2596-91I
Terminators
ThinWire cables
3.3 Installing Serial Cables and Devices on the DECserver 700-16
The DECserver 700-16 can be configured by the software to support one of the two
sets of signals. One set consists of:
• Clear to send (CTS) — This is the default setting.
• Request to send (RTS) — This is the default setting.
• Data set ready (DSR) — This is the default setting.
• Data terminal ready (DTR) — This is the default setting.
The second set consists of:
• Ring indicator (RI)
• Data signal rate selector (DSRS)
• Data carrier detect (DCD)
