Connector and Cable Pin Descriptions 4–3
4.1.2 10BaseT Ethernet
The 10BaseT Ethernet connector is an 8-pin modular jack (MJ8). Figure 4-2 shows
how the pins are numbered on a 10BaseT Ethernet connector and lists the signals for
the 10BaseT Ethernet connector.

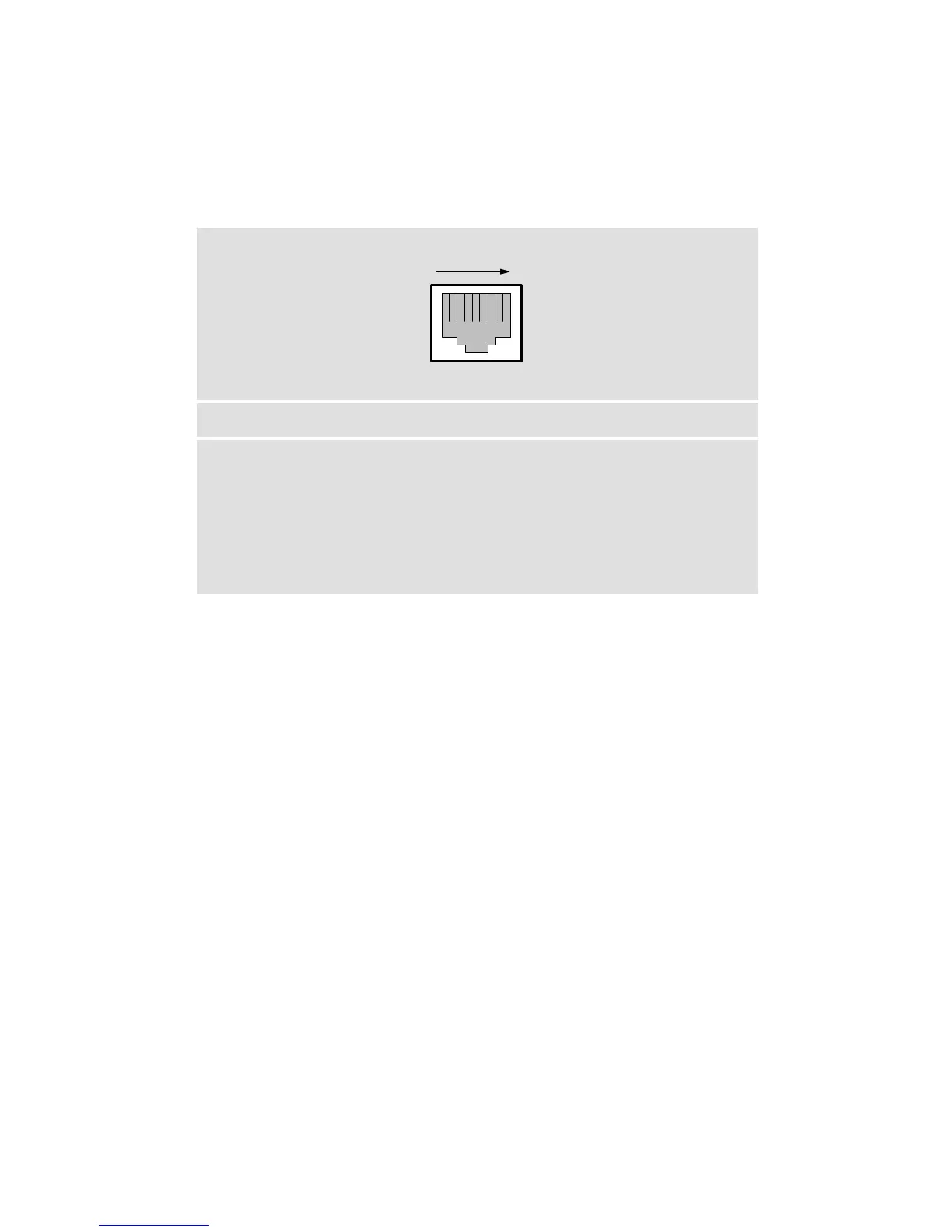

Figure 4–2: Pin Numbers and Signals for 10BaseT Ethernet Connector
PIN 1 8
Pin Number Signal Name
1
2
3
4
5
6
7
8
Transmit +
Transmit –
Receive +
Reserved
Reserved
Receive –
Reserved
Reserved
LKG-5511-91I
