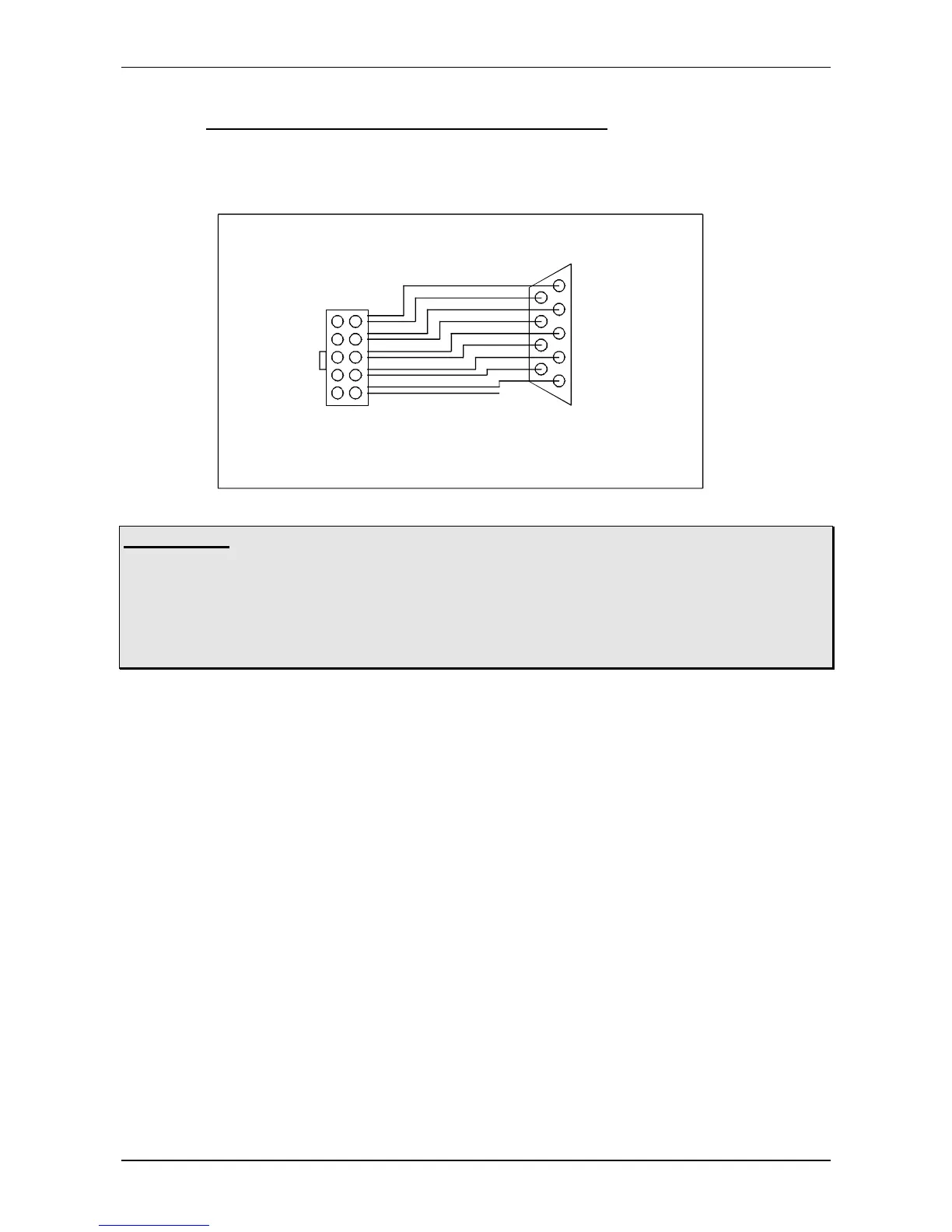

10.2 The COM 1/2/3/4 serial interface cable
DT terminal for dual row 0.1" (2.54 mm grid) and 1.27 mm flat cable.
21
COM1
9pin D-Sub
male
COM1/2
1
6
2
3
4
5
7
8
9
Line of pin 1
9 10
ATTENTION:
- Do not short-circuit these signal lines.
- Never connect any pins either on the same plug or to any other plug on the MICROSPACE
MSM586SEV. The +/-10 volts will destroy the MICROSPACE core logic immediately. No warranty in
this case!
- Do not overload the output: max. output current converters: 10 mA
