Digital Projection E-Vision Series User Manual

DLP Projector—User’s Manual

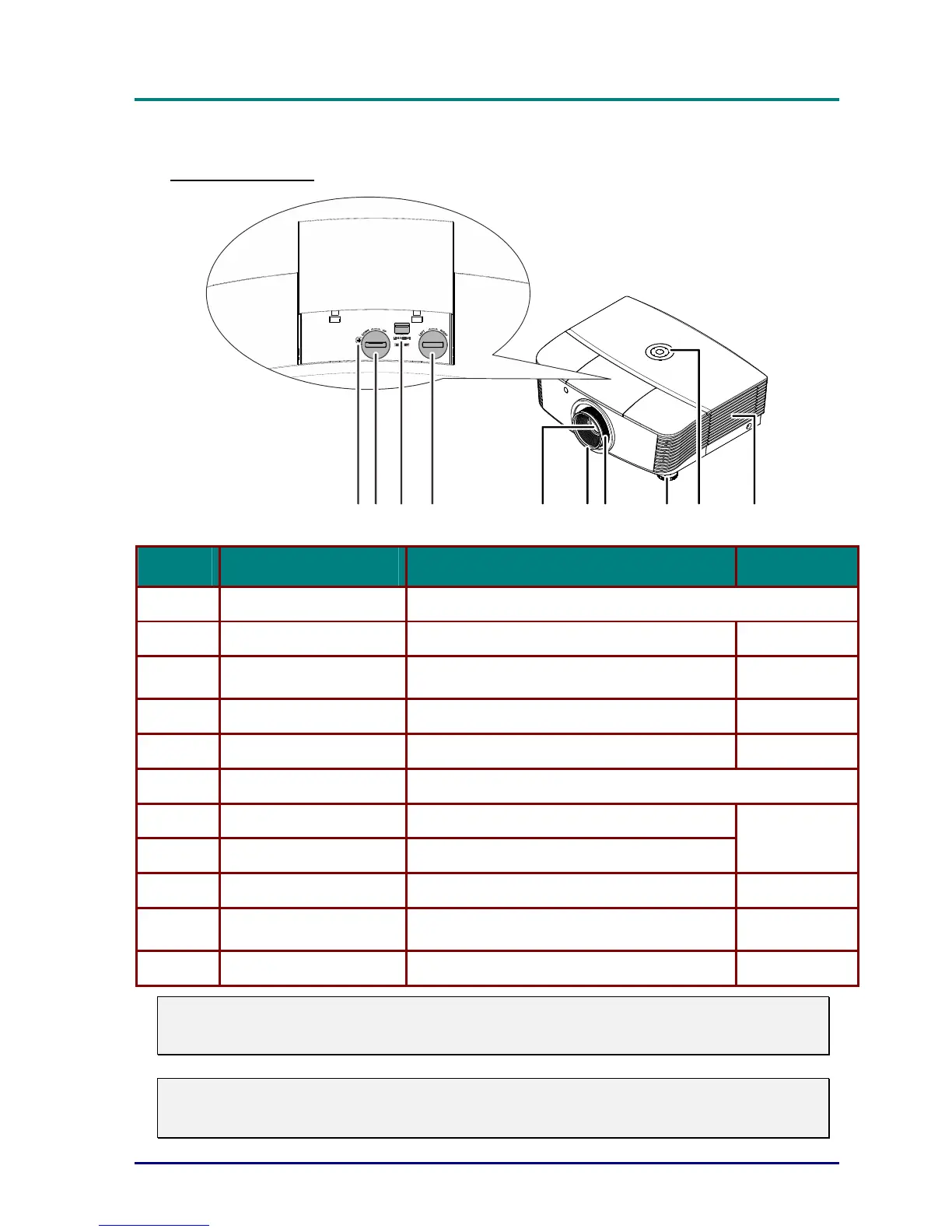

Views of Projector Parts
Front-right View
2
3
4
5
6
7
8
1
0
111
9
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Screw For ensure the lens position
2.
Vertical lens shift Adjusts the image position vertically
18
3.
Lens release button
Press the release button before removing the
lens
11
4.
Horizontal lens shift Adjusts the image position horizontally
19
5.
IR receiver Receives IR signal from remote control
7
6.
Lens Projection Lens
7.
Focus ring Focuses the projected image
8.
Zoom ring Enlarges the projected image
20
9.
Height adjuster Adjusts level of projector
17
10.
Function keys
See Top view—On-screen Display (OSD)
buttons and LEDs.
3
11.
Lamp cover Removes cover to replace lamp module
50
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector
lamp cool. Do not obstruct any of the ventilation openings.
Note:
Suggest to loosen the screw before lens shift adjustment and tighten up after finished
adjustment.
— 2 —

Digital Projection E-Vision Series Specifications

General

Dimensions	Varies by model
Technology	DLP
Light Source	Laser
Light Source Life	Up to 30, 000 hours (laser)
Throw Ratio	Varies by model
Projection Size	Varies depending on lens and distance
Input Lag	Varies by model
Color Gamut	Varies by model, typically Rec.709
HDR Support	Yes
3D Support	Yes
Lens Shift	Vertical and Horizontal
Keystone Correction	Yes
Inputs	HDMI, DisplayPort, DVI, VGA
Weight	Varies by model (typically 20-50 lbs)
Power Consumption	Varies by model (typically 300-500W)
