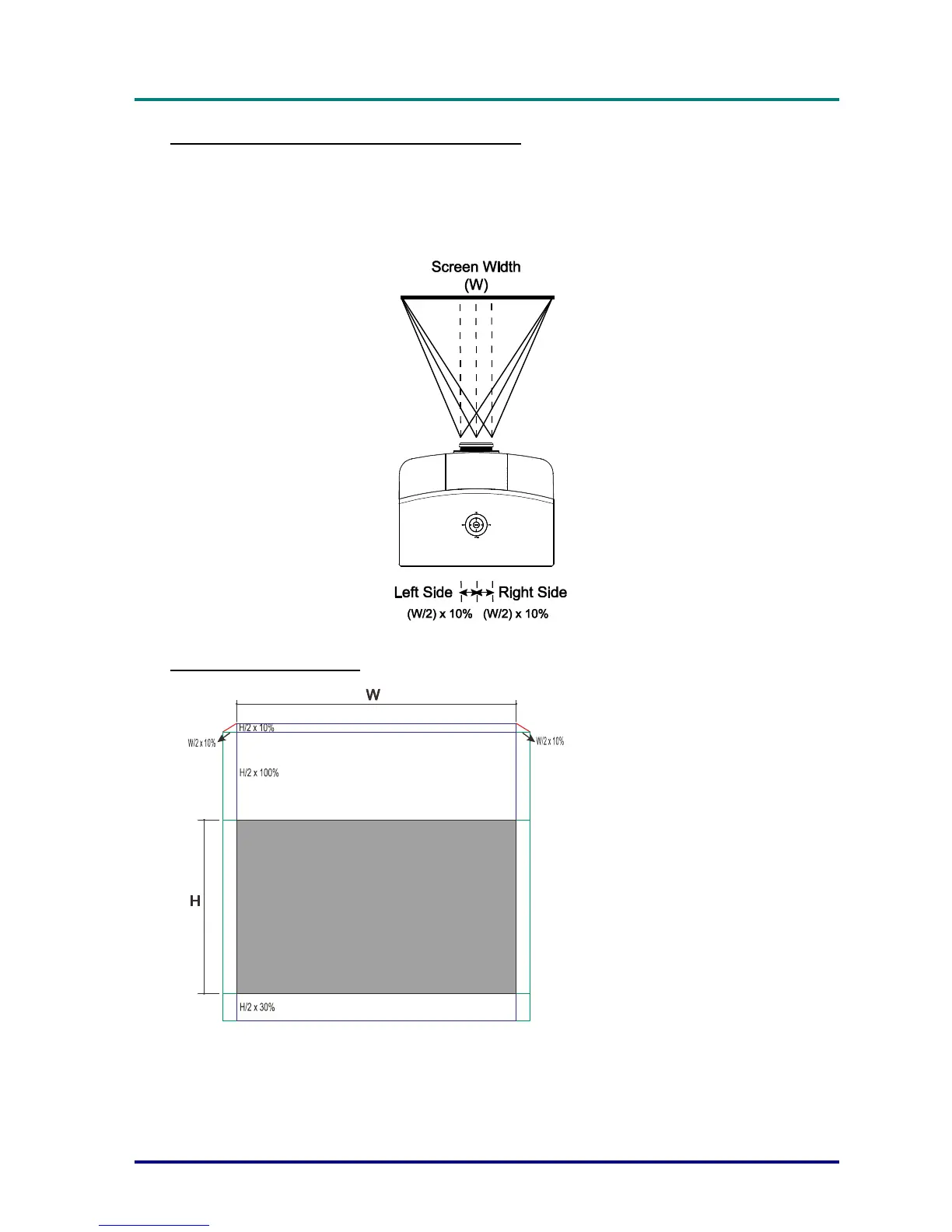

Adjusting the horizontal image position
With the lens in the center position the horizontal image position can be adjusted to the left or right
by up to a maximum of 10% of the half image width. Note that the maximum horizontal image
height adjustment can be limited by the vertical image position. For example it is not possible to
achieve the maximum horizontal image position if the vertical image position is at maximum.
Please consult the Shift Range diagram below for further clarification.
Shift Range Diagram
The max H up shift = H/2 x 110%
The max H down shift = H/2 x 30%
The max W shift = W/2 x 10%
When max W shift is W/2 x 10%
max H shift = H/2 x 100%
When max H shift is H/2 x 110%
max W shift = H x 0%
– 19 –
