Digital Projection E-Vision Series - Installing the New Lens

DLP Projector—User’s Manual
Installing the New Lens

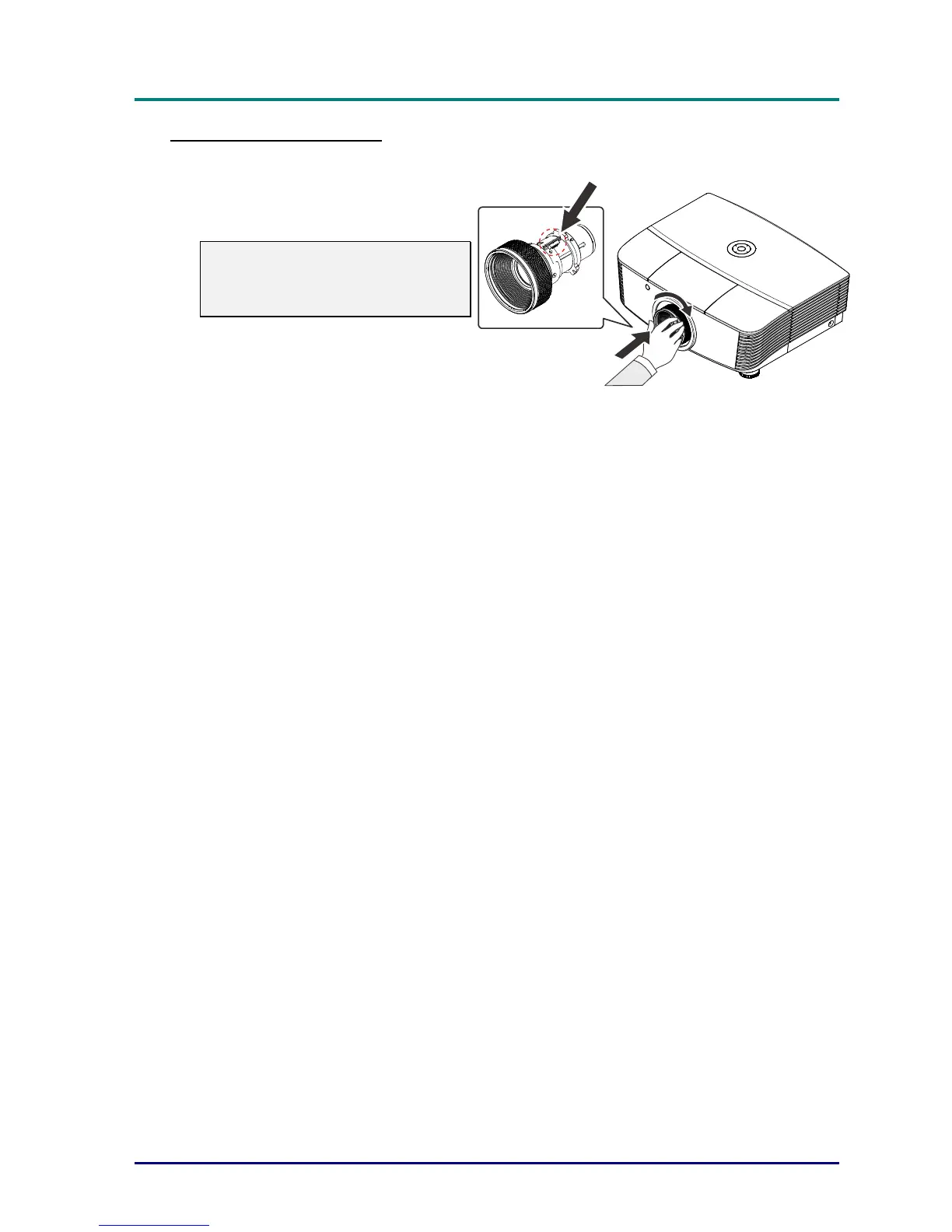

1.
Align the notches and correctly
position the electrical contact pad as
shown in the picture.
Note:
Pin of Electrical contact pins should
be in the direction as shown in the
picture.
2.
Rotate the lens clockwise until you
feel it click into place.
El
ectr
i
ca
l
contact p
i
ns
— 12 —
