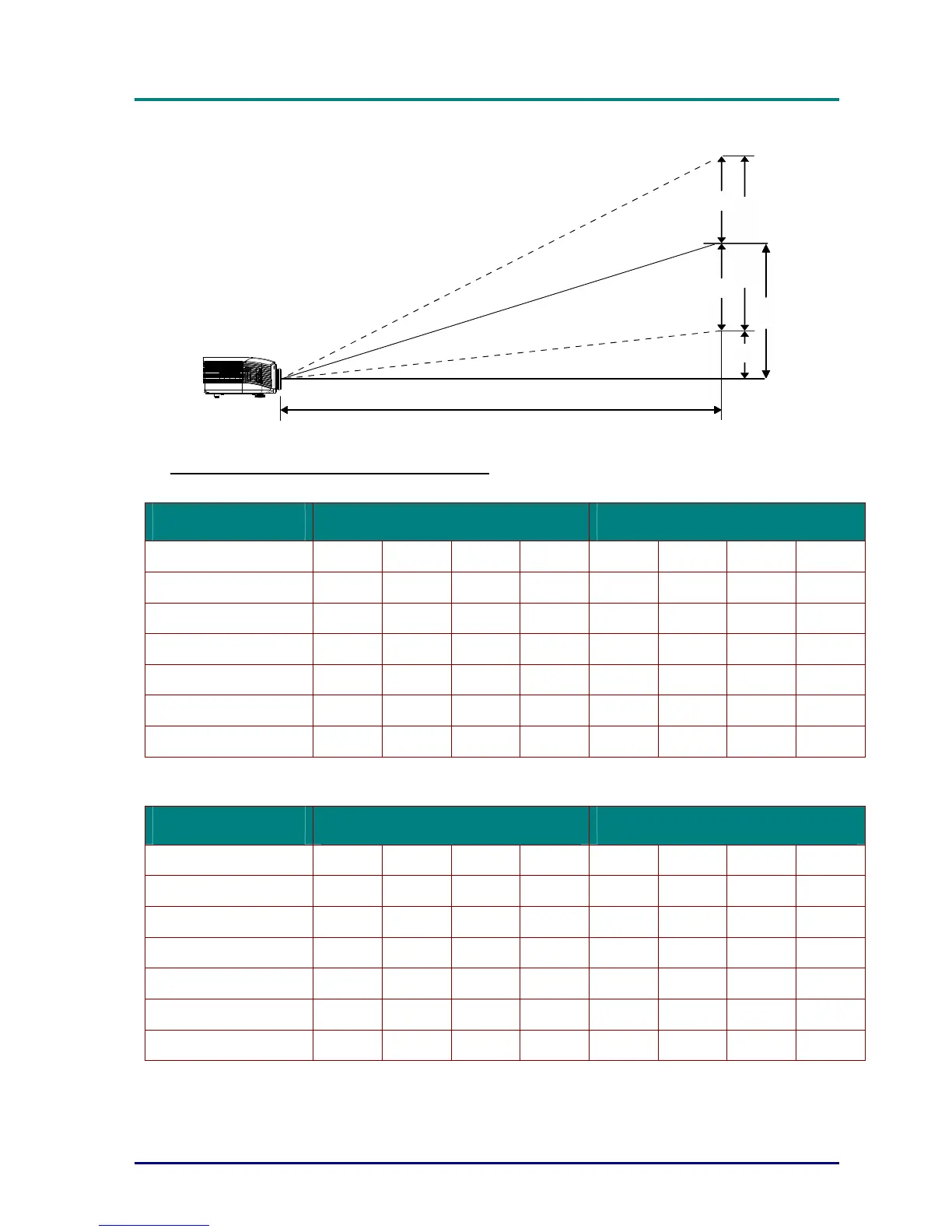

Projection Distance vs. Projection Size

V-S
y
nc
Projection Distance
H
H
O
Image Height
A
Projection Distance and Size Table
Standard projection lens: TR: 1.54 ~ 1.93; offset=110%
TELE WIDE
Distance (m)
1.66 3.33 4.16 8.31 1.66 3.32 6.63 9.95
Diagonal (")
40 80 100 200 50 100 200 300
Image Width (mm)
862 1723 2154 4308 1077 2154 4308 6462
Image Height (mm)
538 1077 1346 2692 673 1346 2692 4039
H (mm)
269 538 673 1346 337 673 1346 2019
O (mm)
296 592 740 1481 370 740 1481 2221
A (mm)
27 54 67 135 34 67 135 202
Long throw projection lens: TR: 1.93 ~ 2.9; offset=110%
TELE WIDE
Distance (m)
2.5 6.25 12.49 18.74 2.08 6.24 12.47 18.71
Diagonal (")
40 100 200 300 50 150 300 450
Image Width (mm)
862 2154 4308 6462 1077 3231 6462 9693
Image Height (mm)
538 1346 2692 4039 673 2019 4039 6058
H (mm)
269 673 1346 2019 337 1010 2020 3029
O (mm)
296 740 1481 2221 370 1111 2222 3332
A (mm)
27 67 135 202 34 101 202 303
— 66 —

Digital Projection E-Vision Series Specifications

General

Dimensions	Varies by model
Technology	DLP
Light Source	Laser
Light Source Life	Up to 30, 000 hours (laser)
Throw Ratio	Varies by model
Projection Size	Varies depending on lens and distance
Input Lag	Varies by model
Color Gamut	Varies by model, typically Rec.709
HDR Support	Yes
3D Support	Yes
Lens Shift	Vertical and Horizontal
Keystone Correction	Yes
Inputs	HDMI, DisplayPort, DVI, VGA
Weight	Varies by model (typically 20-50 lbs)
Power Consumption	Varies by model (typically 300-500W)
