44

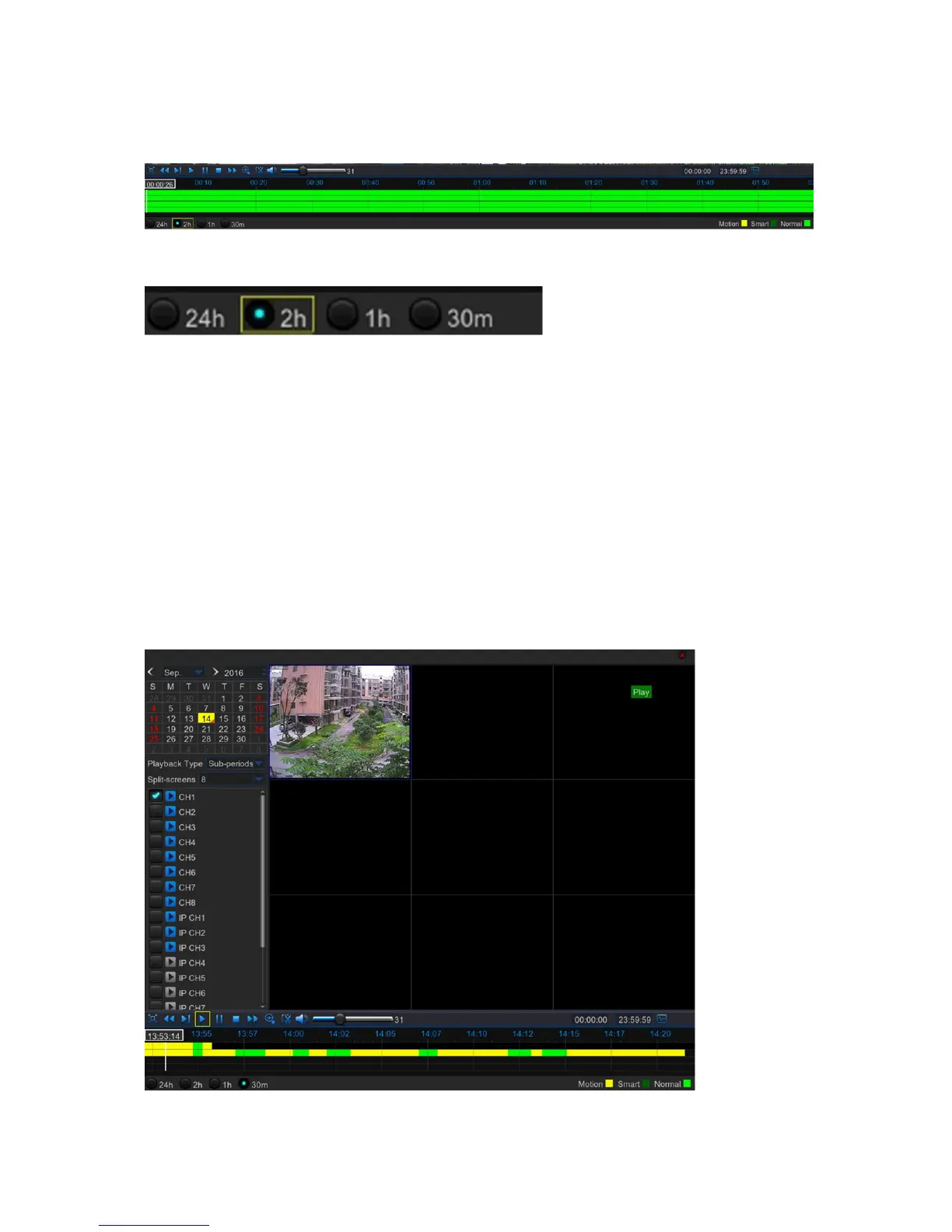

5.7.4.3 Time Frame
During video playback, the time bar is displayed in 24 Hours (00: 00~24: 00) by default.
You can shorten the time bar to be displayed in 2 Hours, 1 Hour or 30 Minutes in order to make an
accurate position to the time bar.
5.7.4.4 Sub-periods Playback
This function will allow you to divide a recording video into average separate segments and play
together in the same screen.
1) In the video playback interface, choose Sub-periods from Playback Type section.
2) Select a channel you want to play.
3) Choose the Split Screens. If you have a 4 Channel DVR, the max. split screens will be 4. And
8 for 8 Channel DVR as well 16 for 16 Channel DVR.
For example, if the video you want to play is 60 minutes in length, and the split screen is 4, the
video will be divided in to 4 segments, and each segment will be 15 minutes in length. All the 4
segments will be played in the same screen.
