DINGLI JCPT DCS Series User Manual

培训手册 Training Manual
电气原理图 Electrical Schematic
JCPT-HD/DC
www.cndingli.com
6-2
蓄电池 B attery
机型 Model
型号 T ype
单个蓄电池电压
Voltage
单个蓄电池容量
Capacity
JCPT0607DCS DC85-12 12V 85Ah

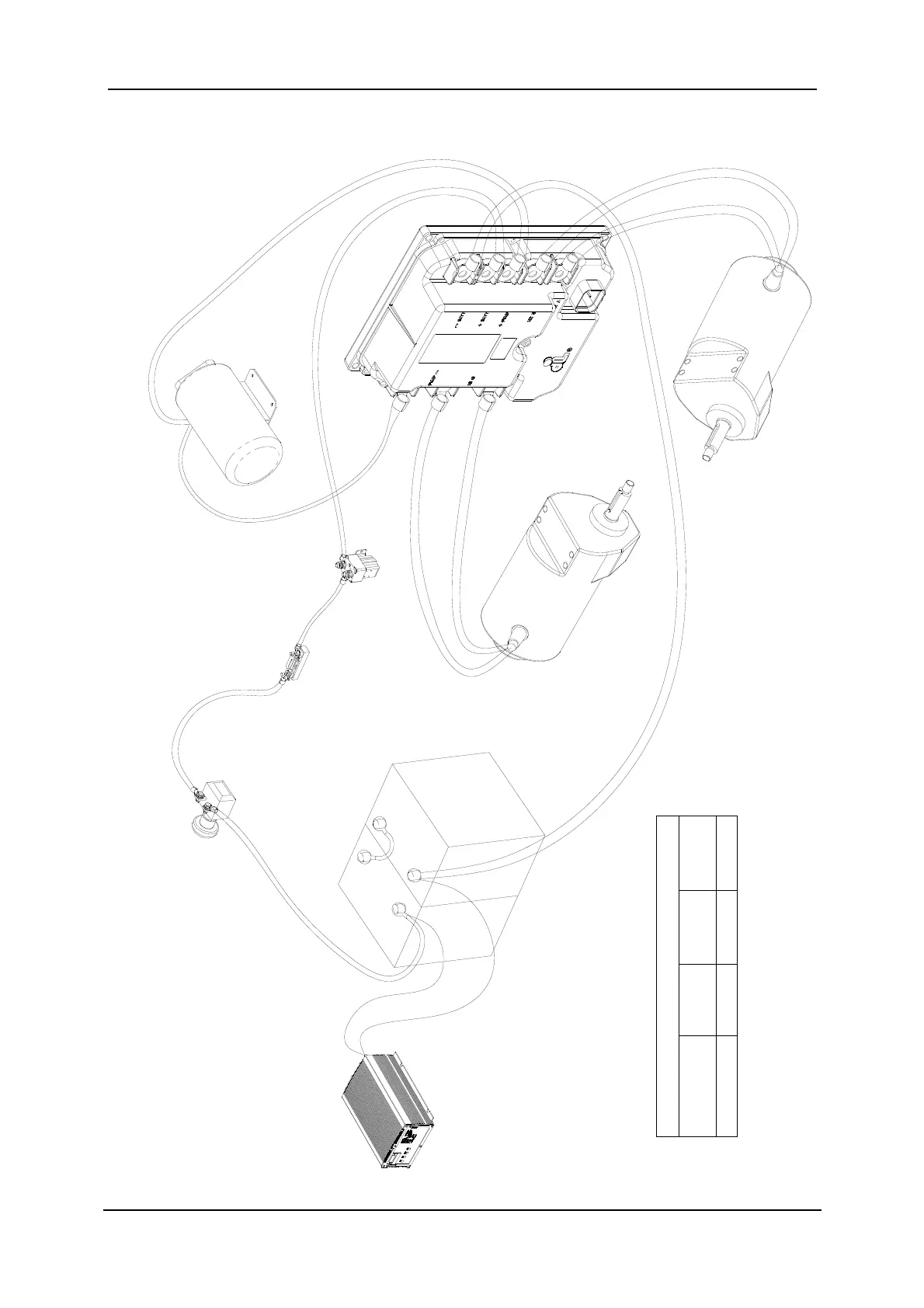

JCPT0607DCS 线束图-主回路 Harness- M ain Circuit
保险丝 Fuse
150A
直流接触器
驱动控制器
驱动电机
驱动电机
DC Contactor
Drive Motor
电机
Pump M otor
Drive Motor
Drive C ontroller
输入(Input)：100- 240VAC
输出(Output)：24VDC 11A 300W
电源开关
Power Switch
蓄电池
B attery
充电器 C harger
+
+
-
-
