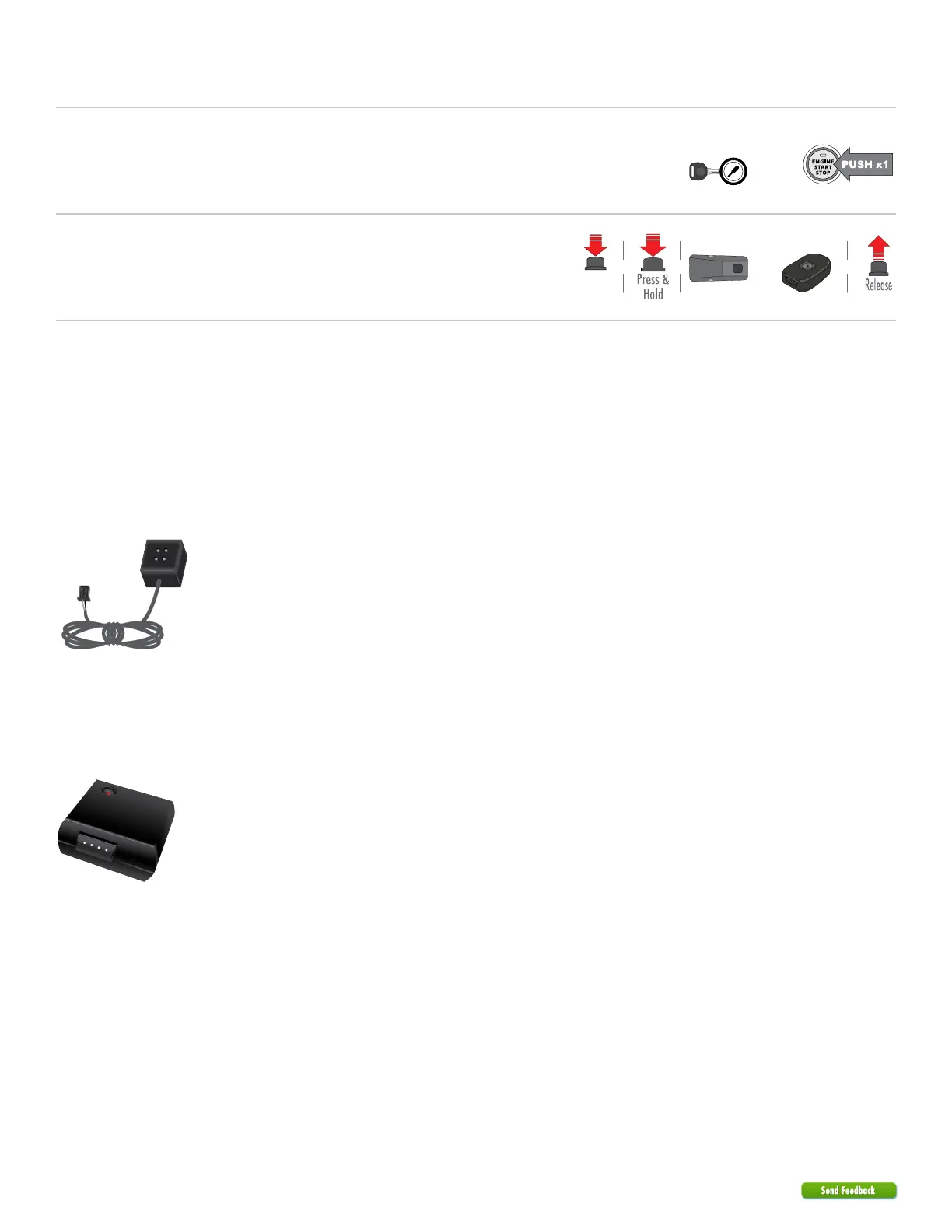

15
DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Focus 2009-2011
RX Yellow/Orange 4 Data (PATS) connector. Black 4 A
TX Violet/Gray 3 Data (PATS) connector. Black 4 A
12V Brown/Red 4 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Ignition White/Orange or Brown/
Yellow
1 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
Parking Lights Violet/White 6 (+) SJB (Smart Junction Box) under drivers
dash.
Gray 13 H
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 14 Cut SJB under drivers dash. Gray 26 G
Trunk/Hatch Release Brown/Yellow 20 (-) SJB under drivers dash. Gray 26 G
Lock Gray/Yellow 17 (-) SJB under drivers dash. Gray 26 G
Unlock Violet/Gray 4 (-) SJB under drivers dash. Gray 26 G
Tach Green/Blue, Gray/Yellow,
Violet/Gray, Yellow/
Orange
1 (AC) Any fuel injector. Black 2 N/A
Ford Fusion 2010-2012
RX Yellow/Orange 4 Data (PATS) connector. Black 4 A
TX Violet/Gray 3 Data (PATS) connector. Black 4 A
12V Brown/Red or Blue/Red 4 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Ignition White/Orange 1 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
Parking Lights Violet/White 6 (+) Fuse/SJB (Smart Junction Box) under
drivers dash.
Gray 13 H
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 14 Cut Fuse/SJB under drivers dash. Gray 26 G
Trunk/Hatch Release Brown/Yellow 20 (-) Fuse/SJB under drivers dash. Gray 26 G
Lock Gray/Yellow or Blue/Green 17 (-) Fuse/SJB under drivers dash. Gray 26 G
Unlock Violet/Gray or Yellow/
Violet
4 (-) Fuse/SJB under drivers dash. Gray 26 G
Tach Green/Blue, Gray/Yellow,
Violet/Gray, Yellow/
Orange, Brown, Green/
White, Gray/Brown or
Violet/Orange
1 (AC) Any fuel injector. N/A 2 N/A
