Directed DIRECTWIRE DIRECTECHS 933.TL14

9
933.TL14 1.02.198.9 2023 Toyota Camry
©2023 VOXX•DEI LLC. All rights reserved.

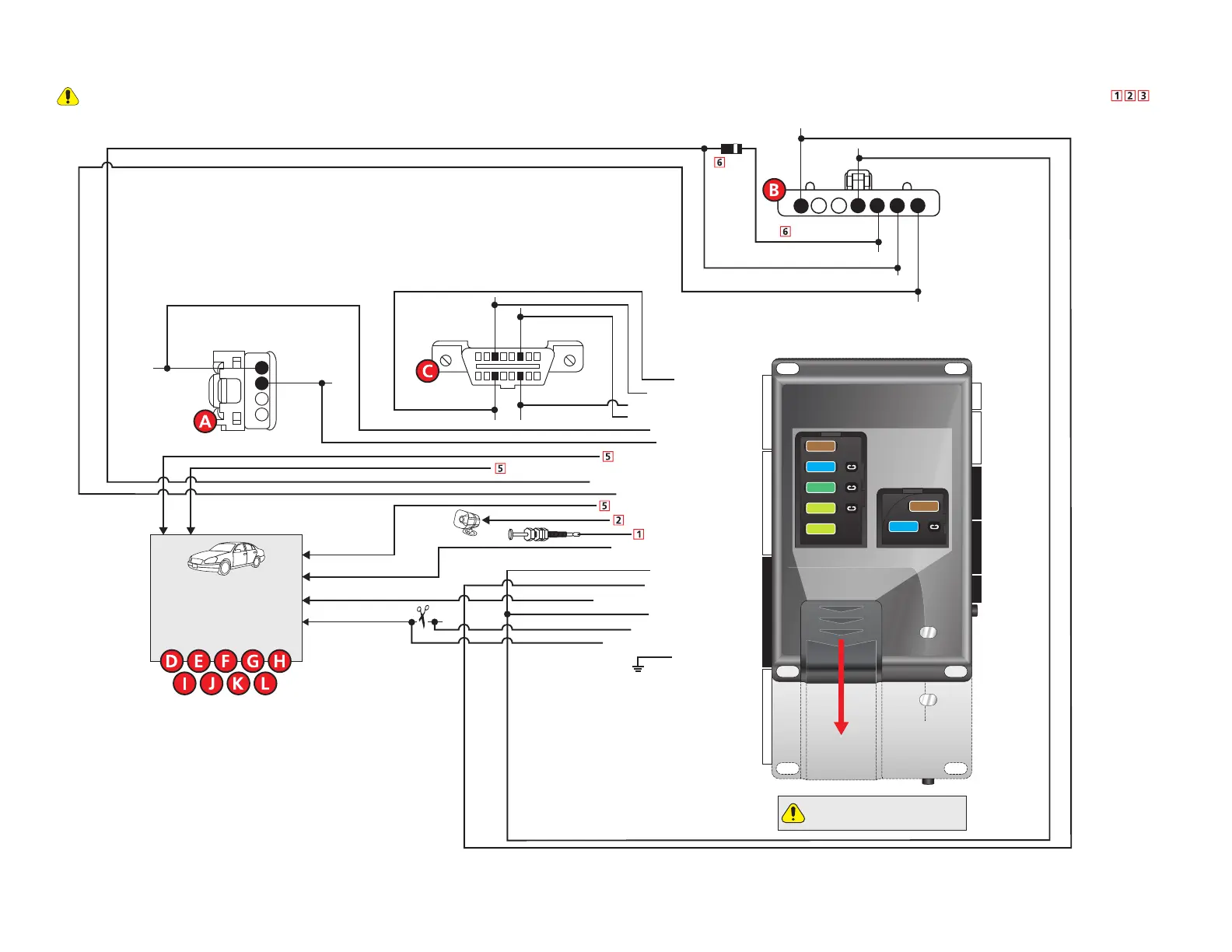

Vehicle connections
The connection information listed below is specific to the 2023 Toyota Camry. Refer to “Pre-installation and application warnings” for a list of important notes.
Data harness, 8-pin white connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H1/1 Tan (Data) HS CAN Low Body ECU on dash fuse box, black 30 pin plug, pin 4 Data White
Mandatory
H1/2 Tan/Black (Data) HS CAN High Body ECU on dash fuse box, black 30 pin plug, pin 5 Data Tan
Mandatory
H1/3 Orange/Brown (Data) HS CAN Low No Connection
H1/4 Orange/Green (Data) HS CAN High No Connection
H1/5 Lt. Green No Connection No Connection
H1/6 Violet/Brown No Connection No Connection
H1/7 Orange/Black (Data) RDA Body ECU on dash fuse box, black 21 pin plug, pin 10 Data Red
Mandatory
H1/8 Yellow/Black (Data) SIL Data OBD-Data Link Connector, white 16 pin plug, pin 7 Data Blue
Remote Start
Only
Analog input/output harness, 22-pin white connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/1 Lt. Green/Black (-) Pk Light Output Headlight Switch, white 40 pin plug, pin 3 - Green or Blue/Black
Mandatory
H2/2 Blue/White
(-) Ground When Armed (GWA) Output [3]
Starter:
Ignition Switch, white 8 pin plug, pin 5
Ignition:
Ignition Switch, white 8 pin plug, pin 8
Must use a relay.
Must use a 1A 1N4002 or larger diode.
+
+
Lavender/Violet
Lavender/Red
Security Only
H2/3 Dk. Green/Black (-) Lock Output No Connection
H2/4 Red/White (-) Trunk Output No Connection
H2/5 Brown/Black (-) Horn Output Dash Fuse Box, white 32 pin plug (3C), pin 27 - White
Optional
H2/6 Brown/White (-) Accessory Output No Connection
H2/7 White (+) (+) Accessory Output Ignition Switch, white 8 pin plug, pin 6 + Lt. Green
Remote Start
Only
H2/8 Violet/Black (+) Ignition Output Ignition Switch, white 8 pin plug, pin 8 + Lavender/Red
Remote Start
Only
H2/9 Dk. Blue/Black (-) Unlock Output No Connection
H2/10 Lt. Blue/Black (-) Key Wrap Output No Connection
H2/11 Brown/Red
(+) Siren Output [2]
The siren is only required when enabling the security features during
module flashing.
Security Only
H2/12 Pink (+) Ignition Sense Input Ignition Switch, white 8 pin plug, pin 8 + Lavender/Red
Mandatory
H2/13 Violet No Connection No Connection
H2/14 Brown No Connection No Connection
H2/15 White/Blue No Connection No Connection
H2/16 Red/Blue No Connection No Connection
