12

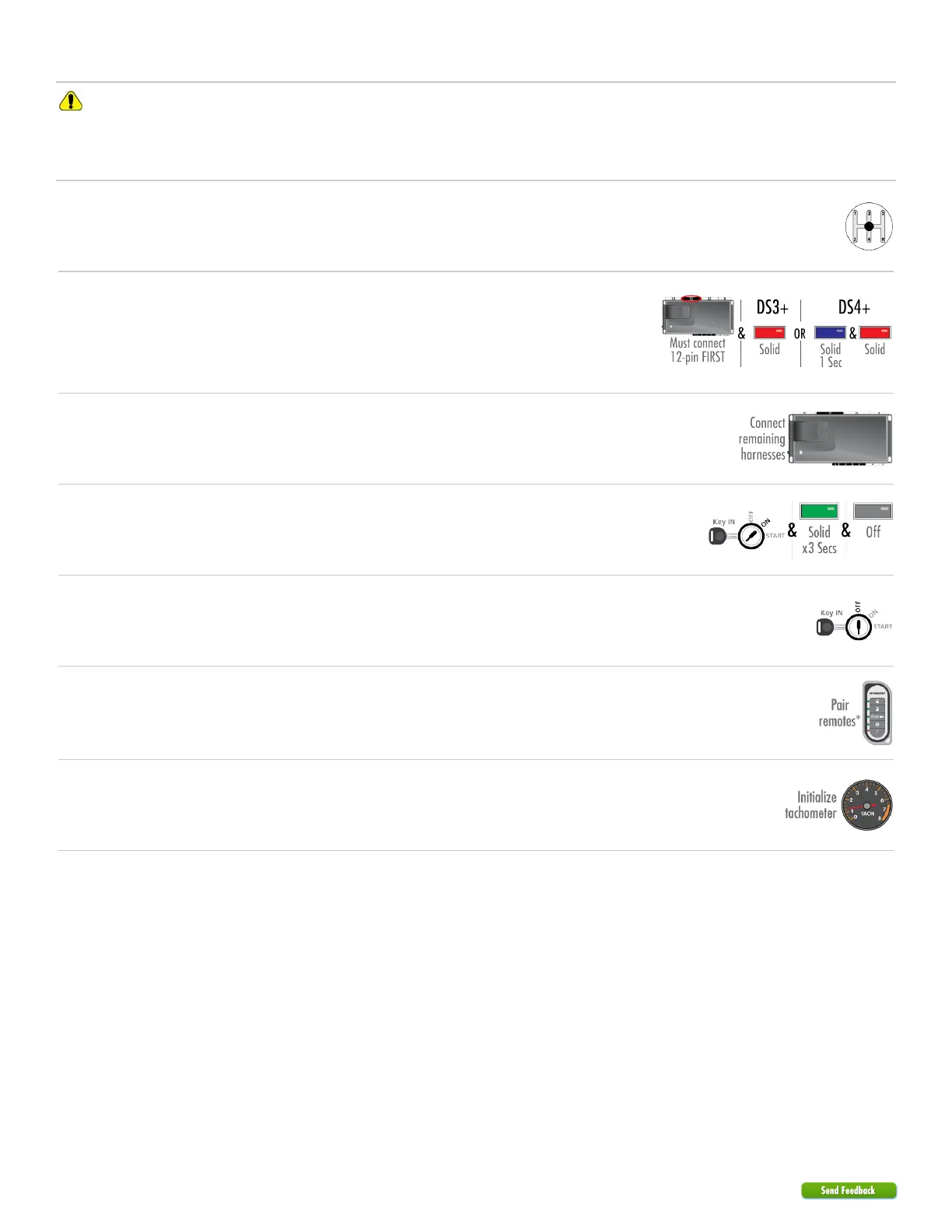

DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford F150 2011-2014
RX Violet/Gray 4 Data (PATS) connector. Black 4 A
TX Yellow/Orange 3 Data (PATS) connector. Black 4 A
12V Green/Red 4 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Ignition White/Orange 1 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
Parking Lights Yellow/Blue 6 (+) BCM in passenger kick panel. Gray 10 J
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 9 Cut BCM (Body Control Module) in passenger
kick panel.
Black 26 I
Lock Blue/Green 6 (-) BCM in passenger kick panel. Black 26 I
Unlock Yellow/Violet 8 (-) BCM in passenger kick panel. Black 26 I
Tach Green/Blue, Gray/Yellow,
Violet/Gray, Yellow/
Orange, Brown, Green/
White, Gray/Brown or
Violet/Orange
1 (AC) Any fuel injector. Gray 2 N/A
Ford F250 2011-2016
RX Yellow/Orange 4 Data (PATS) connector. Black 4 A
TX Violet/Gray 3 Data (PATS) connector. Black 4 A
12V Blue/Red or Green/Red 4 (+) Ignition switch. Black 7 B
Ignition White/Orange 1 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
Parking Lights Yellow/Blue 6 (+) SJB (Smart Junction Box) passenger kick
panel.
Gray 10 J
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 9 Cut SJB passenger kick panel. Black 26 I
Lock Blue/Green 6 (-) SJB passenger kick panel. Black 26 I
Unlock Yellow/Violet 8 (-) SJB passenger kick panel. Black 26 I
Tach Blue N/A (AC) Customer Access Harness above driver
kick, taped to wiring harness. On models
without the Customer Access Harness, go
to any fuel injector and use the wire that
is not blue (gasoline), or use the camshaft
position sensor, which is white/green
at the Powertrain Control Module on
passenger side of engine, middle, black
98 pin plug, pin 32 (diesel).
Gray 2 N/A
