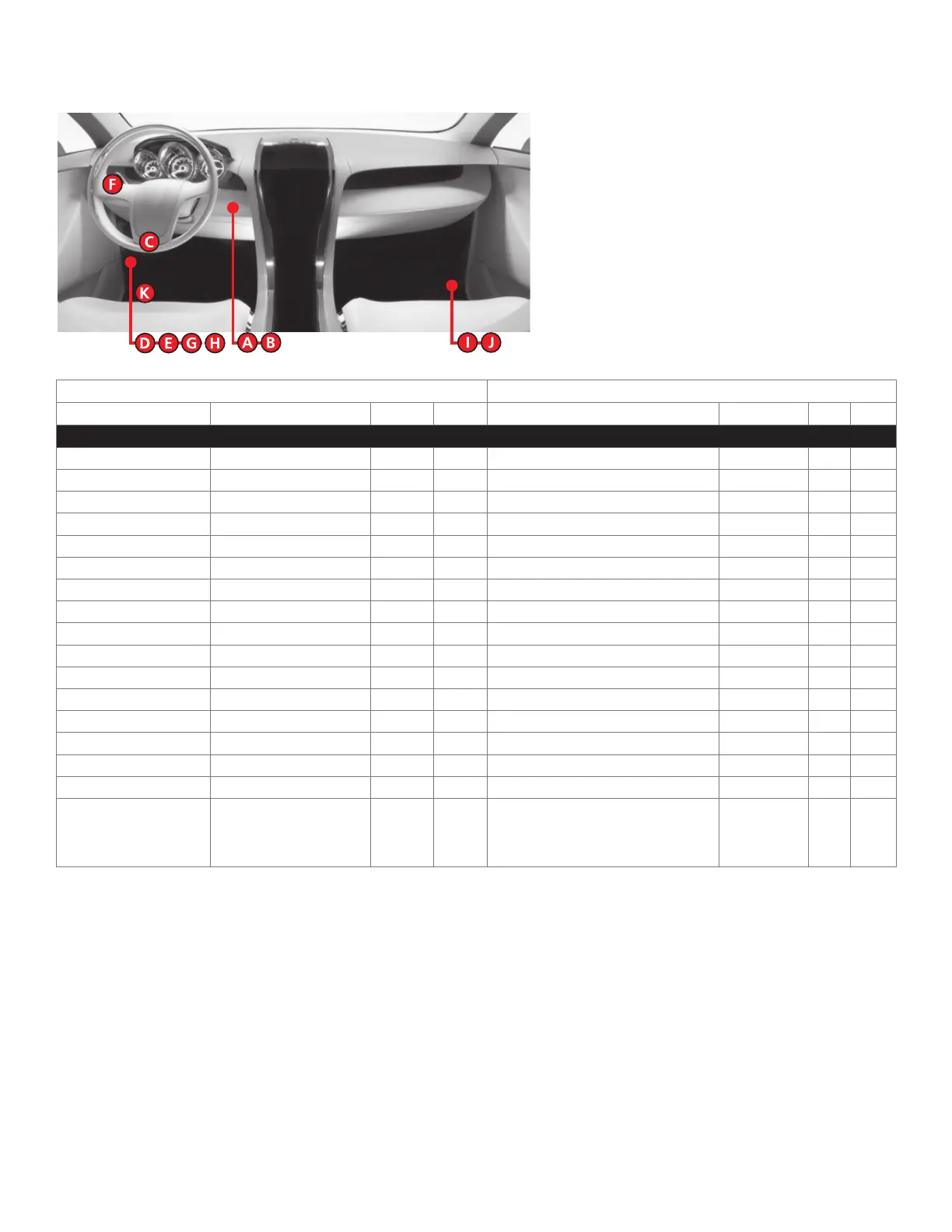

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Edge 2011-2014
RX Violet/Gray 4 Data (PATS) connector. Black 4 A
TX Yellow/Orange 3 Data (PATS) connector. Black 4 A
Power Liftgate Gray/Yellow 6 (-) Power liftgate switch. Black 6 F
12V Green/Red 4 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Ignition White/Orange 1 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
Parking Lights Yellow/Blue 6 (+) BCM in drivers kick panel. Gray 10 E
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 9 Cut BCM in drivers kick panel. Black 26 D
Lock Blue/Green 6 (-) BCM in drivers kick panel. Black 26 D
Unlock Yellow/Violet 8 (-) BCM in drivers kick panel. Black 26 D
Tach Green/Blue, Gray/Yellow,
Violet/Gray, Yellow/
Orange, Brown or Green/
White
1 (AC) Any fuel injector. Black 2 N/A
To Next Page
