15
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.

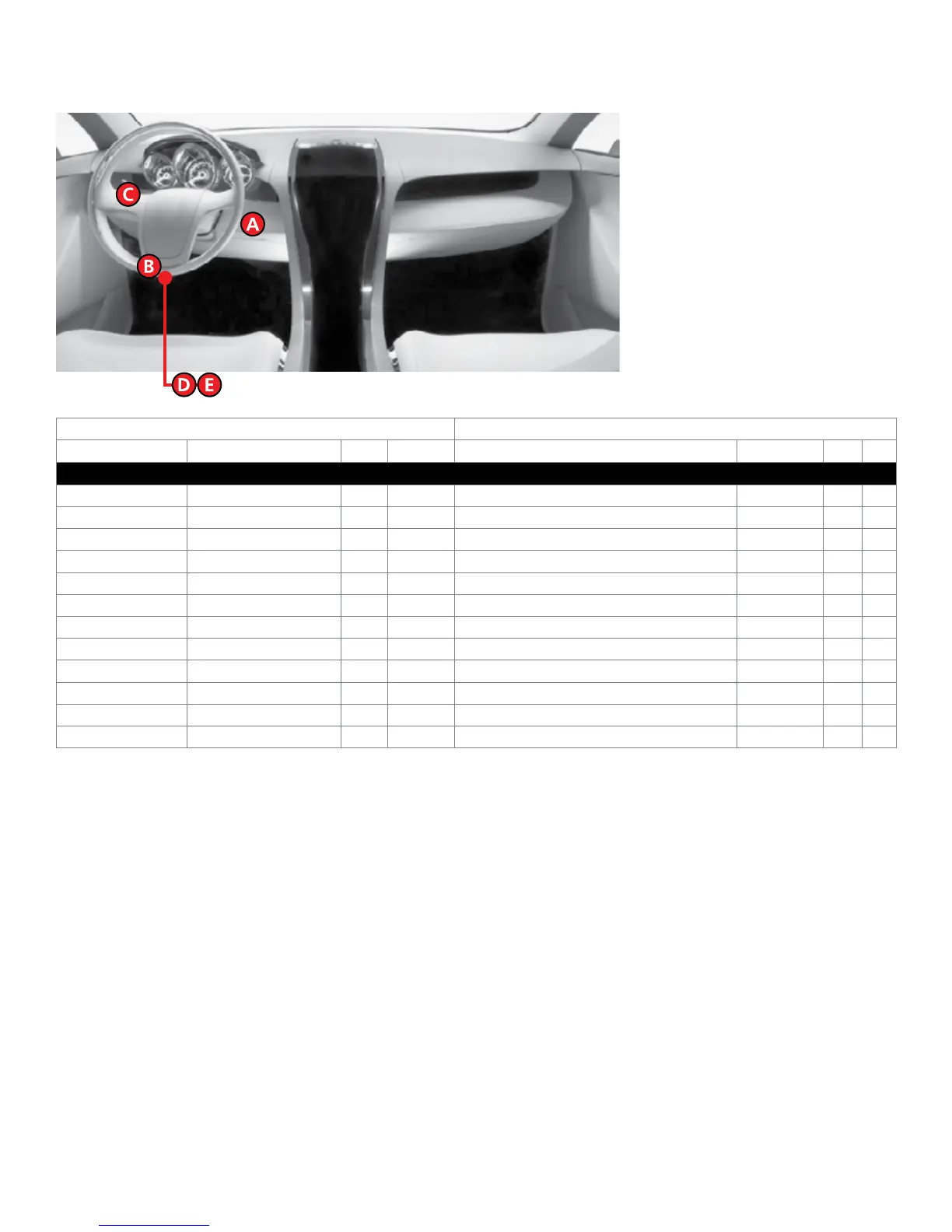

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Volkswagen Jetta 2011-2014
Starter Red/Black 4 (+) Ignition switch. Black 10 A
Ignition Black/Violet 8 (+) Ignition switch. Black 10 A
Accessory Black/Red 3 (+) Ignition switch. Black 10 A
HS CAN High Orange/Black 6 Data OBDII. Violet/Black 16 B
HS CAN Low Orange/Brown 14 Data OBDII. Violet/Black 16 B
Parking Light Gray/Red 14 (+) Headlight switch. Black 17 C
FT CAN High Orange/Green 20 Data VESCM connector B, under drivers dash. White 73 D
FT CAN Low Orange/Brown 21 Data VESCM connector B, under drivers dash. White 73 D
12V Red/White or Red/Yellow 68 (+) VESCM connector A, under drivers dash. Black 73 E
Brake Black/Red 39 (+) VESCM connector A, under drivers dash. Black 73 E
Doorlocks [4] Blue/Red 24 MUX VESCM connector A, under drivers dash. Black 73 E
Trunk Release [4] Violet 23 (-) VESCM connector A, under drivers dash. Black 73 E
