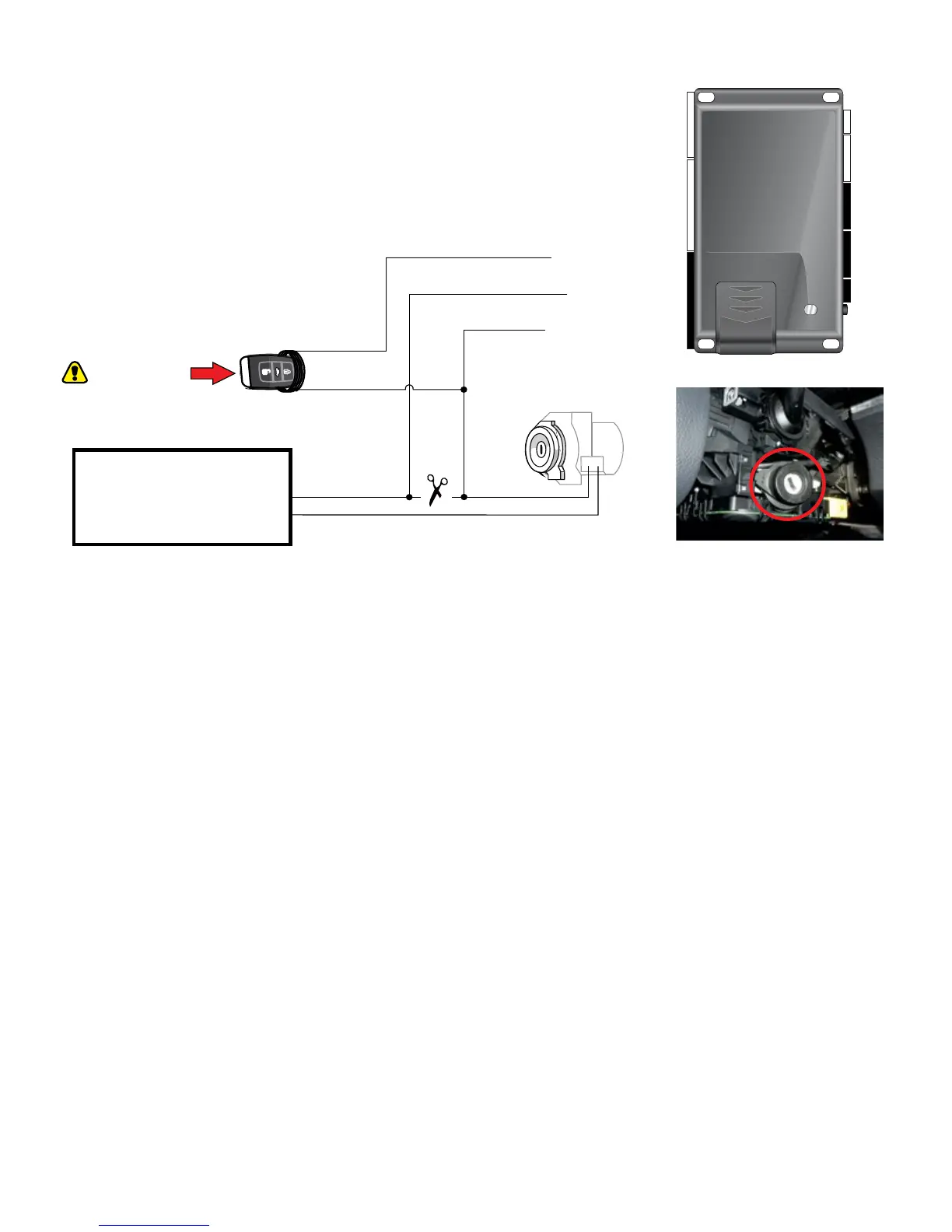

Immobilizer ECU
Remove battery
from OEM
Remote Control
OEM
Immobilizer
Receiver
4-6 loops
- Make 4-6 loops and place them around the front of the plastic body of the vehicle's coded key as shown above.
- Test and secure mounted loops before reassembling the vehicle.
- Make connections to the OEM Immobilizer receiver as shown above.
* When possible use valet key for key wrap, if blade key is used, battery must be removed.
COM Relay 2: Lt.Green: 8
NC Relay 2: Lt.Green/White: 9
