Directed DS4 Plus User Manual

22
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.
Type 7

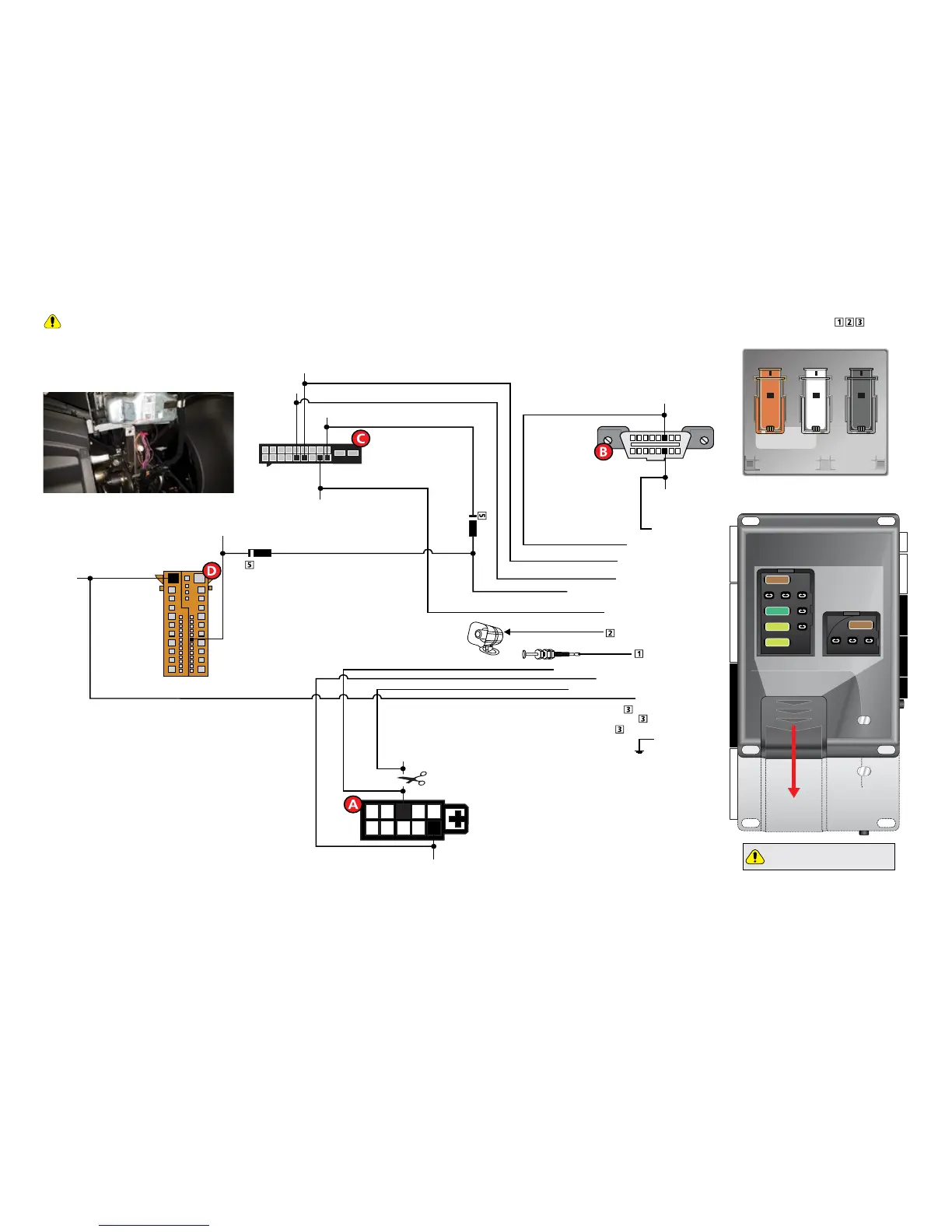

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram ( ).
16
8
9
1
Key Wrap: Lt. Green: 8
Key Wrap: Lt. Green/White: 9
(-) Ground: Black: 10
HS CAN 1 Low: Tan : 1
(+) Starter / Brake Activation Output: White: 7
(+) Ignition Output: Violet/Black: 8
HS CAN 1 High: Tan/Black: 2
FT CAN High: Orange/Green: 4
FT CAN Low: Orange/Brown: 3
Siren
Hood Pin
(+) 12V Input: Red: 6 & 12
Key Wrap: Lt.Green/Red: 7
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
HS CAN High: Orange/Black, pin 6
HS CAN Low: Orange/Brown, pin 14
Parking Lights Interrupt:
Red/White, pin 8
(+) Parking Lights: White/Black, pin 1
1
2
4
5
6
7
9
10
3
8
CUT
12
29
28
42 25 1
52 41 24 11
Brown VESCM connector C
(+) Brake: Black/Red, pin 17
(+) 12V:
Red/Yellow, pin 42
[5] Diode 1A
[5] Diode 1A
Headlight switch
(black conn. at
light switch)
17
10
1
20
FT CAN Low: Orange/Brown, pin 15
(+) Ignition: Black, pin 17
(+) Starter: Red/Black or Red/Brown, pin 18
FT CAN High: Orange/Green, pin 14
Steering column
module
(behind steering
column trim)
B
C
A
VESCM - Driver side under dashboard
Parking Light Interrupt (conn. side): Blue/White: 1
(+) Parking Light Output: Blue/Red: 2
Parking Light Interrupt (vehicle side): Blue: 3
Diagnostic
Connector
OBDII
22 810 12
4 2442
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
It is important to check that the
fuses are positioned correctly.
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
