23
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.

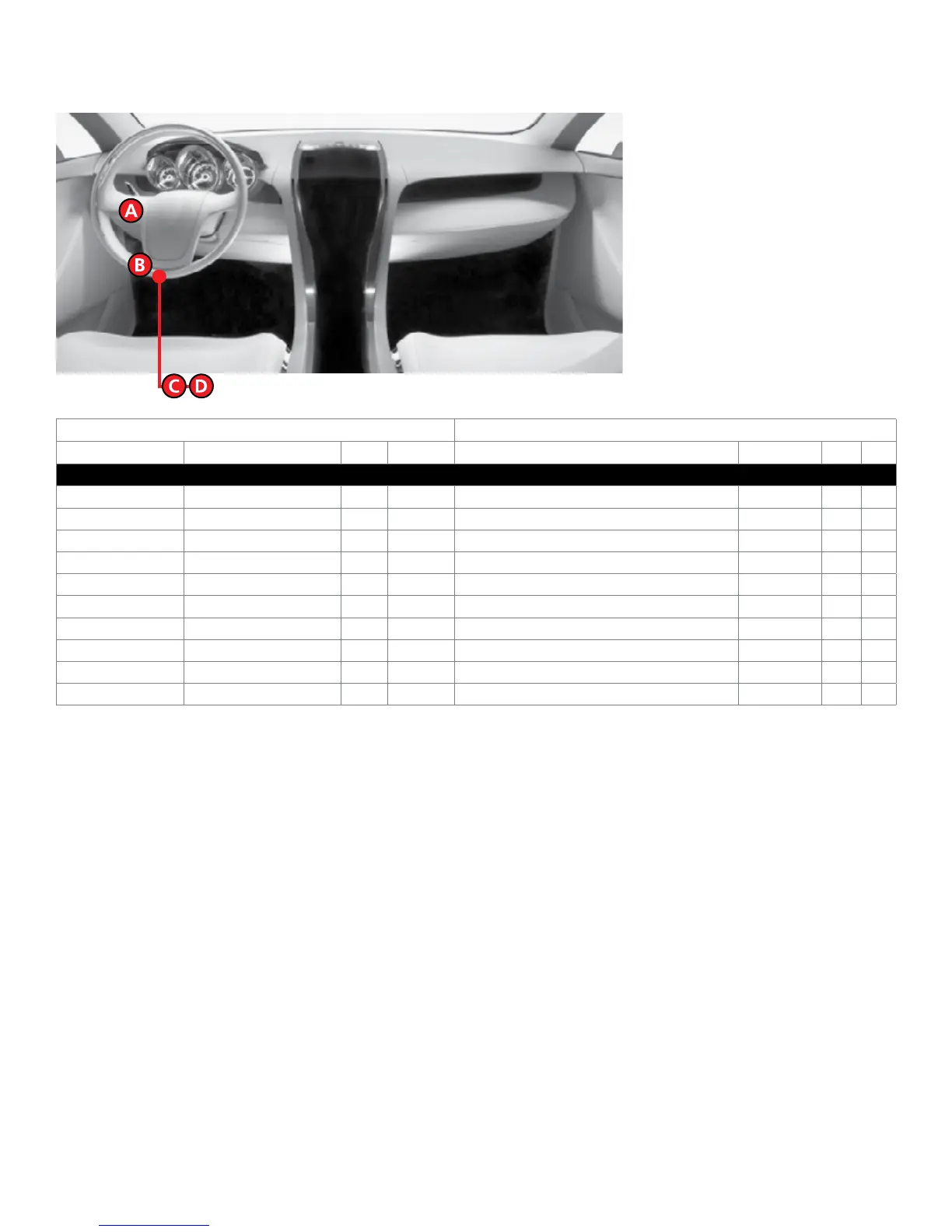

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Volkswagen Jetta SportWagen 2010
Parking Light White/Black 1 (+) Headlight Switch. Black 10 A
Parking Light Interrupt Red/White 8 Cut Headlight Switch. Black 10 A
HS CAN High Orange/Black 6 Data OBDII. Violet/Black 16 B
HS CAN Low Orange/Brown 14 Data OBDII. Violet/Black 16 B
Starter Red/Black or Red/Brown 18 (+) Steering column module. Black 16 C
Ignition Black 17 (+) Steering column module. Black 16 C
FT CAN High Orange/Green 14 Data Steering column module. Black 16 C
FT CAN Low Orange/Brown 15 Data Steering column module. Black 16 C
12V Red /Yellow 42 (+) VESCM connector C, under drivers dash. Brown 52 D
Brake Black/Red 17 (+) VESCM connector C, under drivers dash. Brown 52 D
