33
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.

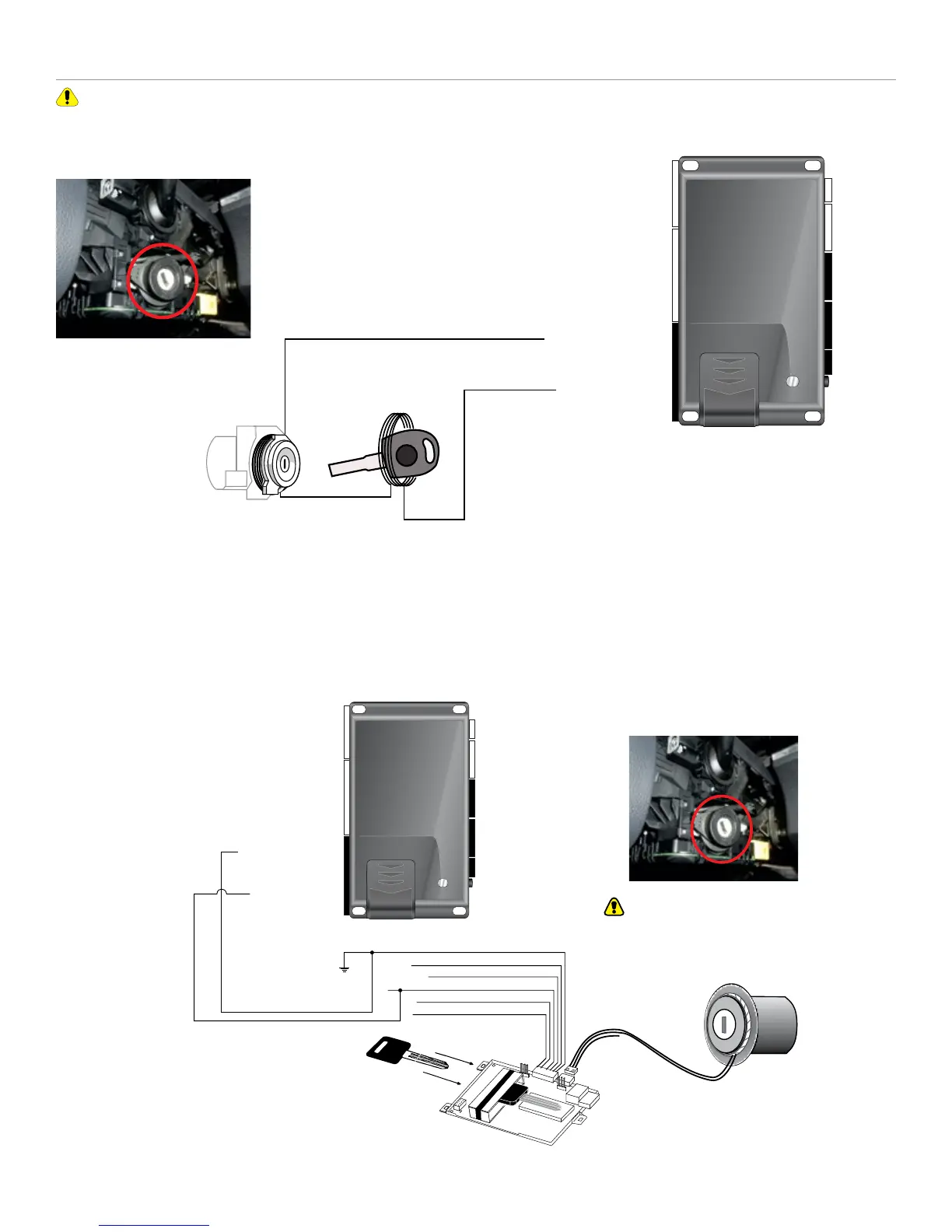

Immobilizer interface
For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from the models shown in
the illustrations).
Method 1: Key Wrap
- Make 4-6 loops and place them as close to the front of key port (OEM Immobilizer Receiver) as possible.
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
* When possible use valet key for key wrap, if blade key is used, battery must be removed.
4-6 loops
4-6 loops
OEM
Immobilizer
Receiver
*
COM Relay 2: Lt.Green 8
NO Relay 2: Lt.Green/Red: 7
Method 2: Immobilizer interface with 556U (Regular Key)
556U or 556UW is sold SEPARATELY.
Move the 556U loop as close to the
front of ignition cylinder (OEM
Immobilizer Receiver) as possible.
Test and secure mounted loop
before reassembling the vehicle.
4
8
(+) 12V
OEM
Immobilizer
Receiver
IMPORTANT!: Not all OEM remotes can be inserted in 556U
because of their size. Make sure the key will fit, otherwise it
is recommended to use a different method.
(-) Ground: Black, pin 1
N/A : Violet, pin 3
(-) GWR: Blue, pin4
N/A: Green, pin 5
N/A: Brown , pin 6
(+) 12V: Red, pin 2
COM Relay 2: Lt.Green 8
NO Relay 2: Lt.Green/Red: 7
