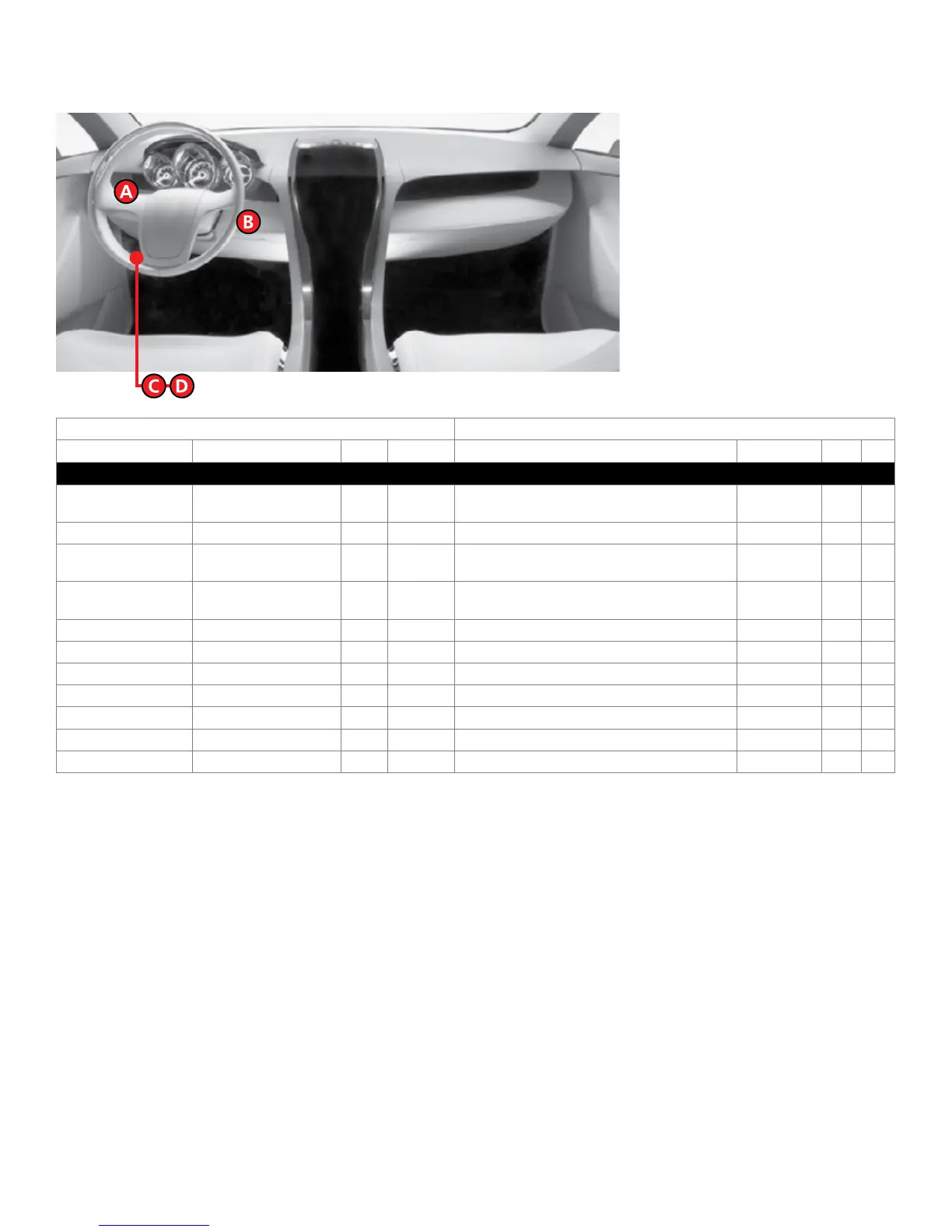

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Volkswagen Passat CC 2011-2016
Parking light
Gray/Yellow or Gray/
Green
3 (+) Headlight switch. Black 10 A
Parking light Interrupt Red/White or Red/Black 8 Cut Headlight switch. Black 10 A
Starter
Red/Brown or Red/Gray
or Red/Yellow
6 (+) Ignition switch port. Black 16 B
Ignition
Red/Green or Violet/
Yellow
5 (+) Ignition switch port. Black 16 B
Keysense Green or Green/Blue 16 (+) Ignition switch port. Black 16 B
HS CAN High Orange/Black 6 Data OBDII. Violet/Black 16 C
HS CAN Low Orange/Brown 14 Data OBDII. Violet/Black 16 C
12V Red/Yellow 42 (+) VESCM connector C, under drivers dash. Brown 52 D
FT CAN High Orange/Green 15 Data VESCM connector C, under drivers dash. Brown 52 D
FT CAN Low Orange/Brown 16 Data VESCM connector C, under drivers dash. Brown 52 D
Brake Black/Red 17 (+) VESCM connector C, under drivers dash. Brown 52 D
