Directed DS4 Plus User Manual

17
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.

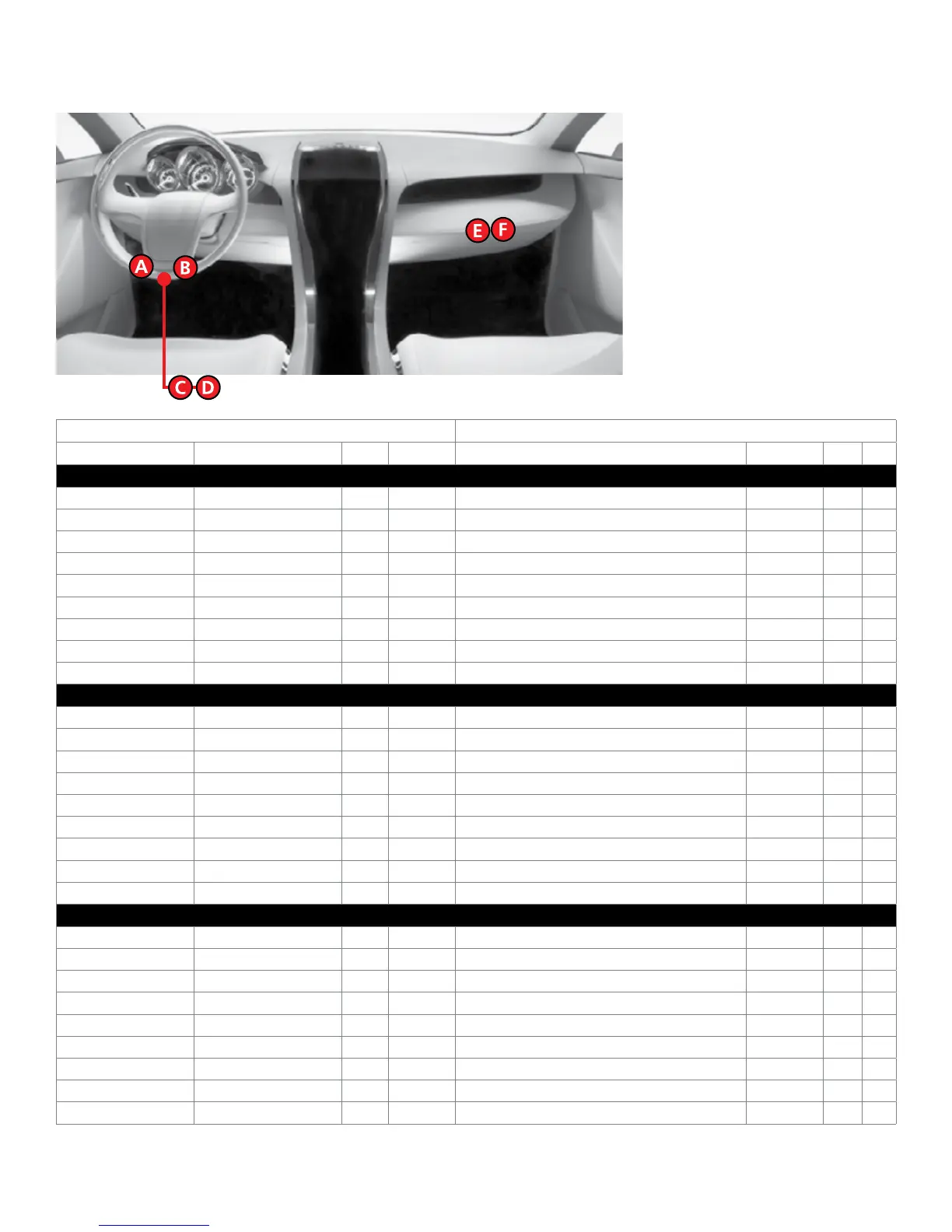

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Audi A3 2009-2013
HS CAN High Orange/Black 6 Data OBDII. Violet/Black 16 A
HS CAN Low Orange/Brown 14 Data OBDII. Violet/Black 16 A
Starter Red/Black 18 (+) Steering column module behind steering column trim. Black 20 B
Ignition Black/Green 17 (+) Steering column module behind steering column trim. Black 20 B
FT CAN High Orange/Green 14 Data Steering column module behind steering column trim. Black 20 B
FT CAN Low Orange/Brown 15 Data Steering column module behind steering column trim. Black 20 B
12V Red/Blue 42 (+) VESCM, connector C, under drivers dash. Brown 52 C
Brake Black/Yellow 17 (+) VESCM, connector C, under drivers dash. Brown 52 C
Parking Lights Gray/Yellow 19 (-) VESCM, connector A, under drivers dash. Black 52 D
Audi R8 2010-2014
HS CAN High Orange/Black 6 Data OBDII. Violet/Black 16 A
HS CAN Low Orange/Brown 14 Data OBDII. Violet/Black 16 A
Starter Black/Gray 18 (+) Steering column module behind steering column trim. Black 20 B
Ignition Black/Violet 17 (+) Steering column module behind steering column trim. Black 20 B
FT CAN High Orange/Green 14 Data Steering column module behind steering column trim. Black 20 B
FT CAN Low Orange/Brown 15 Data Steering column module behind steering column trim. Black 20 B
12V Red/Violet 42 (+) VESCM, connector C, below glove box. Brown 52 E
Brake Red/Black 17 (+) VESCM, connector C, below glove box. Brown 52 E
Parking Lights Black/White 19 (-) VESCM, connector A, below glove box. Black 52 F
Audi TT 2010-2015
HS CAN High Orange/Black 6 Data OBDII. Violet/Black 16 A
HS CAN Low Orange/Brown 14 Data OBDII. Violet/Black 16 A
Starter Red/Black 18 (+) Steering column module behind steering column trim. Black 20 B
Ignition Black/White 17 (+) Steering column module behind steering column trim. Black 20 B
FT CAN High Orange/Green 14 Data Steering column module behind steering column trim. Black 20 B
FT CAN Low Orange/Brown 15 Data Steering column module behind steering column trim. Black 20 B
12V Red/Violet 42 (+) VESCM, connector C, under drivers dash. Brown 52 C
Brake Black/Yellow 17 (+) VESCM, connector C, under drivers dash. Brown 52 C
Parking Lights Gray/Yellow 19 (-) VESCM, connector A, under drivers dash. Black 52 D
