Directed DS4 Plus User Manual

25
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.

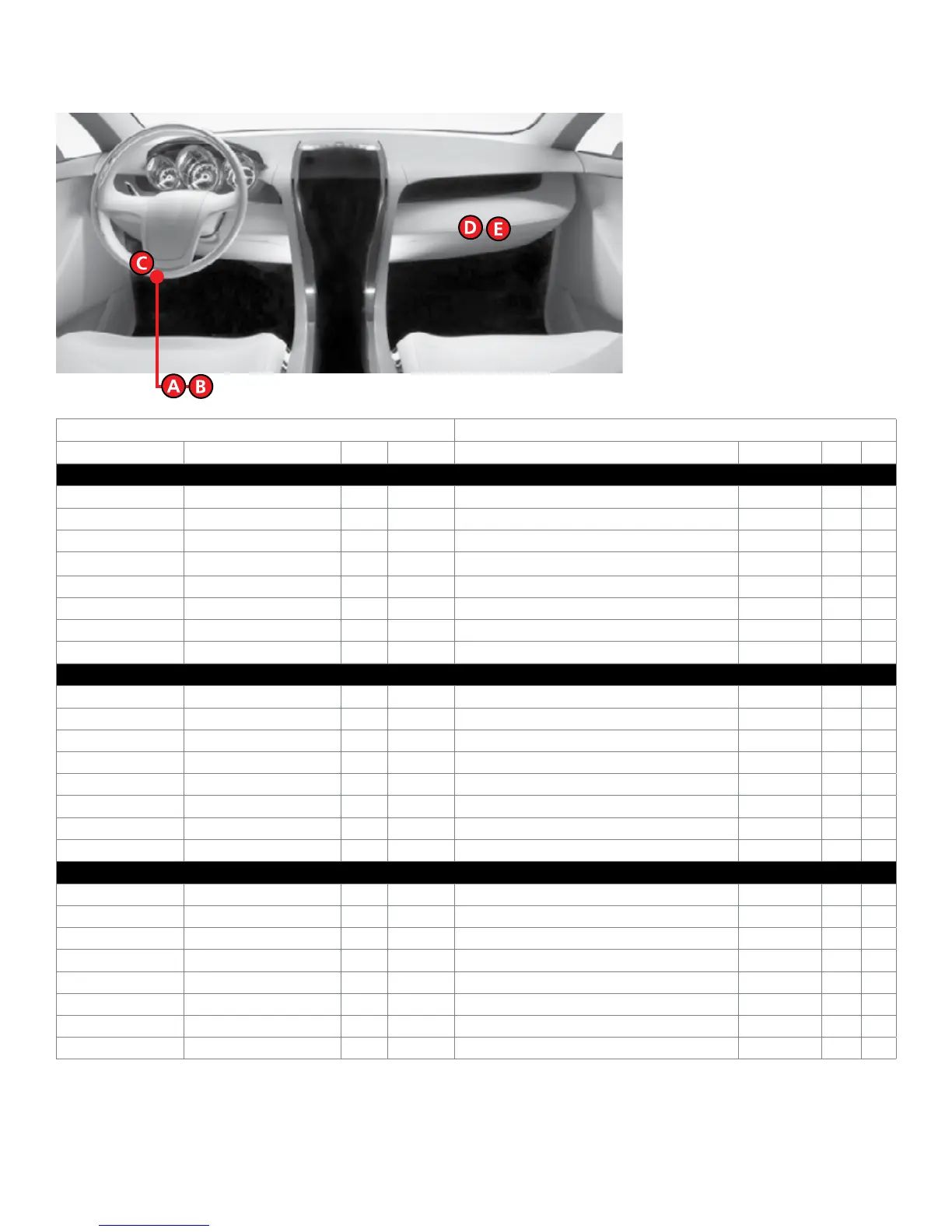

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Audi A3 2004-2008
12V Red/Black or Black 1 (+) VESCM connector L, under drivers dash. Black 2 A
Starter Red/Black or Black 1 (+) VESCM connector G, under drivers dash. Black 12 B
Ignition Black or Black/Green 11 (+) VESCM connector G, under drivers dash. Black 12 B
FT CAN High Orange/Green 8 Data VESCM connector G, under drivers dash. Black 12 B
FT CAN Low Orange/Brown 7 Data VESCM connector G, under drivers dash. Black 12 B
Hazards Brown/Red 9 (-) VESCM connector G, under drivers dash. Black 15 B
HS CAN High Orange/Black 6 Data OBDII. Black 16 C
HS CAN Low Orange/Brown 14 Data OBDII. Black 16 C
Audi R8 2008-2009
12V Black/Blue 1 (+) VESCM connector L, below glove box. Black 2 D
Starter Red/Black or Black 1 (+) VESCM connector G, below glove box. Black 12 E
Ignition Black/Violet 11 (+) VESCM connector G, below glove box. Black 12 E
FT CAN High Orange/Green 8 Data VESCM connector G, below glove box. Black 12 E
FT CAN Low Orange/Brown 7 Data VESCM connector G, below glove box. Black 12 E
Hazards Blue/Red 9 (-) VESCM connector G, below glove box. Black 15 E
HS CAN High Orange/Black 6 Data OBDII. Black 16 C
HS CAN Low Orange/Brown 14 Data OBDII. Black 16 C
Audi TT 2006-2009
12V Red 1 (+) VESCM connector L, under drivers dash. Black 2 A
Starter Red/Black or Black 1 (+) VESCM connector G, under drivers dash. Black 12 B
Ignition Black/White 11 (+) VESCM connector G, under drivers dash. Black 12 B
FT CAN High Orange/Green 8 Data VESCM connector G, under drivers dash. Black 12 B
FT CAN Low Orange/Brown 7 Data VESCM connector G, under drivers dash. Black 12 B
Hazards Brown/Red 9 (-) VESCM connector G, under drivers dash. Black 15 B
HS CAN High Orange/Black 6 Data OBDII. Black 16 C
HS CAN Low Orange/Brown 14 Data OBDII. Black 16 C
