dIXEL
Manual de operar
e Xweb5000
Pag. 101
/
115
This
is

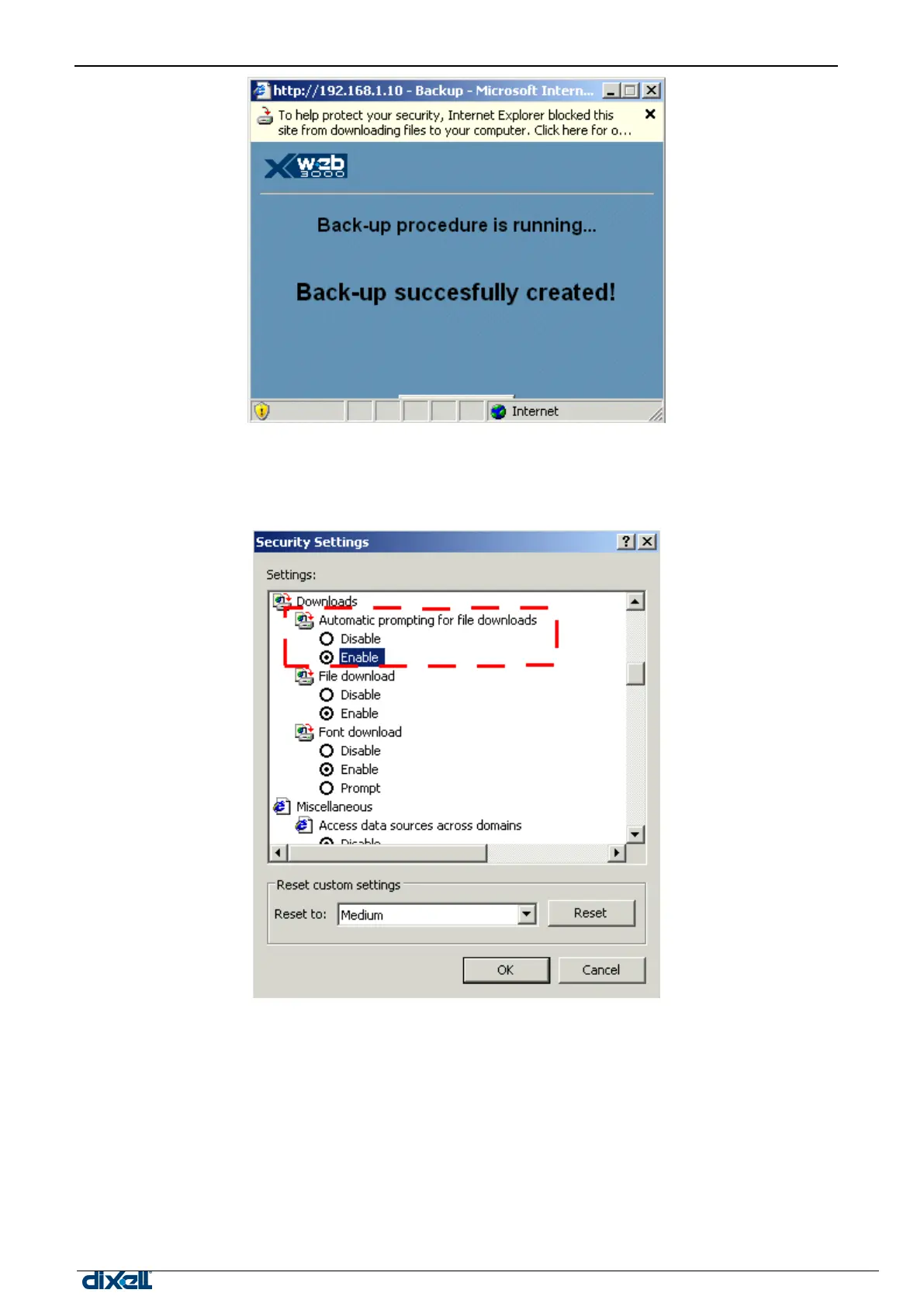

a security check made by In
ternet Explore ®,
fo
llow this step-
by
-s
tep guide to solve the problem
:
d)
In the drop-
down-menu Tools c
hoose
“Internet
option
s
…”
e)
Select Sec
urity tab and “Custom
level
”
.
f)
Use the followin
g windows as referenc
e.
100
102
Table of Contents
Table of Contents
4
Introduction
7
Caution: Read this Page Carefully to Ensure Safe Operation
8
Packaging
8
Minimum System Requirements for the Pc-Client
8
General Information
9
Installation
10
Hardware
10
Check the Rs485 before Starting
10
Each Instrument Is Provided with the Address Parameter Adr
10
The Ttl Output
11
Serial Address of the Instruments
11
Termination Resistor and Polarization Resistor
11
Compatible Instruments
12
Particular Device Setup
12
Xev Management
12
Local Connectivity
13
Local Connection with Monitor, Mouse and Keyboard
13
Local Connection through Personal Computer
13
Remote Connection from a Client Pc
14
Modem Connection ("Or Point to Point Connection")
14
Intranet / Ethernet Connection
14
Internet Connection
15
Configuration and Access
16
Microsoft Windows: Pop-Up Blocker and Cookies
16
Microsoft Windows: Cache Files
18
Third Part Software and Xweb
19
System Configuration
20
Language
20
Keyboard
20
System Identification
20
Date/Time
20
Network
21
Modem
22
Xweb Modem
22
Dialup
22
E-Mail Configuration
23
Sms Configuration
23
Printer
23
Xcenter
24
Auxiliary Relays
24
Rebooting
25
Using the Xweb
26
System Log-In
26
Home Page
26
System Access Information Area
27
Tooltip
27
Identification / Time
28
Server Property
28
Alarms
28
Configuration Menu
28
Device Find of the Instruments Connected to the "Rs485" Serial Line
29
Categories
29
Device Tipology
30
Recording Interval
31
Rtc Synchronization
31
Defrost Commands
32
Light Commands (for Instruments Provided with this Function)
32
Aux Command (for Instruments Provided with the Function)
33
Energy Saving Command (for Instruments Provided with the Function)
34
Device Stand-By Command
35
Calendar Function
36
Scheduler
41
Printing Events
42
System Events
43
Using the Scheduler
45
Alarms
46
Alarm Typology and Alarm Levels
46
Destination of the Alarm Messages
46
Alarm Levels
47
Alarm Typology Management
48
Queued Messages
49
Device Configuration
49
Select a Device
49
Assign the Device Name
50
Assign the Category to the Device "Device Category Setup
50
Assign the Alarm Typology
51
Define the Digital, Analogue Inputs and the Status
51
Clone Function
52
Permissions
53
Managing the Users
54
Devices Menu
55
Single View
55
Parameter and Single View
57
Run Time
57
Parameters
60
Layout Function
62
Layout Editor
62
Layout View
69
Global Commands Function
70
Global Edit
70
Global Commands
72
Performance Meter
72
Interpreting the %Cool
76
Supervising Menu
76
Supervising
76
The Project
76
Sdc, Els E Odc
76
Sdc
76
Odc
77
Els
78
The Complete Project
79
Ste Logical Block
80
Project Simulation
80
Local Test
80
Field Simulation
80
Runtime Mode
80
Projects Activation
80
Graphic Visualization
80
Compressor Rack Optimizer (C.r.o.)
81
Dew Point Control (Supervising Menu)
83
Data Menu
84
Display the Graphs with Xweb
84
Multi Graph
88
Display the Graphs with Local Pc
88
Alarm Menu
95
Hystorical Alarms
95
Printing Menu
97
Printings
97
Tools Menu
97
Selective Monitoring
97
Backup
99
Restore
102
Incremental Backup
102
Incremental Restore
103
System Messagges
103
Manual Test: E-Mail, Fax or Sms Sending
103
Sending Automatic Reports
104
Example of Report: E-Mail
104
Rs485 Test
105
Information Menu
105
System Release
105
System Update
106
Safety / and Allowed Use
108
Appendix
109
Appendix A: DEVICE ADVANCED SECTION
110
Appendix B: GLOSSARY
112
