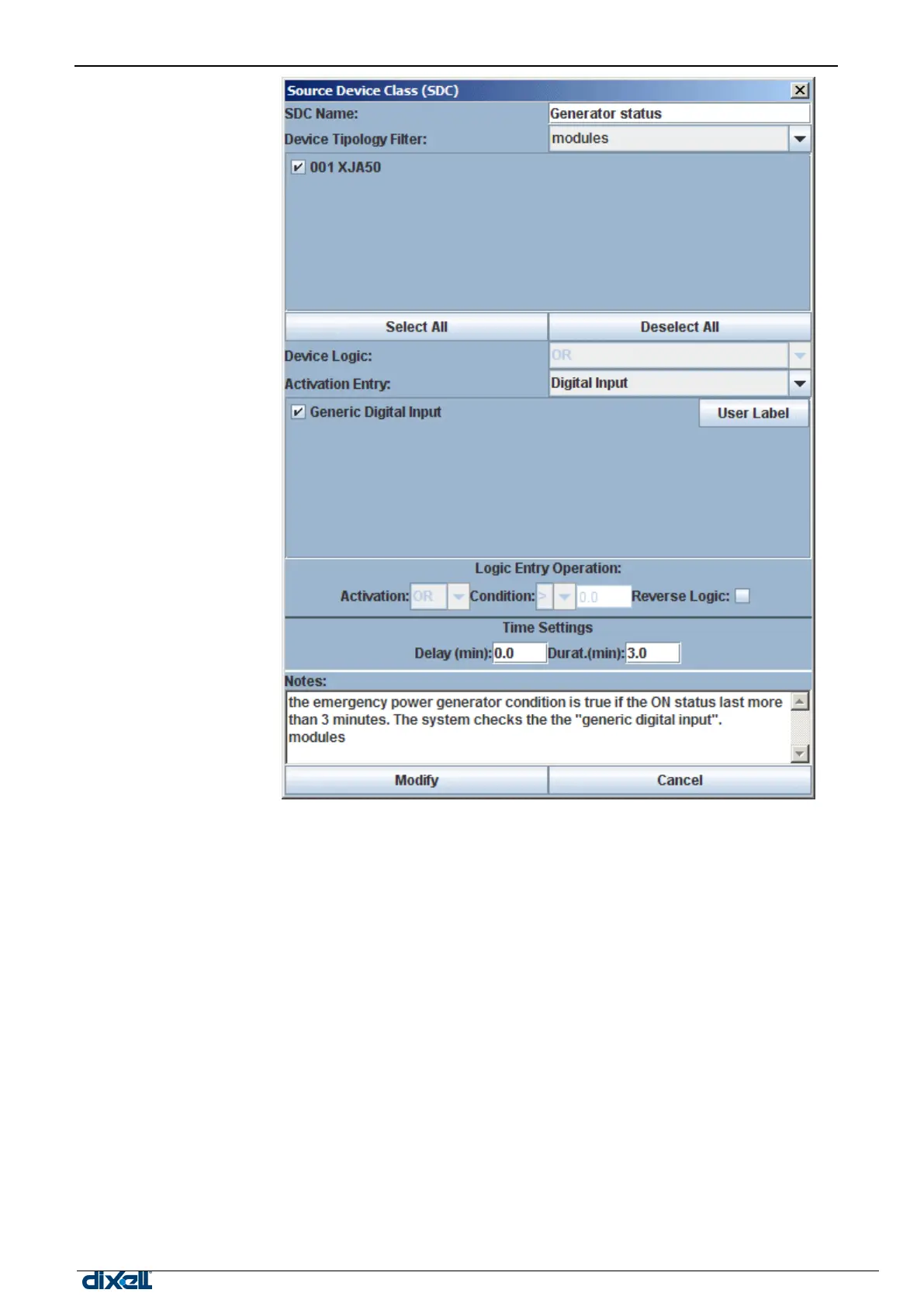

Insert an appropriate
name in “SDC name”.
Select from device
filtering typology, the
right devices that have
to be monitored. Move
to the voice “activation”
and, in our case, select
“Generic digital input”. If
there are more values
to monitor, these can be
tied up among them
with a logic AND (the
system computes first
all the AND entries,
then the result with all
the OR), or with a logic
OR (it is only necessary
one true value to give a
true condition). If it is a
check with numerical
values, set the condition
(major, minor, equal)
and the correspondent
threshold value.
Finally by means of
“Time settings”, set the
delay (minimum time
duration to consider the
input stable) and the
duration (minimum time
we force the output of
the SDC as active).
Press OK.
3.5.1.4 ODC
Select “Create” menu. An ODC will be created and it‟ll sends a set point reduced command. This command
increases the normal working setpoint of some degree and it‟ll be sent to 2 dairies cabinet.
