3.3.3 SCHEDULER
This is a powerful tool for managing category and repetitive commands. Now it is possible to send command
to a set of controllers and have a “visual” chart. This feature, for instance, is very useful to avoid command
time-overlap.

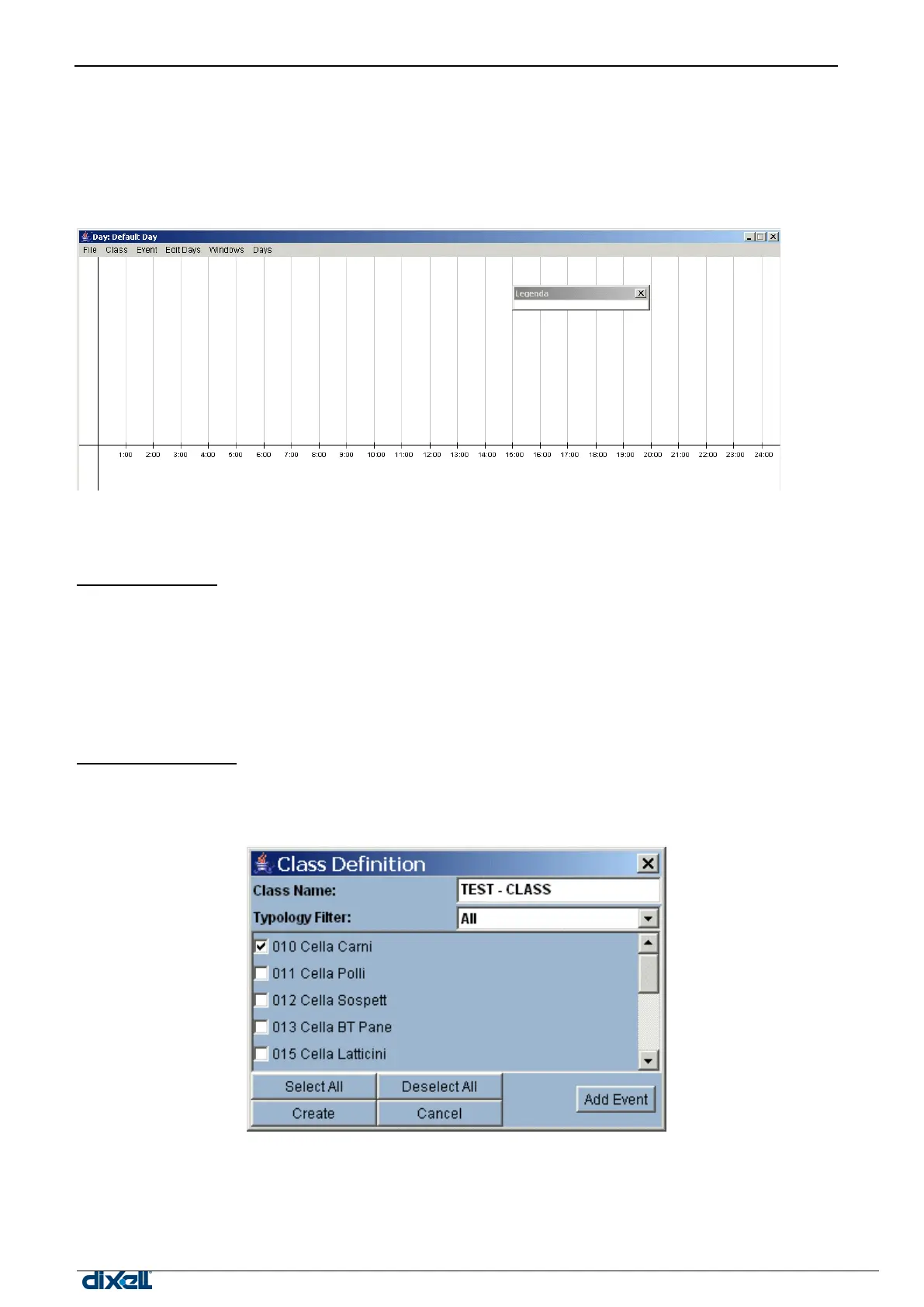

To start the “Scheduler”, use the drop-down menu “Configuration”, then “Scheduler”. This window will appear
(Java is required):
On the bottom there is a timeline (00:00 to 24:00), each hour is marked with a vertical line. This main window
is very useful to build a complete time table in a very easy and fast way.
File Submenu:
A) SAVE
This function allow you to save the changes done till now. Beware that the system can not go back to a
previous save, only the last one is available.
B) EXIT
Closes the Scheduler.
Class Submenu:
C) CREATE CLASS
By using this menu it is possible to create a new class.
Fill in “Class Name” field, then pick up a Category. Wait for the complete list of the controller. Check all the
controllers you want to send a command and push “Add Command event”.
