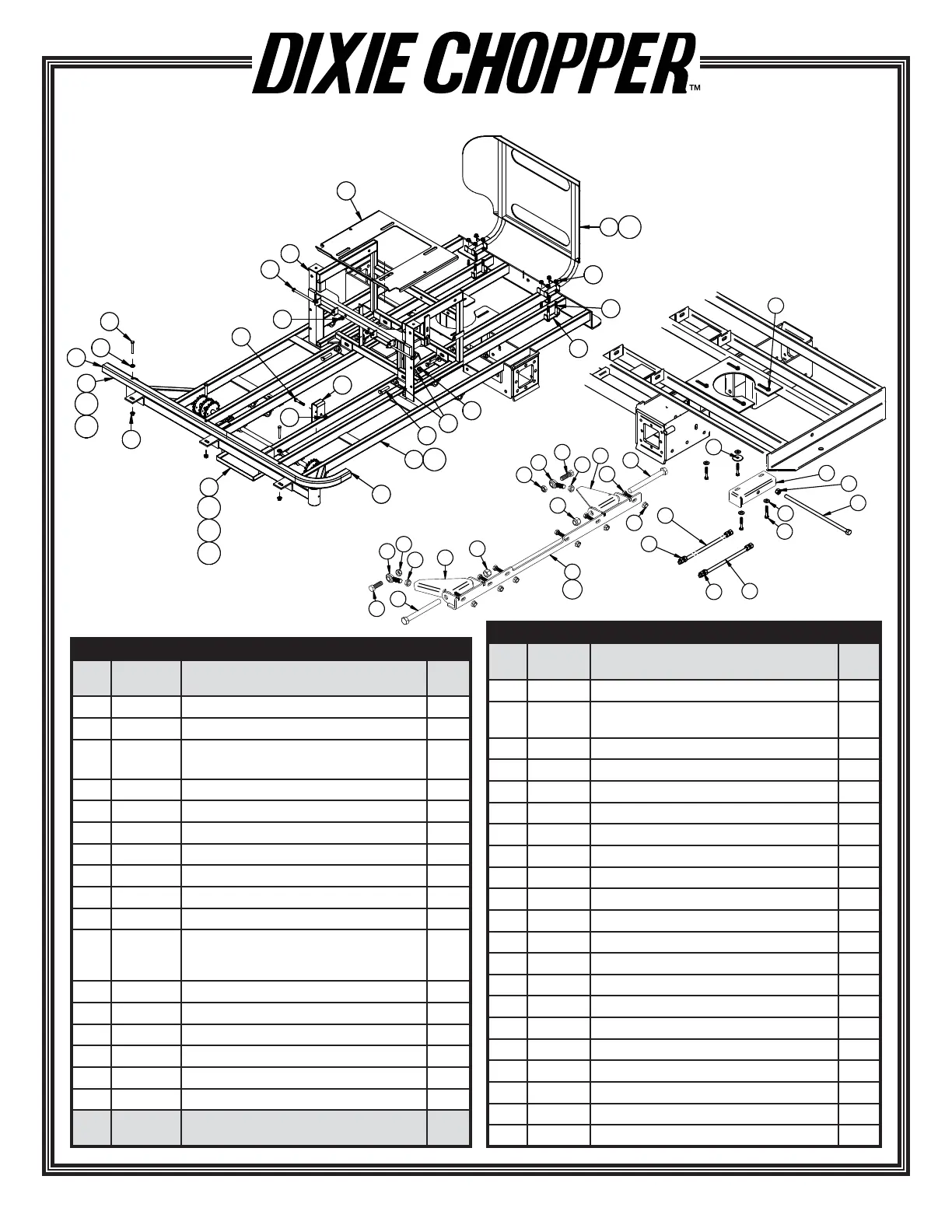

Dixie Chopper XCALIBER 2011 - Frame Assembly

8
20
23
24
27
30
23
30
23
32
31
21
35
36
35
36
28
28
16
16
29
17
17
29
26
25
22
33
34
21A
FRAME
REF PART# DESCRIPTION Qty
1
1A
100183
100192
Frame 74”
Frame 66”
1
1
2 B-140 Bolt - 3/8-16 X 3 HHCS Bolt 8
3 N-108 Nut - 3/8”-16 Whiz 8
4
4A
400274
400274G
Rear Guard
Guard - Rear Xcaliber CNG Green
1
1
5 400420 Pan - Seat 2010 (f/Seat Belt) 1
6 100179 Weldment - Low RideTransmission Frame 1
7 B-229 3/8”-16 x 5” Bolt 2
8 N-107 3/8”-16 Nylon Locknut 3
9 N-135 7/16”-20 Nyloc Nut 4
10 W-168 7/16” Standard Flat Washer 8
11 B-199 7/16”-20 x 2” Grade 8 Bolt 4
12
12A
12B
67045-72
400265
400265G
Bumper - XXW (74”)
Bumper (66)
Bumper - XC3300-66 Green
1
1
1
13 W-160 10mm Flat Washer 3
14 B-179 3/8-16 x 2-1/2” Bolt 3
15 N-108 3/8”-16 Whiz Flange Nut 3
16 N-158 3/4”-9 Nyloc Nut 2
17 N-156 5/8”-11 Nylon Jam Nut 2
18 97169 Bumper Cap 2
19
19A
97145
B-190
Battery Box
3/8”-16 x 1-1/2” Carriage Bolt
1
2
REF PART# DESCRIPTION Qty
19B
19C
N-108
20228
3/8”-16 Whiz Flange Nut
Strap - Tarp
2
1
20 N-103-W 5/16”-18 Whiz Flange Nut 4
21
21A
100189
100194
Crossmember (74”)
Crossmember (66”)
1
1
22 600129 Pull Stop Weldment 1
23 N-110 1/2”-13 Nut 13
24 B-280 1/2”-13 x 14” Engine Adjustment Bolt 1
25 W-113 5/16” Standard Flat Washer 4
26 B-156 5/16”-18 x 2” Gr. 5 Bolt 4
27 W-107 3/8” x 1-5/8” Belleville Washer 1
28 B-237 3/4”-9x7-1/2” HHCS Blot 2
29 B-185 5/8”-11x2” Bolt 2
30 72222 All Thread 1/2”-13 x 12-1/2” 2
31 B-123 1/2”-13 x 1-1/2” Bolt 6
32 N-157 1/2”-13 Whiz Flange Nut 6
33 300040 RH Stabilizer Plate 1
34 300039 LH Stabilizer Plate 1
35 N-191 5/8”-18 Jam Nut 2
36 900070 Spherical Hyme Joint (5/8”-18 x 1-3/4”) 2
37 B-237 3/4”-9 x 7-1/2” HHCS Bolt 2
38 97131 Bracket MOUNT BRACKET 1 X 3 2
39 300573 Bracket - Up-Stop Deck (74”) 1
40 B-165 Bolt - 3/8-16 X 2 HHCS Gr.5 Bolt 1





&
'












 &
&

(
'
&



