Dixie Chopper XCALIBER 2011 - Springer Front Fork Assembly

9

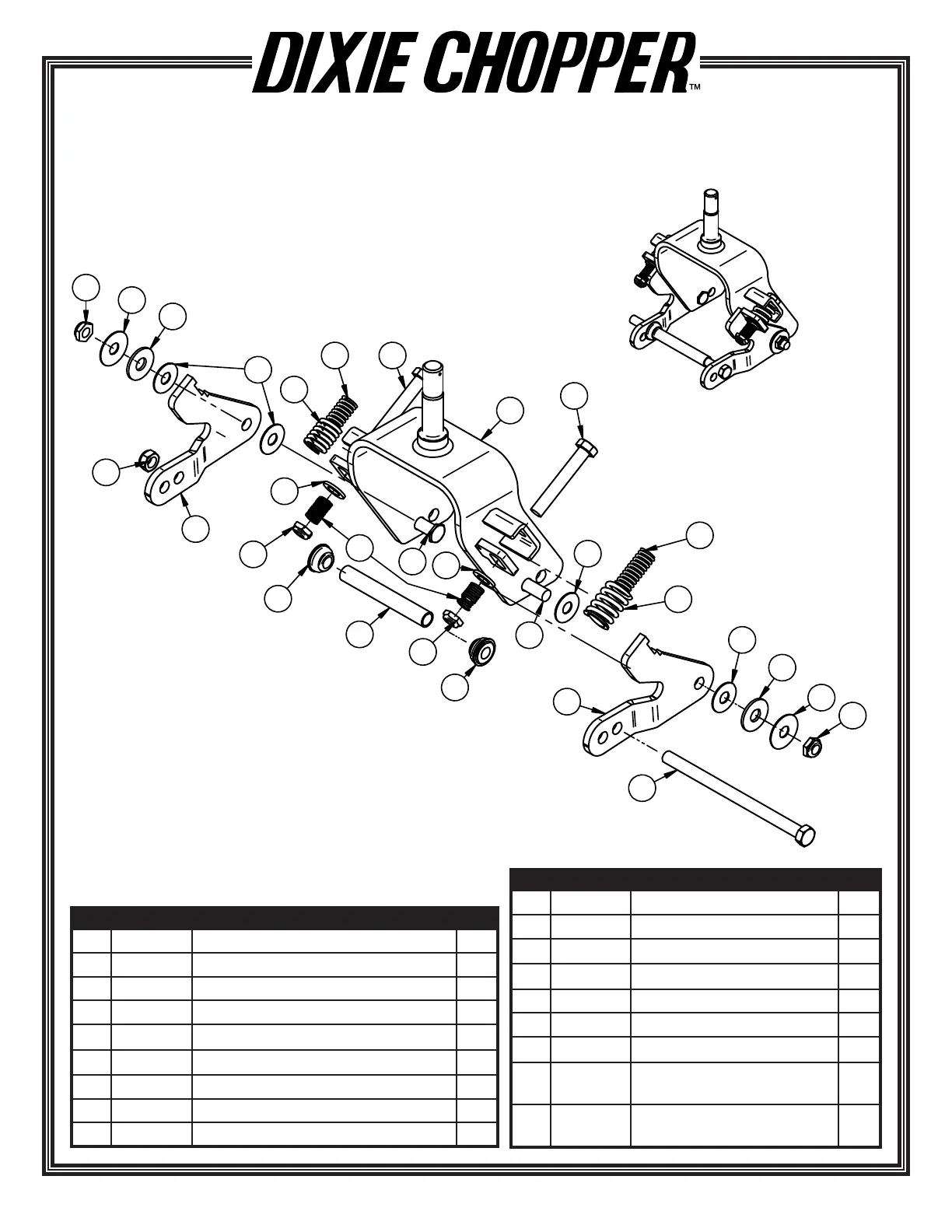

SPRINGER FRONT FORK ASSEMBLY
1
2
23
4
3
4
5
5
5
6
6
7
8
9
9
8
10
10
11
12
13
14
15
16
8
8
16
15
8
REF PART# DESCRIPTION Qty
100226 Assembly - Big Front Fork (XCD)
100210 Assembly - Front Fork (XCLP)
1 100211 Weldment - Fork Front Springer Big 1
2 B-309 5/8”-11x4” Bolt 2
3 100225 Spring (XCD Only) 2
4 100224 Spring 2
5 W-140 5/8” Nylon Washer 4
6 W-135 5/8” x 1/8” Thick Washer 2
7 20280-10 Suspension Spring
REF PART# DESCRIPTION Qty
8 N-147 5/8”-11 Nylon Jam Nut 5
9 400275 Bearing 2
10 B-308 5/8”-11x1-3/4” Bolt 2
11 400277 Spacer 1
12 100203 Weldment - Arm Spring LH 1
13 100202 Weldment - Arm Spring RH 1
14 B-146 5/8”-11x9-1/2” Bolt 1
15 W-190 .715 x 1.25 x .136” Zinc
Washer
2
16 W-189 Washer - 1.875 Bellville
Disc Spring
2
