19

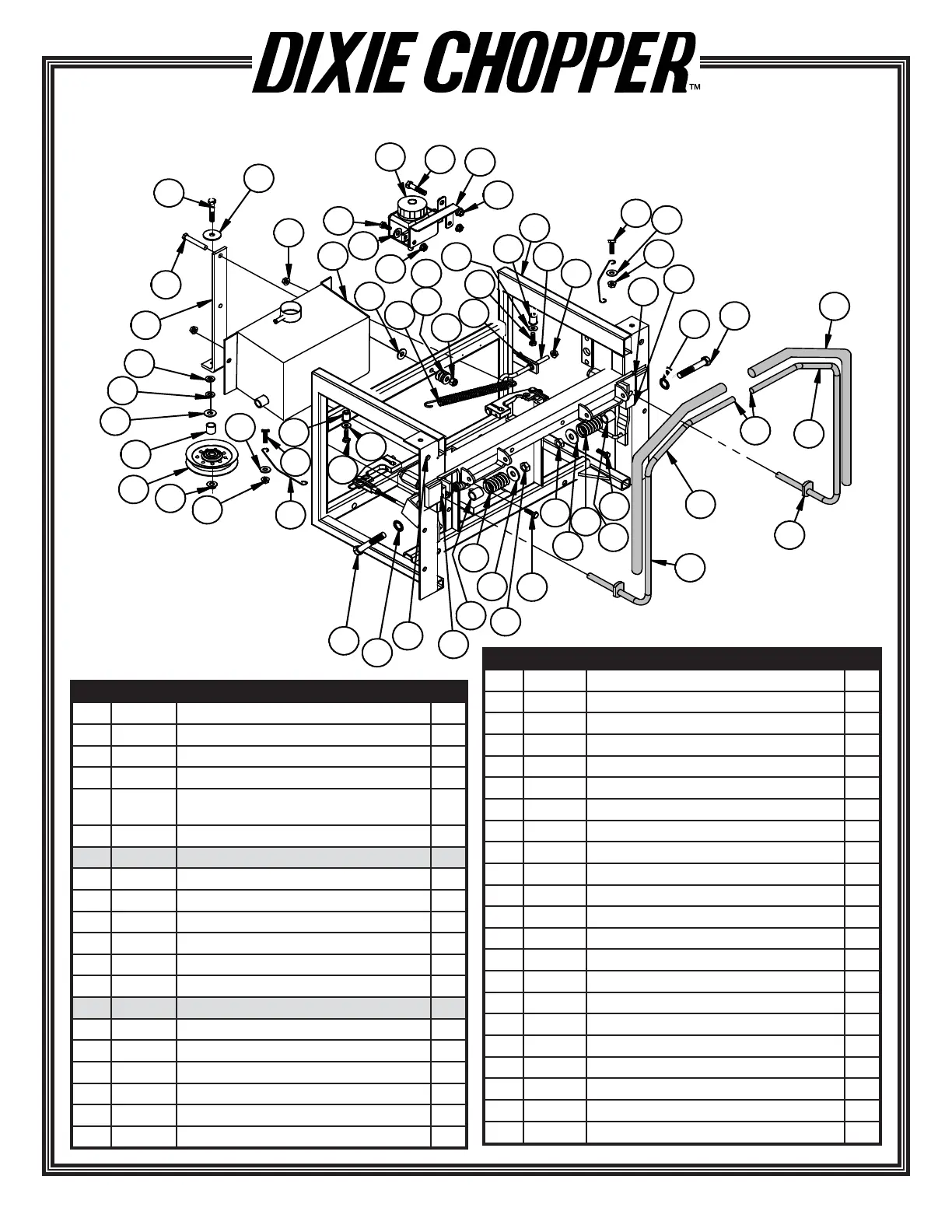

TRANSMISSION FRAME ASSEMBLY
REF PART# DESCRIPTION Qty
1 100179 Low Ride Transmission Frame 1
2 B-150 5/16” X 2-1/2” Eye Bolt 1
3 N-103-W 5/16”-18 Whiz Flange Nut 8
4 200325 Bracket - Overfl ow Tank Holder 1
5
5A
200117
200118
Steering Block Weldment Left
Right Side
1
6 N-107 3/8”-16 Nylon Lock Nut 1
7 400201 Foam Lever Sleeve
8 400283 Assembly - Lever Steering LH Commercial 1
9 400282 Assembly - Lever Steering RH Commercial 1
10 300324 Spring 1
11 W-109 Washer - 1/2 Flat 2
12 N-143 Nut - 1/2 - 13 Nyloc 2
13 N-152 1/4”-20 Insert Nut 4
14 400228 Steering Lever Black Plastic End Cap
15 W-157 1/2” Star-tooth washer 2
16 B-107 5/16”-18 X 3/4” Gr. 5 Bolt 6
17 B-332 Bolt - 1/2-13X5 HHCS PT Gr.5 Zinc 2
18 40218 Seat Strap 2
19 W-156 9/16” Standard Flat Washer 2
20 W-113 5/16” Standard Flat Washer 2
REF PART# DESCRIPTION Qty
21 N-117 3/8”-16 Large Flange Lock Nut 1
22 300401 V-Idler Pulley 1
23 W-124 3/8” Machine Washer .120”
24 W-123 3/8” Machine Washer .060”
25 W-176 3/8” Machine Washer .031”
26 97415 Spacer 1
27 B-165 3/8”-16 X 2” Bolt 1
28 B-124 3/8”-16 X 1-3/4” Gr. 5 Bolt 2
29 W-104 3/8 Standard Flat Washer 1
30 100011 Idler Arm 1
31 200008 Hydraulic Tank 1
32 W-125 3/8” X 7/8” Plastic Washer 1
33 W-126 3/8” Dish Spring Washer 3
34 W-113 5/16” Flat Washer 2
35 200234 Oil Overfl ow Tank 1
36 W-102 1/4” Flat Washer 2
37 B-172 1/4”-20 X 1” Bolt 2
38 400282 Assembly - Lever Steering RH Commercial 1
39 400283 Assembly - Lever Steering LH Commercial 1
40 100107 Spring - Suspension Lower Fork Front Spr 2
41 10203 Spacer - Wheel Front 2
42 N-108
Nut - 3/8”-16 Whiz
1
&
