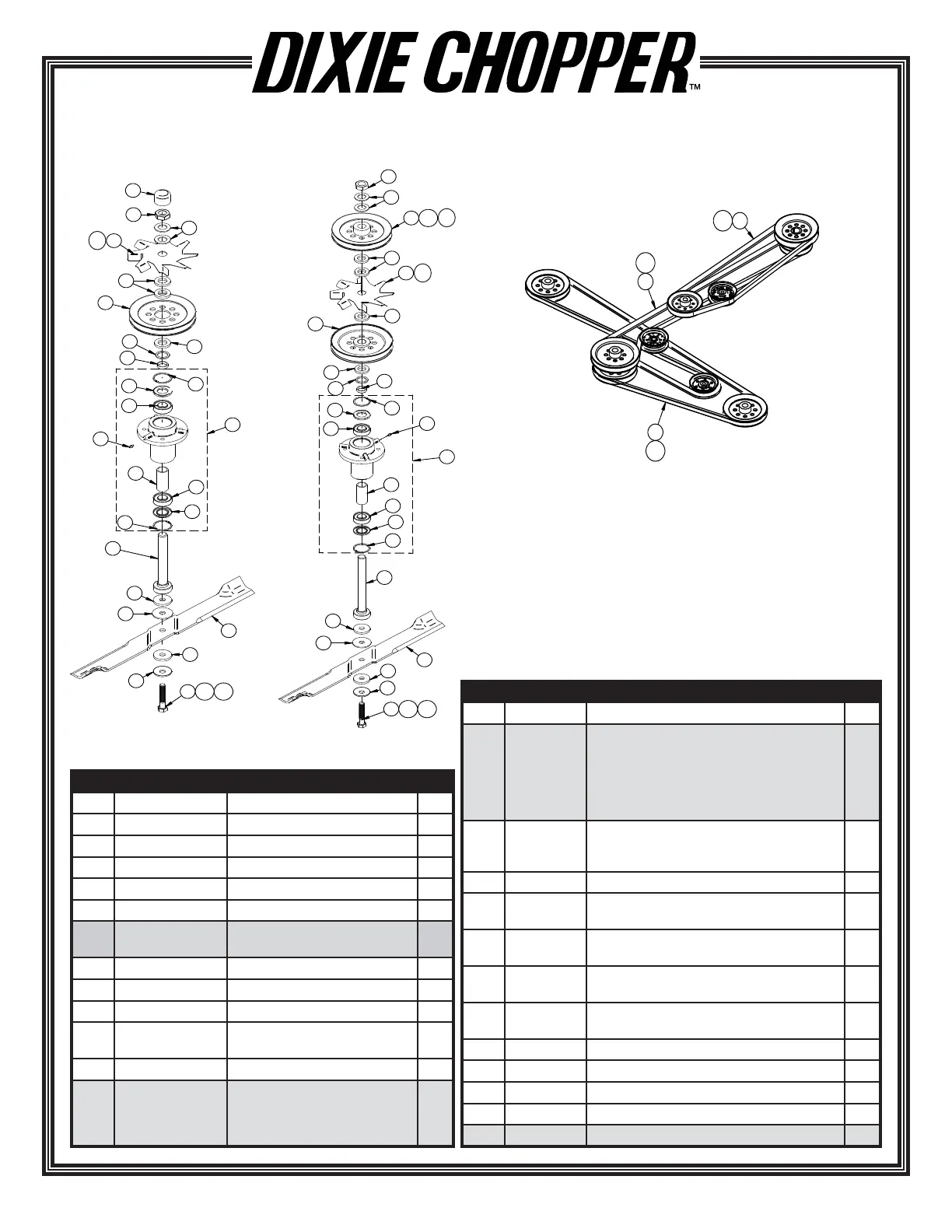

Dixie Chopper XCALIBER 2011 - Hubs and Belts

21
HUBS AND BELTS
23
1
1
3
3
21
21
2
2
2
2
2
4
16
4
5
5
25
25
22
22
22
22
6
6
24
24
24
24
6
6
10
17
8
9
9
8
13
13
15
15 15A 15B
15A 15B
14
11
14
11
12
11
11
12
7
7
16A
20
18
19
19A
20A
18A
REF PART# DESCRIPTION Qty
1 N-167 1” Nut 3
2 W-146 1/4” Washer 10
3 W-137 1” Belleville Washer 6
4 9907675X100S 6.75” Split Pulley (66” & 74”) 3
5 300448 Bushing 3
6 300443 Seal - Oil Hub Deck
7
7A
300441
300442
Outside Complete Spindle Asm.
Center Complete Spindle Asm.
2
1
8 F-102 Grease Fitting 3
9 30219 Inner Deck Hub Spacer
10 30217 Short Blade Shaft 2
11 W-182 2” OD X .656 ID X 1/4” Thick
Washer
6
12 W-101 Fiber Washer 3
13 30227-74X
30227-74T
30227-66X
30227-66T
74” X Style Blade
74” Twisted Blade (Optional)
66” X Style Blade
66” Twisted Blade (Optional)
3
REF PART# DESCRIPTION Qty
14 W-100 5/8” Belleville Washer 3
15
15A
15B
B-121
B-121-L
B-121-LL
2.5” Blade Bolt (use w/o blade spacer)
3” Blade Bolt (use with blade spacer)
3.25” Blade Bolt (use with Whiz-Mow)
3
1 6
16A
16B
300364
300427
300470
9” Pulley (74” LP)
8” Pulley (66” LP)
Pulley - Split 8.5” x 1” (66” CNG)
1
1
1
17 30217-L Long Blade Shaft 1
1 8
18A
2010B99W
2010B98W
Belt - V 99” B section (74” & 66” CNG)
Belt - V 98” B section (66”)
1
1
1 9
19A
2006B162R
2006B144R
Belt - V 162” B section Raw (74”)
Belt - V 144” B Section Raw (66”)
1
1
2 0
20A
2010B44W
2010B42W
Belt - Transmission B-44 (74”)
Belt - V 42” B section (66”)
1
1
21
21A
300026
300058
Fan - 8 1/4” Steel Black w/1” Bore
Fan - 1” X 8-1/4” Steel Gray & Decal
3
22 788080 Retainer Ring
23 67255 Spindle Hub Caps 2
24 30218 Bearing - Hub
25 W-131 1/8” Washer 3
30302 Whiz-Mow ( Optional )
21A
21A
16B
