Dixie Chopper XCALIBER 2011 - Page 23

20

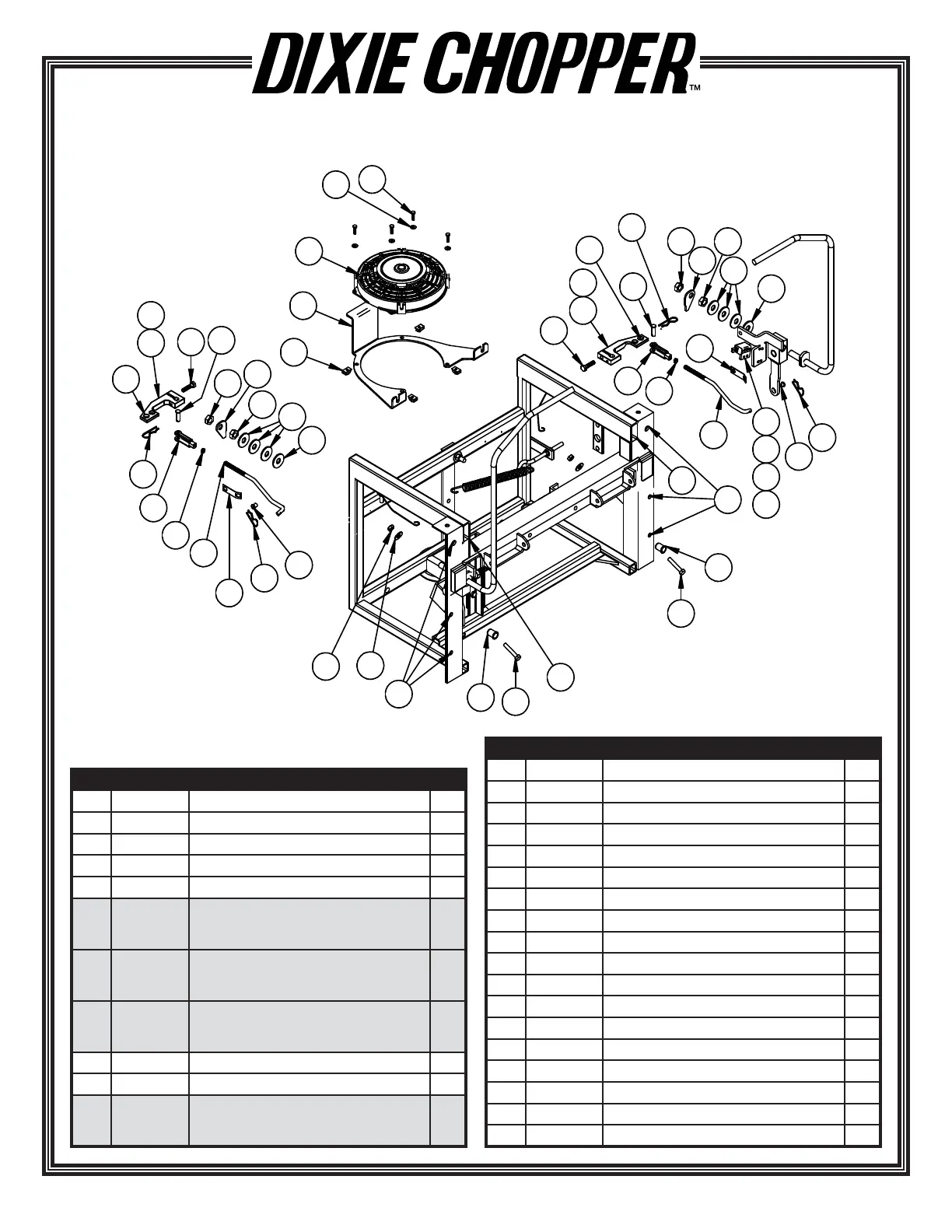

TRANSMISSION FRAME ASSEMBLY







'





&
'



















'

&




&
'

&








REF PART# DESCRIPTION Qty
1 B-129 5/16”-18x2-1/4” Bolt 2
2 W-113 5/16” Flat Washer 2
3 N-103 5/16”-18 HHCS Nut 2
4 20224 Hairpin Clip 4
5 20222 Plastic Bushing 4
6
6A
6B
200020
20214
N-105
16 & 18 Ser. Right Pump Control Rod
5/16”-24 Yoke
5/16”-24 Nut
1
1
1
7
7A
7B
200314
P-118
B-131
Arm - Control Pump RH Hydro-Gear
3/16”x1-1/2” Roll Pin
5/16”-18 Bolt
1
1
1
8
7A
7B
200315
P-118
B-131
Arm - Control Pump LH Hydro-Gear
3/16”x1-1/2” Roll Pin
5/16”-18 Bolt
1
1
1
9 20223 Backing Clip 2
10 P-101 5/16”x1” Clevis Pin 2
11
6A
6B
200019
20214
N-105
16 & 18 Ser. Left Pump Control Rod
5/16”-24 Yoke
5/16”-24 Nut
1
1
1
REF PART# DESCRIPTION Qty
12 N-143 Nut - 1/2 - 13 Nyloc 2
13 N-198 Nut - 1/2”-13 Two Way Lock Zinc 2
14 W-191 1 3/8” OD. x .505 ID. Bellville Washer 4
15 C-105 10-24 U-Clip 4
16 67256 Plastic Plug 1”x2” 2
17 N-188 1/4”-20 AR Series Threaded Insert 2
18 N-152 1/4”-20 Nut Insert 6
19 N-153 5/16”-18 Nut Insert 4
20 B-203 10-24x3/4” S.S. Bolt 4
21 W-152 #10 S.S. Washer 4
22 200043 Electric Fan 1
23 200042 Electric Fan Mount 1
24 W-157 Washer - 1/2 Star Tooth 2
25 200247 Actuator - Switch Steering IE 2
26 500013 Switch - Steering Arm SE 2
27 B-258 Bolt - M5X.8X16 HHCS FT 8.8 Zinc 4
28 W-152 Washer - #10 Flat SS 4
29 N-179 Nut - M5 - .8 HHCS 4
