Dixie Chopper XCALIBER 2011 - Electric Deck Lift 66

12

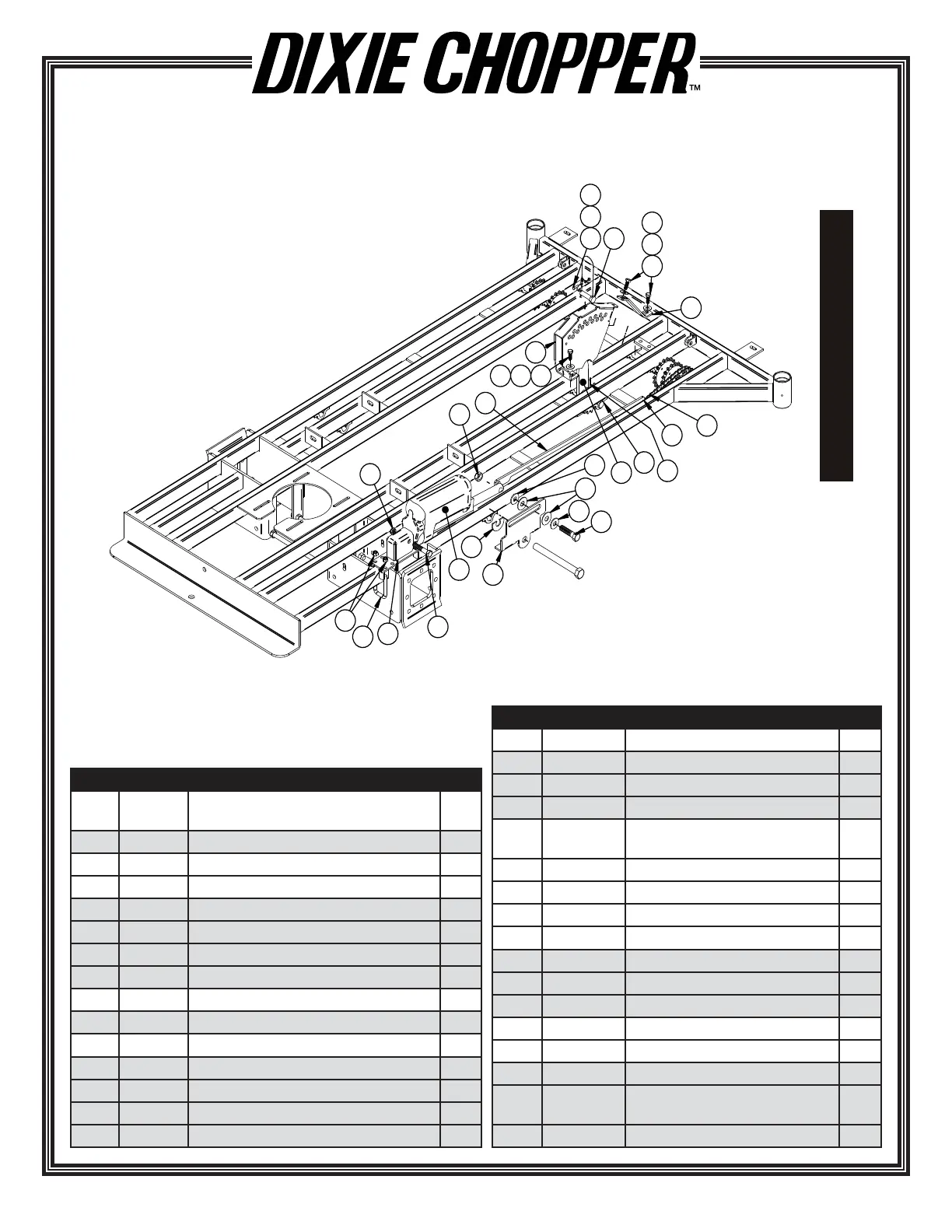

ELECTRIC DECK LIFT 66”
REF# PART# DESCRIPTION QTY
300543
900235
Kit - Electric Deck Lift 66” Frames
Kit - Hardware (Inc. Items in Grey)
1 300250B Pin-Clevis 1/2” w/Lanyard and Clip 1
2 300236 Weldment-Housing Adjustment Height 1
3 300240 Weldment-Arm Sprocket
4 B-181 Bolt-5/8”-11 x 2-1/2” HHCS 1
5 W-156 Washer-9/16” Flat 2
6 W-140 Washer-5/8” Nylon Flat 2
7 N-156 Nut-5/8”-11 Nyloc Jam 1
8 300457 Bracket-Mounting Front Actuator (LP) 1
9 300249 Shim-.875 ID
10 500092 Actuator - Linear Thompson 1
11 B-195 Bolt-1/2”-13 x 2-1/2” HHCS 1
12 N-126 Nut-1/2”-13 Nyloc Jam 1
13 N-107 3/8”-16 Nyloc Nut 2
14 B-204 3/8”-16 X 1-3/8” X 3” Sq. U-Bolt 1
REF# PART# DESCRIPTION QTY
15 300555 Arm - Actuator Deck Lift 66” 1
16 B-108 Bolt-3/8”-16 x 1” HHCS 3
17 W-104 Washer-3/8” Flat 3
18 N-108 Nut-3/8”-16 Whiz Flange 3
19 300239 Brace-Support Housing Adj.
Height
1
20 300420 Bracket - Mounting Actuator 1
21 10232 #50 Master LInk
22 800118 Decal - Height Indicator
23 68219 Chain - #50 PEDAL LIFT
24 W-175 M5 Flat Washer 1
25 B-258 M5-.8X16mm HHCS Bolt 1
26 N-179 M5 - .8 HH Nut 1
27 100152 Pin 1
28 300426 Chain - Deck Lift
67017 90 Degree Fitting 1
67014 3/8” Barbed Insert X 1/4” MPT
Fitting
1
500040 Wiring Harness 1
5.00”
4.75”
4.50”
4.25”
4.00”
3.75”
3.50”
3.25”
3.00”
2.75”
2.50”
2.25”
2.00”
1.75”
1.50”
800118
22
14
13
20
12
11
4
5
6
5
9
8
10
7
15
23
21
18
19
2
181716
1
25
24
26
3
17
16
27
28
