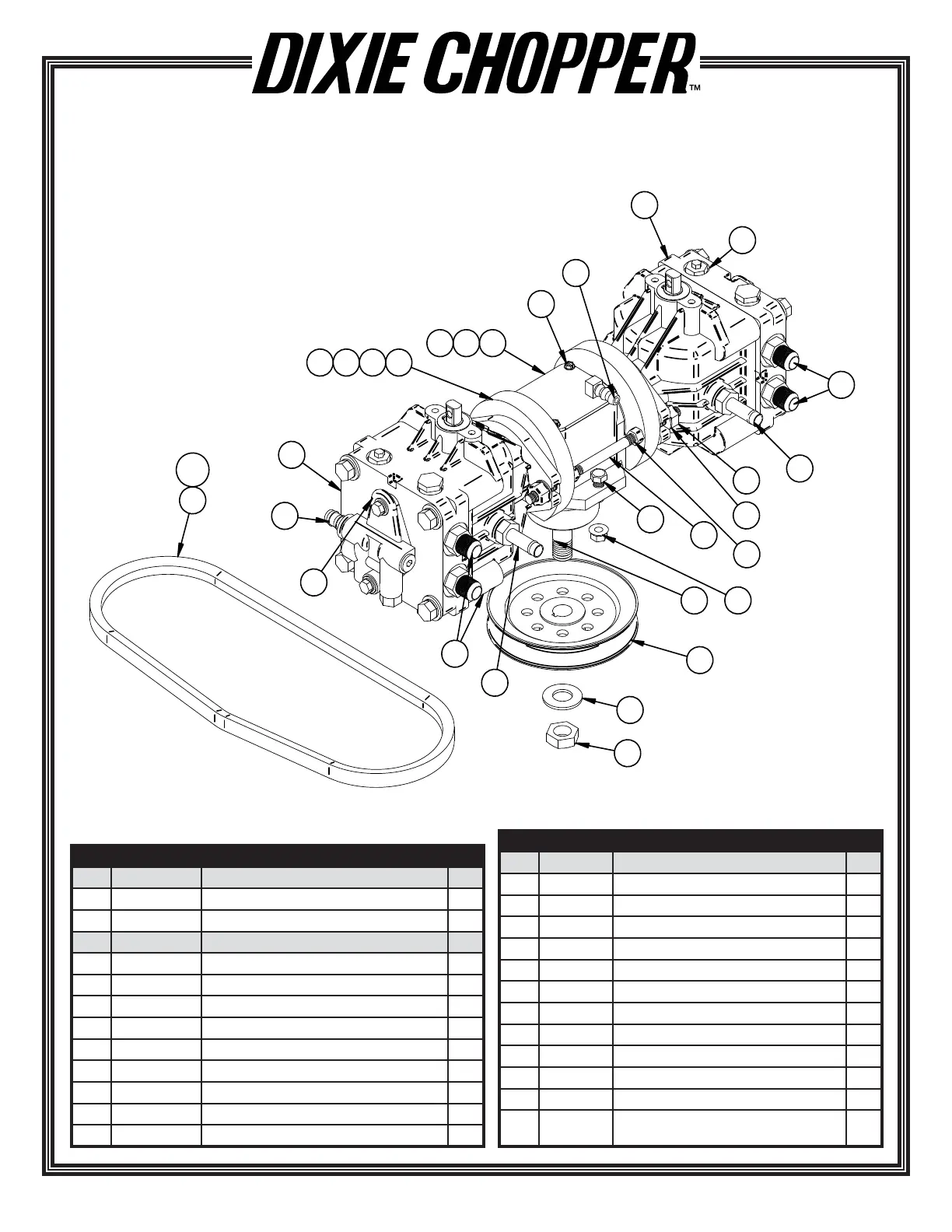

Dixie Chopper XCALIBER 2011 - Transmission and Drive Systems

22
TRANSMISSION & DRIVE
1
2
3
456
7
8
9
10
11
12
13
13
14
15
15
16
16
17
18192021
22
23
24
25
26
26A
REF PART# DESCRIPTION Qty
1 200312 Pump - Hydro-Gear 21cc RH XCAL 1
2 N-157 Nut - 1/2”-13 Whiz 4
3 W-169 5/16” Grade 8 Flat Washer 4
4 000365201-L T-Gear Box ( Complete Gear Box Only ) 1
5 788101 T-Box Gasket 1
6 772150 T-Box Cover Plate 1
7 792025 T-Box Cover Plate Bolt 4
8 S-121 All Thread - 1/2” -13 x 9” 2
9 K-109 Woodruff Key 3/16”x5/8” 1
10 200083 5-1/4” Transmission Pulley 1
11 W-132 3/4” Belleville Washer 1
12 N-114 3/4”-16 Jam Nut 1
13 65004 High Pressure Port Fitting 4
REF PART# DESCRIPTION Qty
14 200313 Pump - Hydro-Gear 21cc LH XCAL 1
15 200311 Fitting - 1/2” ORB - 1/2” Bead 45 2
16 72021 Fitting - 90 1/2 x 3/8 Big Pump 2
17 Dump Valve
18 72001 Bell Housing - Gear Box Pump Flange 2
19 788030B Bearing Plate Gasket 2
20 792026 Bell Housing Bolt 8
21 72024 O-Ring - 4” x 4 1/4” O-Ring f/72 2
22 68031 T-Box Fitting ( Brass ) 1
23 N-185 Nut - 1/2 - 13 HHCS Gr.8 4
24 N-108 3/8”-16 Whiz Flange Nut 2
25 B-108 3/8” -16 X 1” HHCS Bolt 2
26
26A
2006B44R
2006B42R
Engine - Transmission Belt B-44 (74”)
(66”)
