16

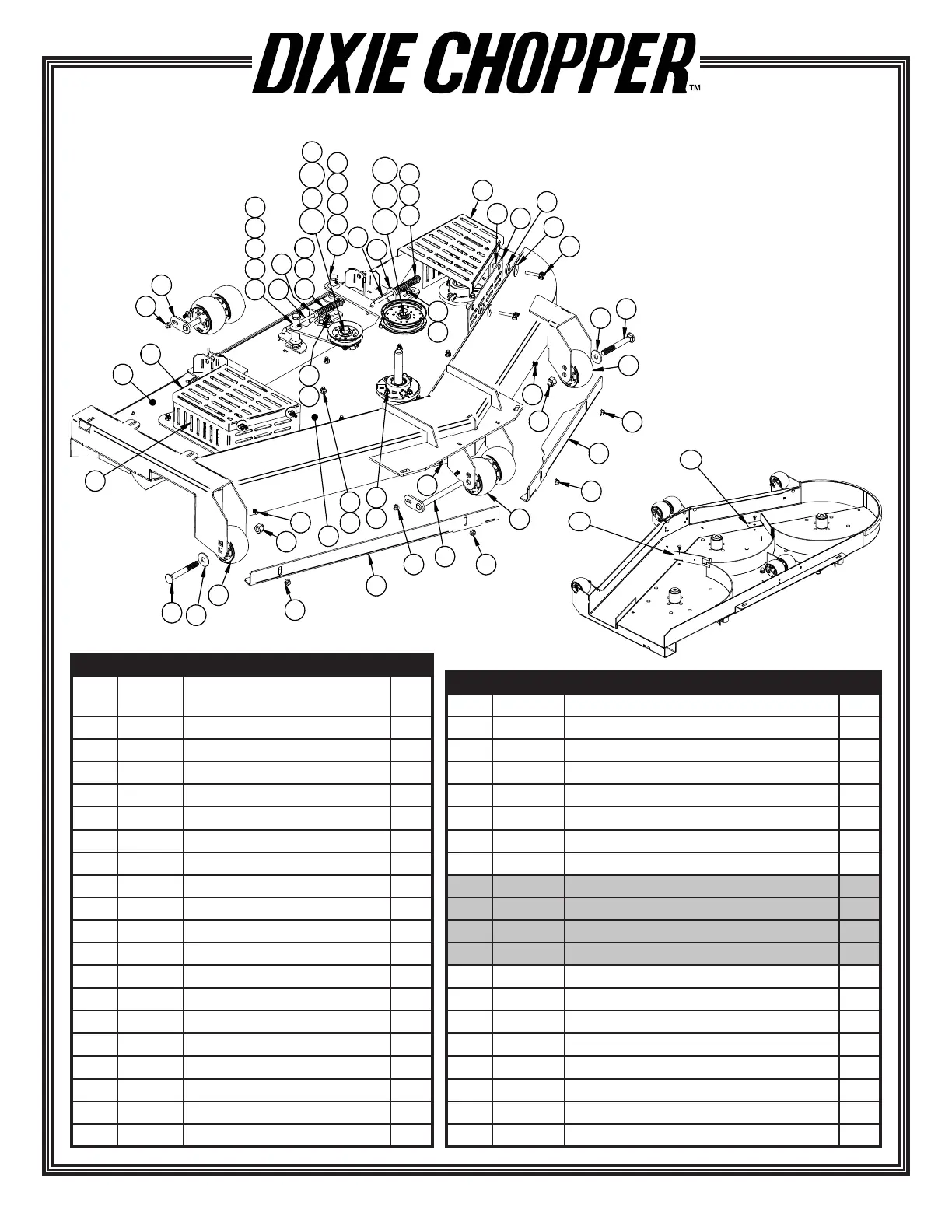

66” DECK ASSEMBLY
&
'
(
'
(
REF PART# DESCRIPTION Qty
300428 Assembly - Deck 66” Complete
(XCLP Only)
1 300436 Left Pulley Guard Cover 1
2 300434 Left Pulley Guard Mount 1
3 300435 Right Pulley Guard Cover 1
4 300433 Right Pulley Guard Mount 1
5 B-305 5/16”-18x1-3/4” D wing Bolt 6
6 W-118 5/16” Flat Washer 6
7 W-103 5/16” Rubber Washer 6
8 N-153 5/16”-18 Nut Insert 6
9 N-131 5/16”-18 Nyloc Nut 6
10 B-278 5/8”-11x5” Shaker Bolt 2
11 W-194 Washer - 7/8” SAE Flat, Zinc 2
12 300365 Anti-Scalp Roller 6
13 N-115 5/8”-11 Nyloc Nut 2
14 B-135 3/8”-16x1” Carriage Bolt 18
15 N-108 3/8”-16 Whiz Flange Nut 36
16 300432 Right Bolt-on Baffl e1
17 300431 Left Bolt-on Baffl e1
18 300389 Roller Pin Weldment 2
19 B-136 3/8”-16x1-1/4” Carriage Bolt 12
REF PART# DESCRIPTION Qty
20 W-104 3/8” Flat Washer 1
21 N-107 3/8”-16 Nyloc Nut 1
22 300184 Idler Tension Rod 2
23 97390 Spring 2
24 B-110 3/8”16x3/4” Carriage Bolt 6
25 N-195 5/8”-11 Whiz Flange Nut 2
26 300446 Fence - Mulching Deck RH 66” (Optional) 1
27 300447 Fence - Mulching Deck LH 66” (Optional) 1
28 300391 Deck Idler Arm 1
28A 68224 5-3/4” Flat Idler Pulley 1
28B W-111 5/8” Lock Washer 1
28C B-264 5/8”-11x1-1/2” HHCS Bolt 1
29 300393 Idler Spring Tension Bracket 2
30 300430 Plate - Top Deck 66” Xcaliber 1
31 300429 Weldment - Deck 66” Xcaliber 1
32 300471 Shim - Idler Deck 2.812x.656x7ga. 2
33 300531 Washer - Safety Pulley Idler 1
34 100231 Weldment - Arm Idler Engine/Deck Pulley 1
35 30234 Pulley - V-Idler 1
36 B-307 Bolt - 5/8”-11x3” HHCS 2
26
27
