Dixie Chopper XCALIBER 2011 - Engine - 30 Hp Generac

36

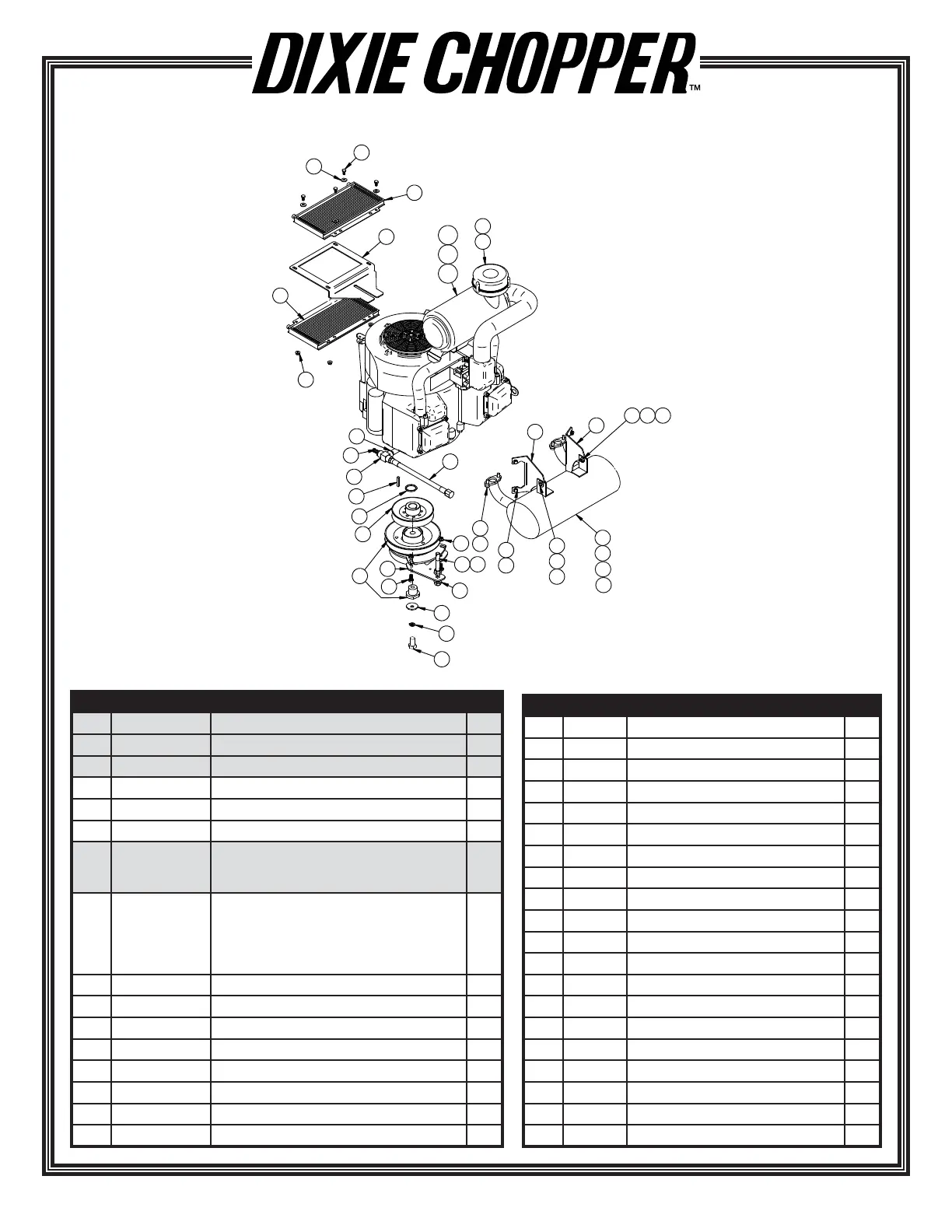

ENGINE - 30Hp GENERAC
REF PART# DESCRIPTION Qty
600137 Engine - Guardian 30 Hp LP (0053941)
1 W-178 1-1/4” X 1-1/2” X 1/8” Thick Washer 1
2 200104 Pulley - 5 X 6 X 1-1/4” Engine 1
3 W-144 7/16” Stainless Belleville Washer 1
4 W-108 7/16” Lock Washer 1
5 B-273 7/16”-20 X 2-1/2” Gr.8 Bolt 1
6
6A
6B
0C4138
600360
600316
Gasket - Generac Muffl er
Muffl er - Catalyst CNG
Tailpipe - Muffl er Strght f/Gen XC,CL,SE
1
1
7
7A
7B
0E3655
0E3557
0E3656
Canister - Donaldson Air Cleaner
Primary Element Donaldson Air
Cleaner
Secondary Element Donaldson Air
Cleaner
8 90125 Clamp 1
9 B-107 5/16”-18 X 3/4” Bolt 2
10 W-113 5/16” Flat Washer 2
11 N-103-W 5/16”-18 Whiz Flange Nut 2
12 600057 Bracket - LH Muffl er 1
13 600058 Bracket - RH Muffl er 1
14 W-179 M6 Lock Washer 4
15 B-269 M6-16 X 1.00 Bolt 4
REF PART# DESCRIPTION Qty
16 045761A Stud - M8 - 1.25 X 10MM 4
17 052858 Nut - Lock Flange M8 - 1.25 4
18 K-103 1/4” X 1” Long Key 1
19 N-102 1/4”-20 Whiz Flange Nut 4
20 W-102 1/4” Washer 4
21 B-101 1/4”-20 X 1/2” Bolt 4
22 60103-L Oil Cooler 2
23 400403 Mount - CNG Oil Cooler 1
24 200025 1/2” Braided Hose (2-1/2” Long) /ft.
25 600161 Oil Drain Hose Assembly 1
26 60102 3/8” Black Pipe Tee 1
27 87113 3/8” Male Pipe 3/8” Barb - Straight 1
28 72230 3/8” Black Pipe Nipple 3” Long 1
29 90115 Turbo Pre-cleaner 1
30 500056 Clutch Assembly 1
31 100180 Clutch Bracket 1
32 B-107 5/16”-18 X 3/4” Bolt 2
33 N-157 1/2”-13 Whiz Flange Nut 2
34 B-321 1/2”-13 Stud 1
35 N-103-W 5/16”-18 Whiz Flange Nut 2
1
3
4
6
9
10
11
12
13
9 10 11
14
15
16
17
19
20
21
22
29
7
25
26
27
28
23
22
8
6A
7A
7B
30
31
2
32
33
34
35
5
24
18
6B
6C
