Dixie Chopper XCALIBER 2011 - Wheels and Tires

10

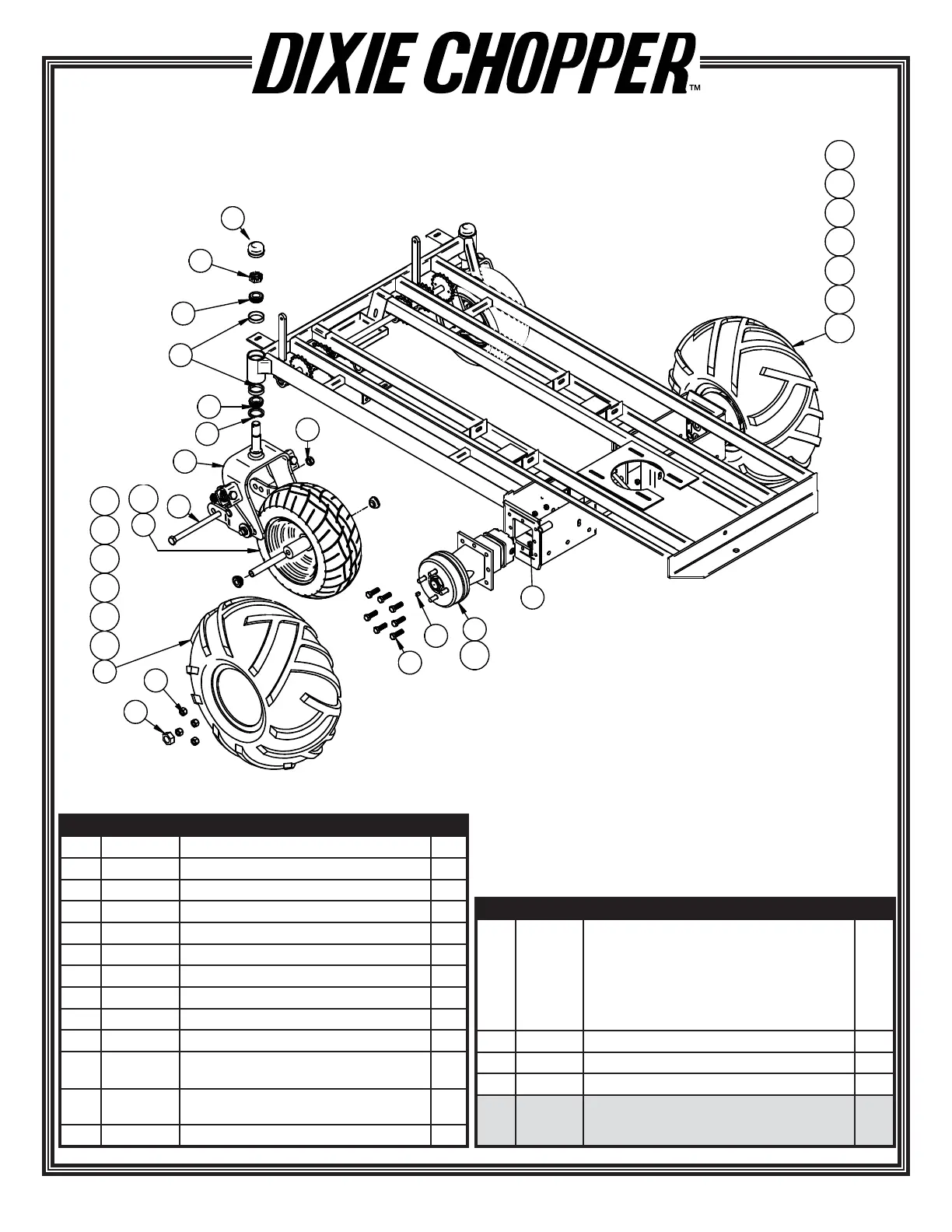

WHEELS & TIRES
REF PART# DESCRIPTION Qty
1 10220 Dust Cap 2
2 N-183 1”-14 Jam Nyloc 2
3 10207 Top Bearing 2
4 10206 Outer Bearing Race 4
5 97171 Bottom Bearing 2
6 10208 Seal 2
7 100210 Springer Front Fork Assembly 2
8 B-146 5/8”-11x9-1/2” Bolt 2
9 N-146 5/8”-11 Nylon Lock Nut 2
10 N-146 Wheel Motor Nut - 1/2”-13 Lock Nut Stover 14
11
11A
200018
200024
Wheel Motor 18Cu.In. w/Brake (66” & 74”)
Wheel Motor - 1.5” Shaft 24cu.in. (CNG)
2
2
12
12A
400439
10127-S
Assembly - Wheel Front Large
Valve Stem
2
13 300339102 Key
REF PART# DESCRIPTION Qty
14
14A
14B
14C
14D
14E
14F
400255
97200
400254
10127-S
400256
400235
400236
Left Tire Assembly (LH Rear 25x12x9)
Tire - Turf Boss III 25x12x9
Rim - 12x8.5
Valve Stem
Right Tire Assembly (RH Rear 25x12x9)
Assembly - Rim/Tire LH Rear 27/13-12 (CNG)
Assembly - Rim/Tire RH Rear 27/13-12 (CNG)
1
1
1
1
15 N-113 Lug Nut 8
16 PW72693 Wheel Motor Axle Nut
17 B-123 Wheel Motor Bolt - 1/2”-13x1-1/2” 14
119-0032 Tire Sealant 1 Liter Bottle (Optional)
Front Tire @ 1 Liter
Rear Tire @ 2 Liter








&
'
(
)
&
'
(





&
'
(




)
*
+
&
)
*
+
