25

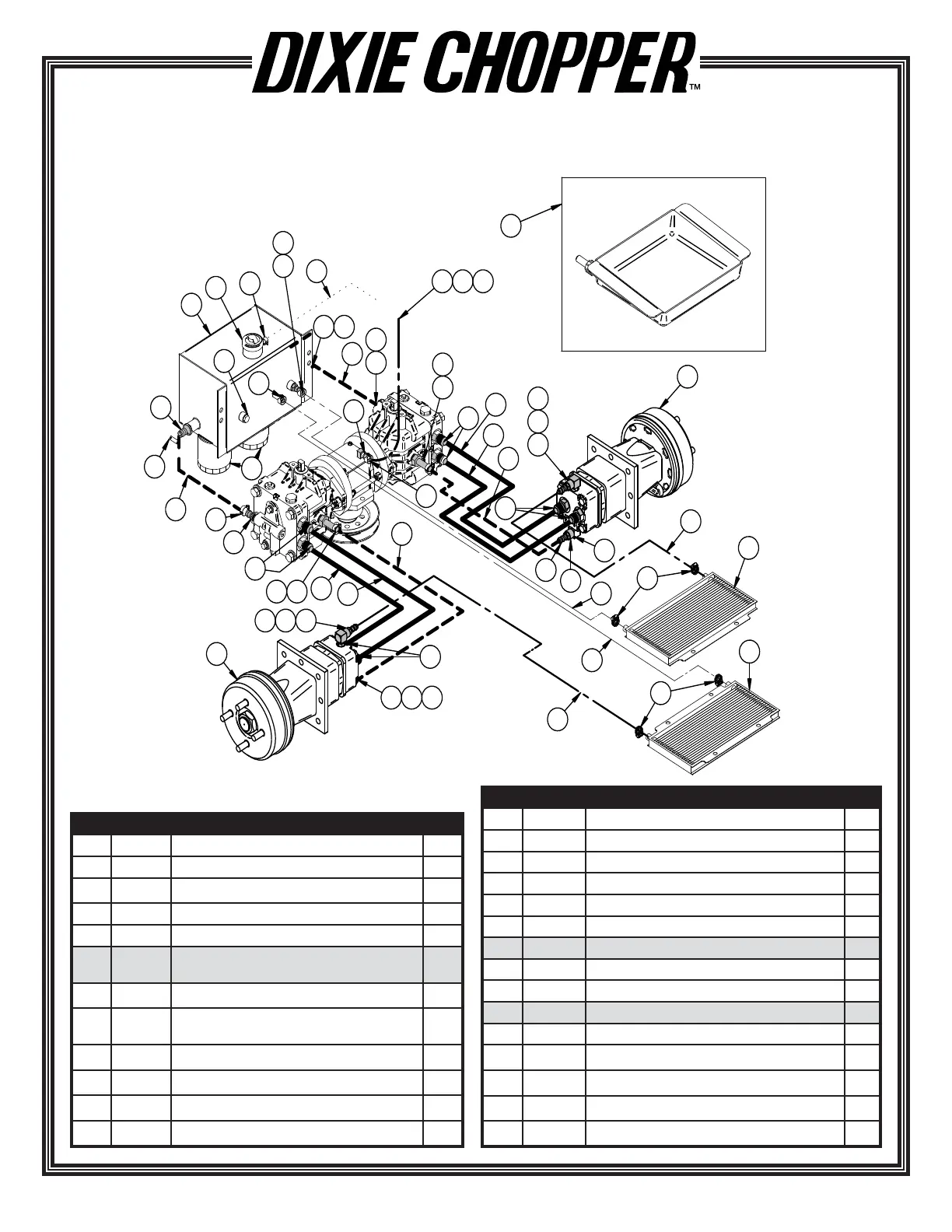

66” HYDRAULIC HOSE DIAGRAM
&
&
REF PART# DESCRIPTION Qty
1 200008 Hydraulic Tank and Cap
2 40117-R Oil Cap
3 200223 Straight 3/8” NPT x 1/2” Pushlock 2
4 200311 Fitting - 1/2” ORB - 1/2” Bead 45 Degree
5 68140 Filter - Hydro Zinga 40 Micron 2
6
6A
65108
60109
3/8” Clear Hose
3/8” Black Hose
/ft.
Inch.
7 65075 High Pressure Black Hydro Hose Left 2
8
8A
65074
65073
High Pressure Black Hydro Hose Right
Hose - Hydro 18” 1/2 2002 f/10A
2
2
9 200024 Wheel Motor - 1.5” Shaft 24cu.in. 2
10 67017 90 - Degree Fitting 4
11 87104 Steel Fitting 4
13 65009 3/8” Pipe Plug 1
REF PART# DESCRIPTION Qty
14 67013 3/8” Clamps 6
15 65004 High Pressure Port Fitting
16 60103-L Oil Cooler 2
17 68231 #4 Micro Hose Clamp 4
18 72021 Fitting - 90 1/2 x 3/8 Big Pump
19 68031 T-Box Fitting ( Brass )
20 200025 1/2” Black Ribbed Hose ( Exterior Braided ) /ft.
21 97098 1/2” Clamp 2
22 97374 5/16” Black Hose /ft.
25 900018 Optional - Drain Pan for Hydro Filter
26 72012 5/16” Clamp 1
27 28534 T-Box Plug 1
28 67014 Brass Fitting 6
29 200226 1/2” Clamp 4
30 97098 Clamp - 1/2” Clamp f/Twin 2
30
30
28
28
To Next Page
