30

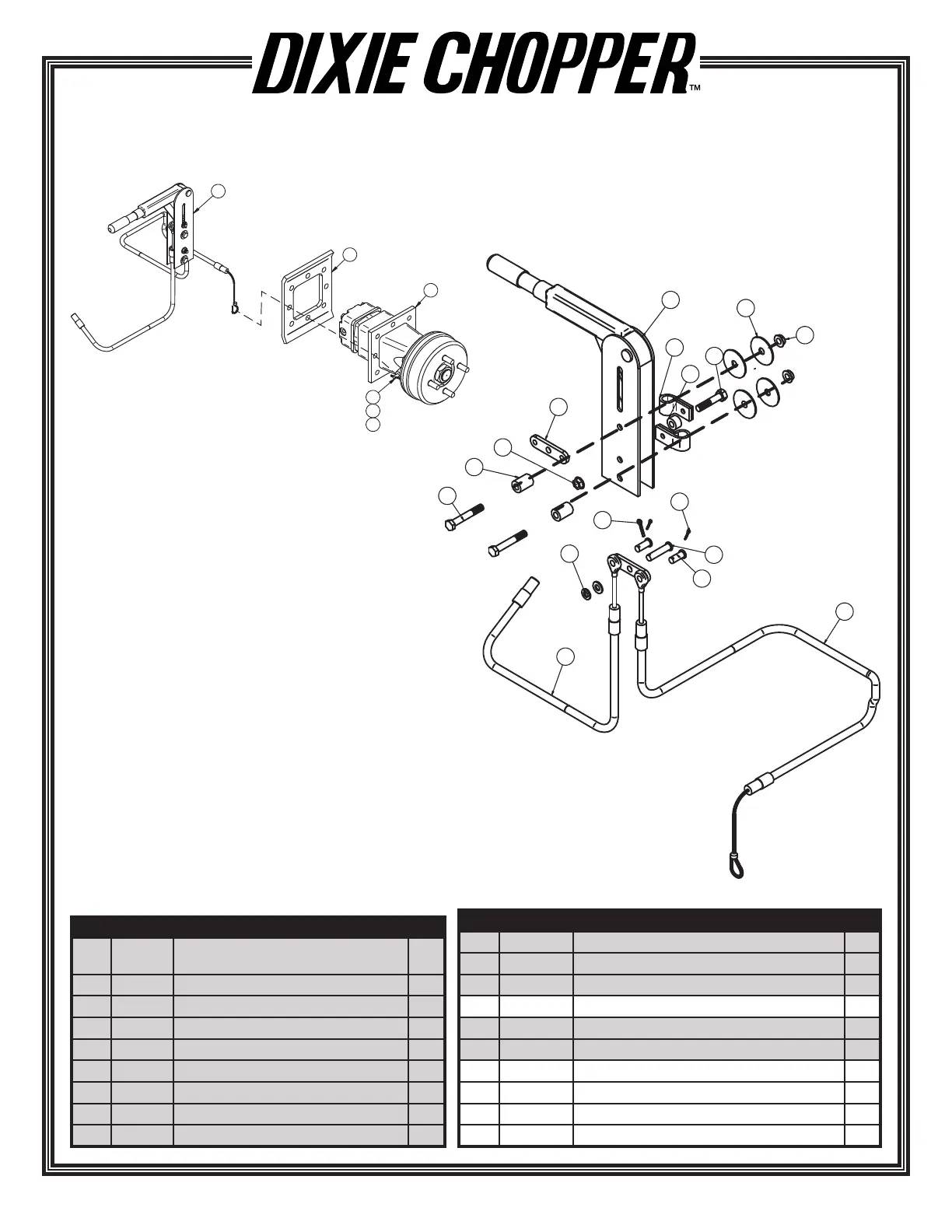

BRAKE ASSEMBLY
REF PART# DESCRIPTION Qty
2 400349 Brake Handle Assembly (Inc. #2-13,
15-18)
1
3 Bolt 1
4 N-134 5/16”-18 Large Flange Nut 2
5 W-106 3/8” Fender Washer 4
6 65061 R Clamp 2
7 65063 Spacer 1
8 65060 Pivot Plate 2
9 Nut 1
10 65062 Spacer 2
2
19
20
14
21
22
2
3
4
5
6
7
9
10
11
15
16
12
14
13
18
17
8
REF PART# DESCRIPTION Qty
11 B-156 5/16”-18 X 2” Cr. 5 Bolt 2
12 Hairpin Cotter 2
13 P-129 5/16” X 1-1/2” Clevis Pin 1
14 P-112 5/16” X 3/4” Clevis Pin 2
15 Hairpin Cotter 1
16 W-102 1/4” Flat Washer 2
19 200016 Wheel Motor Face Plate
20 200018 18 Cu. In. Wheel Motor w/Brake
21 W-102 1/4” Flat Washer
22 P-117 1/8” X 2” Cotter Pin
