Dixie Chopper XCALIBER 2011 - Throttle

29

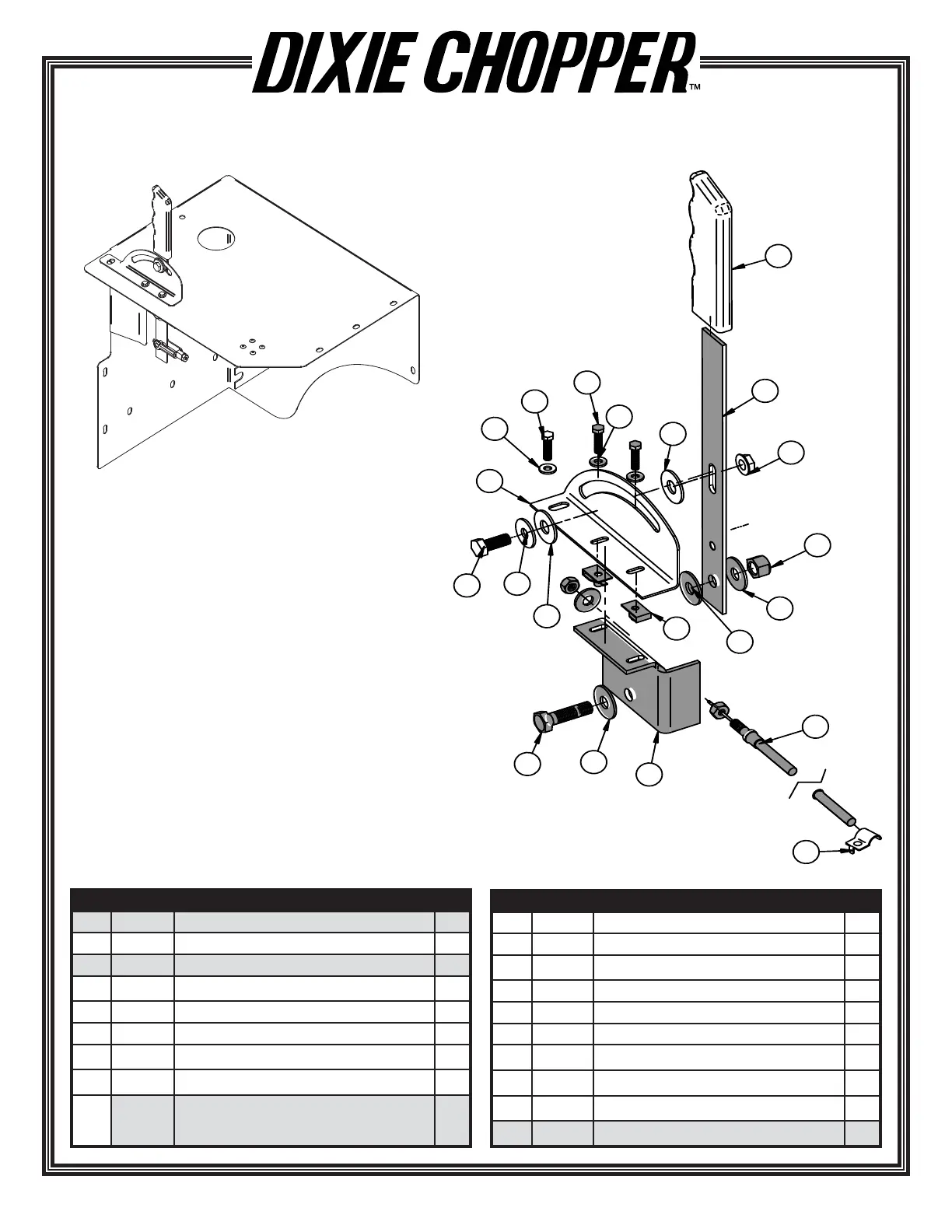

THROTTLE ASSEMBLY
1
2
3
4
5
6
7
8
18
9
10
5
11
12
13
16
17
15
14
6
6
REF PART# DESCRIPTION Qty
600156 Complete Throttle Assembly (2,5 - 11,15,16)
1 67258 Handle Grip (Black) 1
2 600062 Handle - Throttle F/all Models 1
3 N-134 5/16” Flange Lock Nut 1
4 N-107 3/8” -16 Nyloc Nut 1
5 W-104 3/8” Standard Flat Washer 2
6 W-125 3/8” Nylon Washer 3
7 C-105 Clip Nut 2
8 600075 Throttle Cable
Washer
Hex Nut
1
2
2
REF PART# DESCRIPTION Qty
9 97011 Lower Throttle Mounting Bracket 1
10 B-108 3/8”-16 x1” Bolt 1
11 B-313 5/16”-18 x 7/8” Bolt 1
12 W-113 5/16” Flat Washer 1
13 65270 Upper Stainless Throttle Bracket 1
14 W-152 #10 Stainless Washer 2
15 B-203 10-24x3/4” Stainless Bolt 2
16 W-153 1/4” Stainless Flat Washer 1
17 B-209 1/4”-20x3/4” Bolt 1
18 C-107 Clamp 2
