28
XC-ECO EAGLE

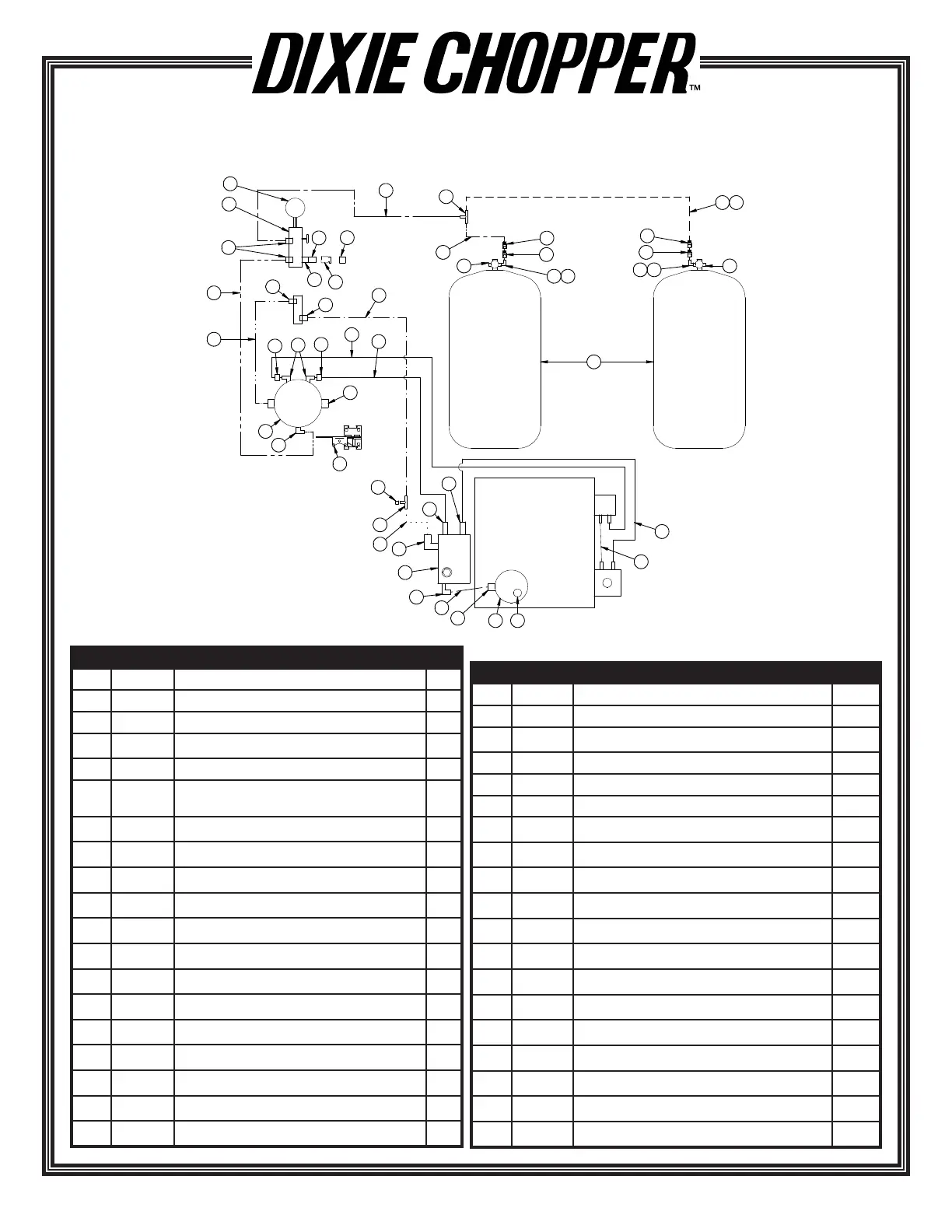

FUEL LINE ROUTING DIAGRAM
*3,.3*
&
REF PART# DESCRIPTION Qty
1 600181 Tank - 13.9x035 w/HDWR NGV2 2
2 600336 Fitting - 1/4”ORB x 1/4”MJIC 90 SS 2
3 600369 Fitting - 1/4 JIC M x 1/4 Pipe F SS CNG 2
4 600371 Valve - Flow Excess SS CNG 2
5 600370 Fitting - 1/4 Pipe F X 1/4 JIC F SS CNG 2
6
6A
600333
900411
Hose - HP CNG 52.00” Strght-Strght
Sleeve - Hose Line Wear Protector
1
1
7 600326 Hose - HP CNG 9.00” Strght-Strght 1
8 600339 Fitting - 1/4”MJIC Tee SS 2
9 600331 Hose - HP CNG 23.00” Strght-90 1
10 600337 Fitting - 1/4”MJIC x 1/4”MNPT 90 SS 4
11 600180 Gauge - Pressure 6000 PSI 1
12 600179 Manifold - Fitting CNG 1
13 600341 Fitting - 90 3/8”ORB x 3/8” MJIC SS 1
14 600190 Tab - Stabilizer Front Deck 34” 1
15 600191 Cap - Dust 1
16 600340 Fitting - 1/4”ORB Plug SS 2
17 600330 Hose - HP CNG 13.75” Strght-Strght 1
18 600327 Hose - HP CNG 10.50” Strght-Strght 1
19 600338 Fitting - 1/4” JIC x 1/4” pipe 1
REF PART# DESCRIPTION Qty
20 600329 Hose - HP CNG 13.50” Strght-90 1
21 600107 Fitting - Elbow 1/4”MPT-3/8” 90 JIC 2
22 60116 Fitting - 3/8 Swivel - 3/8 Barb 2
23 65009 Plug - 1/4” Pipe 1
24 600176 Regulator - 3600 PSI High Pressure 1
25 600335 Fitting - 1/4”MJIC x 3/8”FNPT SS 1
26 600318 Assembly - Mount Regulator Pressure High 1
27 600367 Cap - Line Fuel CNG 1/4” JIC-SAE 1
28 600328 Hose - HP CNG 10.75” Strght-Strght 1
29 600196 Regulator - Pressure 1
30 600348 Fitting - 5/8” Hose x 3/8” MPT 90 1
31 600349 Hose - Vapor 5/8” VH-58 /feet 18”
32 600347 Fitting - 5/8” Hose x 3/8”MPT Straight 1
33 600346 Spring - Mixer CNG 1
34 600368 Plug - Welch CNG .753OD X .05TH 1
35 67019 Fitting - 90 3/8 Barbed Insert x 1/4 MPT 1
36 67014 Fitting - 3/8 Barbed Insert x 1/4 MPT 1
37 600342 Fitting - Swivel 3/8”ORB x 3/8” JIC ss 1
38 200027 Hose - Hydro Black Ext Braid 3/8”/Inches 127”
