Dixie Chopper XCALIBER 2011 - Page 20

17

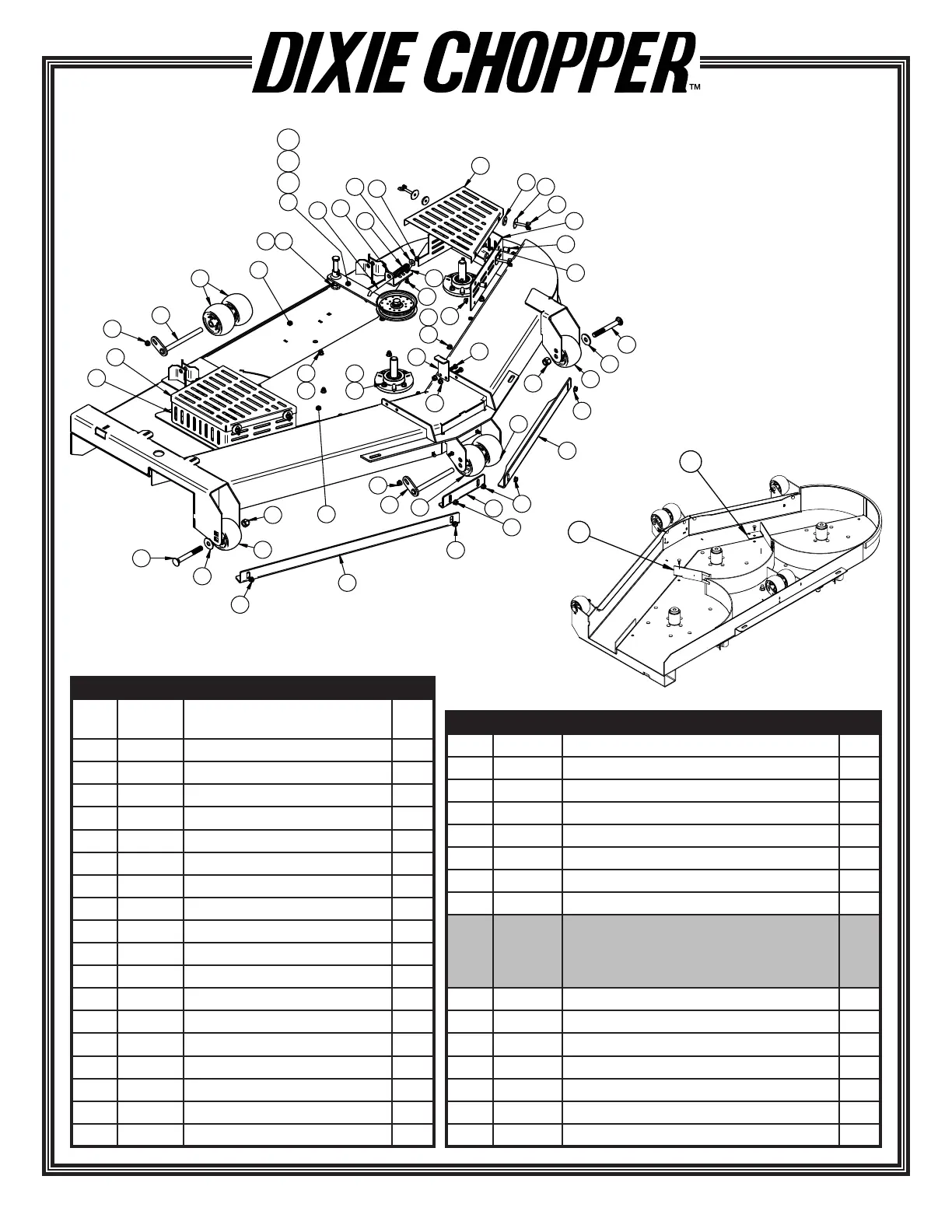

74” DECK
4
3
15
21
12
10
11
12
13
15
23
20
15
15
21
12
15
19
15
12
18
15
12
13
11
10
1
7
6
5
8
2
9
16
15
29
15
17
14
15
15
14
15
14
15
22
3333
31
30
24
26
25
27
27A
27B
27C
32
34
REF PART# DESCRIPTION Qty
300368 Assembly - Deck 74” Complete
(XCLP Only)
1 300377 Left Pulley Guard Cover 1
2 300375 Left Pulley Guard Mount 1
3 300376 Right Pulley Guard Cover 1
4 300374 Right Pulley Guard Mount 1
5 B-305 5/16”-18 X 1-3/4” D Wing Bolt 6
6 W-118 5/16” Flat Washer 6
7 W-103 5/16” Rubber Washer 6
8 N-153 5/16”-18 Nut Insert 6
9 N-131 5/16”-18 Nyloc Nut 6
10 B-278 5/8”-11 X 5” Shaker Bolt 2
11 W-194 Washer - 7/8” SAE Flat, Zinc 2
12 300365 Anti-Scalp Roller 6
13 N-115 5/8”-11 Nyloc Nut 2
14 B-135 3/8”-16 X 1” Carriage Bolt 18
15 N-108 3/8”-16 Whiz Flange Nut 40
16 B-108 3/8”-16 X 1” Bolt 2
17 300392 Deck Lift Stop Bracket 1
18 300373 Left Bolt-on Baffl e1
REF PART# DESCRIPTION Qty
19 300371 Center Bolt-on Baffl e1
20 300372 Right Bolt-on Baffl e1
21 300389 Roller Pin Weldment 2
22 300369 74” Deck Weldment 1
23 300370 74” Deck Top Plate Weldment 1
24 97390 Spring 1
25 300184 Idler Tension Rod 1
26 300393 Idler Spring Tension Bracket 1
27
27A
27B
27C
300391
68224
W-111
B-264
Deck Idler Arm
5.75” Flat Idler Pulley
5/8” Lock Washer
5/8”-11 X 1-1/2” HHCS
1
1
1
1
28 B-110 3/8”-16 X 3/4” Carriage Bolt 8
29 B-136 3/8”-16 X 1-1/4” Carriage Bolt 12
30 W-104 3/8” Flat Washer 1
31 N-107 3/8”-16 Nyloc Nut 1
32 300444 Fence - Mulching Deck RH 74” (Optional) 1
33 N-195 5/8”-11 Whiz Flange Nut 2
34 300445 Fence - Mulching Deck LH 74” (Optional) 1
