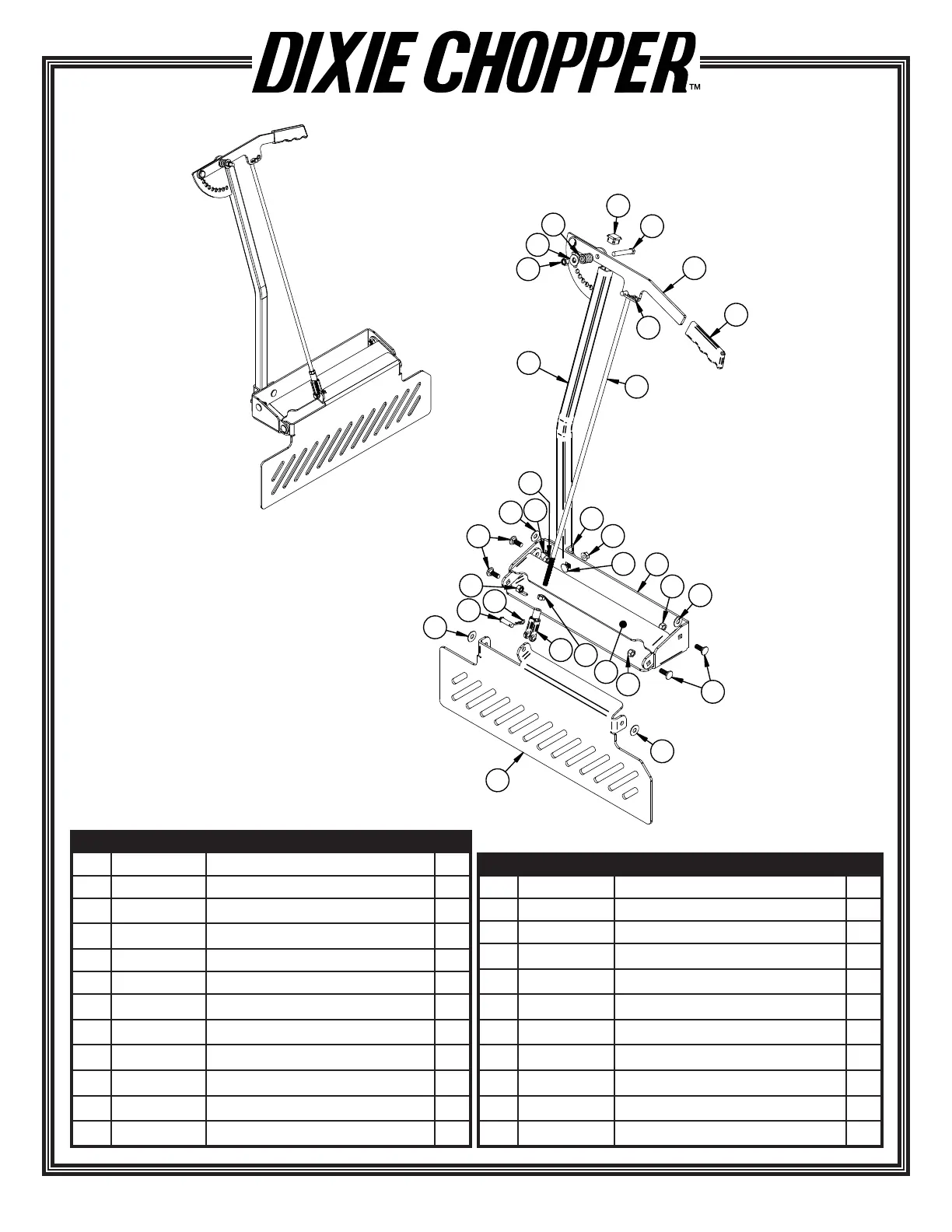

Dixie Chopper XCALIBER 2011 - Page 18

15
74” OCDC
6
2
3
5
1
8
4
7
9
15
14
13
14
10
10
11
14
17
7
16
14
13
10
19
10
20
19
12
21
18
22
REF PART# DESCRIPTION Qty
300394 Assembly-74” OCDC
1 B-179 3/8”-16X2-1/2” Bolt 1
2 W-104 3/8” Flat Washer 1
3 20252 Spring 1
4 300398 Handle 1
5 68142 1” X 1” Plastic Plug 1
6 N-107 3/8”-16 Nyloc Nut 1
7 20224 Clip 2
8 67258 Handle Grip 1
9 68130 Control Rod (Inc. #9,11,16) 1
10 N-107 3/8”-16 Nyloc Nut 2
11 N-155 3/8”-24 Yoke 1
REF PART# DESCRIPTION Qty
12 300399 Handle Strap Bracket
13 B-135 3/8”-16 X 1” Carriage Bolt 4
14 W-125 3/8” X 7/8” Nylon Washer 4
15 300397 OCDC Screen F/74” 1
16 N-150 3/8”-24 Hex Nut 1
17 P-102 3/8”X1-1/4” Clevis Pin 1
18 300396 Hinge Bracket 1
19 B-110 3/8”-16 X 3/4” Carriage Bolt 2
20 N-108 3/8”-16 Whiz Flange Nut 2
21 300395 Base Plate 1
22 300400 Riser Weldment 1
