Dixie Chopper XCALIBER 2011 - Page 16

13
1
2
3
4
5
5
6
7
7
8
10
11
12
13
14
15
16
17
18
19
19
20
REF# PART# DESCRIPTION QTY
1 300250B Pin-Clevis 1/2” w/Lanyard and Clip 1
2 B-258 M5 - .8X16mm HHCS Bolt 1
3 W-175 M5 Flat Washer 1
4 N-179 M5 - .8 HH Nut 1
5 B-108 Bolt-3/8”-16 x 1” HHCS 3
6 300239 Brace-Support Housing Adj. Height 1
7 W-104 Washer-3/8” Flat 3
8 300236 Weldment-Housing Adjustment Height 1
9 800118 Decal - Height Indicator 1
10 300240 Weldment-Arm Sprocket 1
REF# PART# DESCRIPTION QTY
11 P-103 Clevis Pin 1
12 P-117 Cotter Pin 1
13 500039 Actuator-Lift Deck Electric 1
14 N-156 Nut-5/8”-11 Nyloc Jam 1
15 B-185 5/8”-11 X 2” HHCS Gr. 5 1
16 300346 Arm - Chain Actuator 1
17 10232 #50 Master LInk 1
18 990710002 #50 Return Spring Chain
19 N-108 Nut-3/8”-16 Whiz Flange 3
20 100152 Pin - Foot Pedal 1

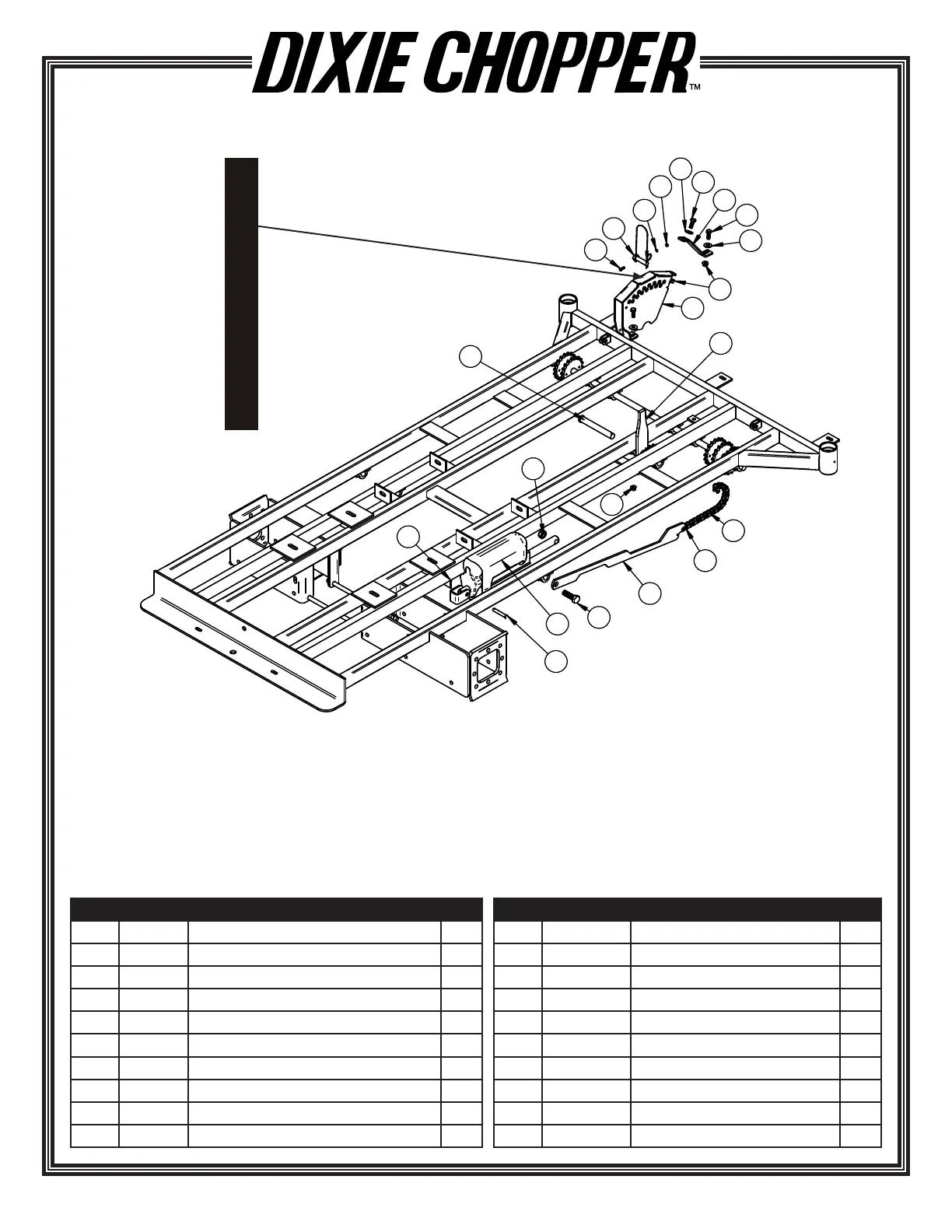

ELECTRIC DECK LIFT XCLP74”
5.00”
4.75”
4.50”
4.25”
4.00”
3.75”
3.50”
3.25”
3.00”
2.75”
2.50”
2.25”
2.00”
1.75”
1.50”
800118
9
