DJI Mavic 3E/3T User Manual
65
©
2022 DJI All Rights Reserved.
1. Aircraft: the attitude indicator will rotate as the aircraft changes its orientation.
2. Aircraft Orientation: displays the current orientation of the aircraft. The compass has
360° in total, and each direction is separated by 30°. The north corresponds to 0 and
360°. For example, when the aircraft points at the number 24, it represents that the
aircraft yaws 240° in a clockwise direction starting north.
3. Aircraft Horizontal Speed Vector: the white line extending from the aircraft icon indicates
the flight direction and how fast the aircraft is flying.
4. Vertical Speed (VS): displays the vertical speed of the aircraft when ascending or
descending.
5. Altitude (ALT): displays the altitude of the aircraft relative to the takeoff point.
6. True Altitude (ASL): displays the altitude of the aircraft relative to the average sea level.
7. Distance from Home Point: displays the horizontal distance between the home point
and the aircraft.
8. Home Point and Remote Controller Orientations:
a. Displays the position of the home point relative to the aircraft location. When the
horizontal distance between the aircraft and the home point exceeds 16 m, the
home point icon will still be displayed and stay on the edge of the Navigation Display.
b. When the relative distance between the home point and the remote controller is no
more than 5 m, only the home point will be displayed. When the relative distance
is more than 5 m, a blue dot will be displayed to indicate the position of the remote
controller. When the horizontal distance between the remote controller and the
aircraft exceeds 16 m, the remote controller icon will still be displayed and stay on
the edge of the Navigation Display.

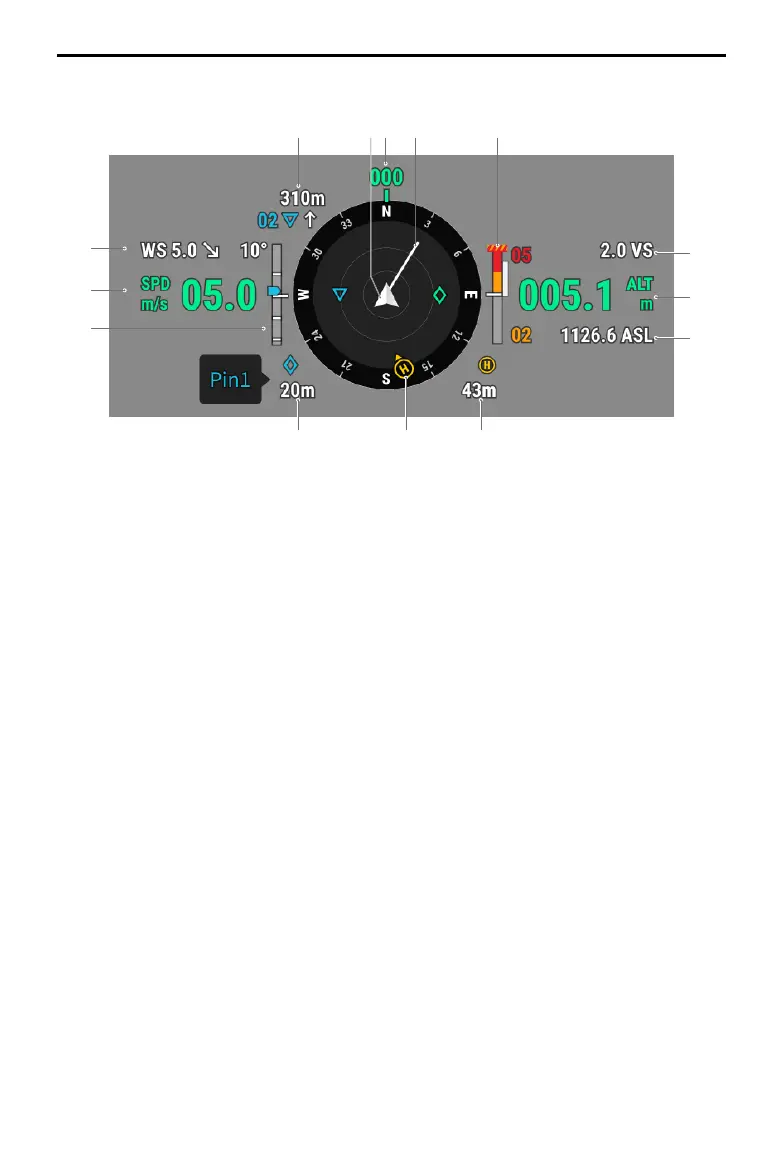

Navigation Display
1 213 3 14
10
11
12
4
5
6
79 8

dji MAVIC 3T Specifications

General

Built-in processor	-
Internal memory	64 GB
Memory card slot(s)	Yes
Compatible memory cards	MicroSD (TransFlash)
AC adapter power	100 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100/240 V
AC adapter output current	2.5 A
Operating temperature (T-T)	-10 - 40 °C
Moving control functions	Backward, Downward, Forward, Upward
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160, 4096 x 2160 pixels
Optical sensor size	1/2 \
Camera shutter speed	8-1/8000 s
Video formats supported	AVC, H.264, H.265, HEVC, MPEG4
Maximum image resolution	5280 x 3956 pixels
Field of view (FOV) angle	85 °
Supported video streaming modes	1080p
Battery voltage	7.2 V
Battery capacity	5000 mAh
Type	Quadcopter
Product color	Gray
USB ports quantity	1
Maximum speed	6 m/s
Frequency band	2.4 - 2.4835 GHz
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	45 min
Maximum ascent speed	1 m/s
Maximum weight capacity	- kg
Maximum wind resistance	12 m/s
Maximum operating distance	32000 m
Maximum yaw angular velocity	200 °/sec
