ZENMUSE L2
User Manual
6
©
2023 DJI All Rights Reserved.
11
2
3

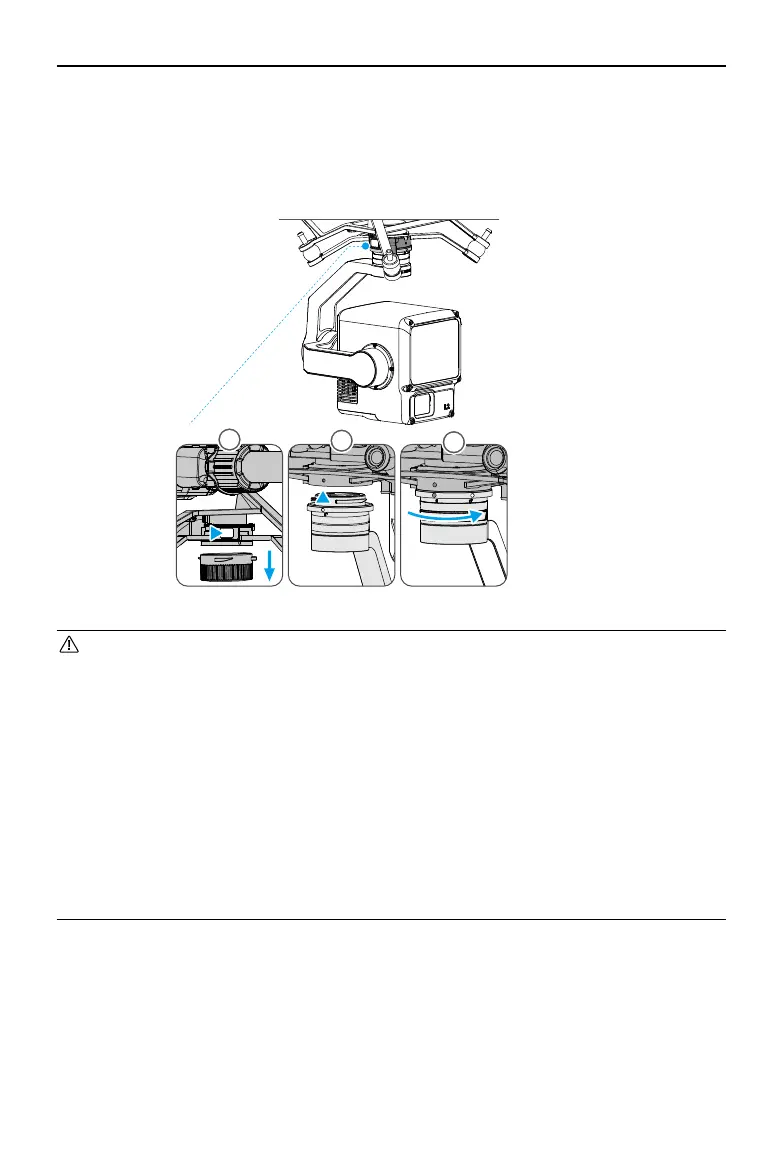

2. Press the button on the aircraft used for detaching the gimbal and camera. Rotate and
remove the gimbal cap on the aircraft.
3. Align the white dot on the gimbal with the red dot on the aircraft and insert the gimbal.
4. Rotate the gimbal lock to the locked position by aligning the red dots.
• To ensure the mapping accuracy, make sure the L2 is mounted on a single downward
gimbal connector with the cable connected to the right USB-C port (when facing the
aircraft).
• Make sure the gimbal connector on the aircraft is positioned correctly when mounting.
Otherwise, the L2 cannot be mounted.
• Only remove the L2 after powering o the aircraft.
• Remove the L2 by pressing the button on the aircraft to detach the gimbal and camera.
• Make sure the microSD card slot cover is rmly in place to prevent dust or moisture
entering during usage or transportation.
• To avoid burns, DO NOT touch the camera case and the optical window when powering
on.
• Detach the gimbal from the aircraft during transportation or storage. Otherwise, the
service life of the damper balls may be shortened or they may even be damaged.
