DKS 1834 PC Programmable - Telephone Entry System Wiring; Telephone Entry System

1834-065-B-10-14
20
NC
NO
ON
CLK
SEN
SPK
VOL
FEED
BACK
RS 232
MIC
VOL
OFF
RING
321
321
321
MASTER
CODE
KEYPAD
16AC16ACBAT1NO1NC1C2RY2CAZIMC
5VDCIMDSPKRCOMMICPSWCGNDPHONE
CONTRAST
RS-232
12
Power Input Aux Terminal
Powers RS-232.
Black (Neg)
Red (Pos)
16.5 VAC
16.5 VAC
20 VA
Power
Input
20 VA
Relay 2 Jumper
Auxiliary Terminal
Relays activate a door lock
or a gate operator for their
programmed strike time at
a controlled access point.
Power wire
polarity does
not matter.
Wiring MUST be twisted and
completely isolated from ground.
See section 2.1.4.
Power Transformers: Use ONLY 16.5 VAC, 20 VA UL Listed
Transformer. BOTH transformers MUST be installed for the
system to operate.
Run 18 AWG wire up to 100 Ft. Run 16 AWG wire up to 200 Ft.
See section 2.1.1, 2.1.3 and 2.1.4 for further information.
Ferrite
Filter

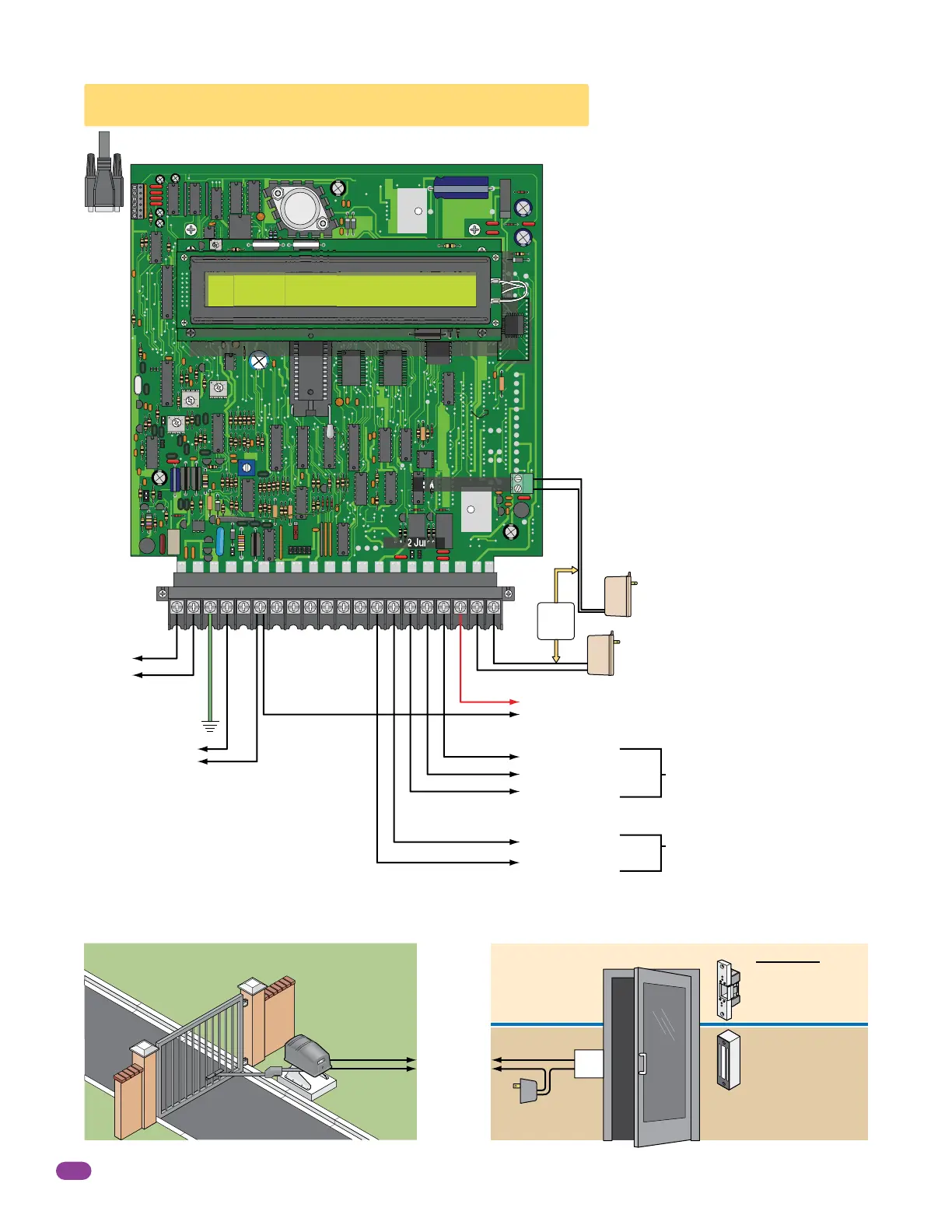

2.3 Telephone Entry System Wiring
PC Connection See section 2.4.2 for wiring RS-232.
Relay 1 Input
Main Terminal
“BAT” & “COM” - 12 VDC Back-Up Battery Input
Back-up battery power.
“PSW” & “COM”
Switch Input -
See section 1.6 for Postal lock
connection.
A switch closure across these
terminals activates Relay 1 for its
programmed strike time.
See section 3.2.6 Switch Input
Feature.
“PHONE”
“PHONE”
“1NO” - Normally Open (NO)
“1NC” - Normally Closed (NC)
“1C” - Common (C)
“2RY” - Contact (NO or NC)
“2C” - Common (C)
Relay 2 Input
“2RY” Contact is set NO or NC with Relay 2 Jumper on board.
See section 4.7
Central Office
Phone Line Input
touch tone, loop start
“CGND” Ground
See section 2.1.3.
Door ControlGate Control
Door Locks
Gate Operator
Power for electric strike or magnetic
lock is NOT provided by the system.
Use separate UL listed power supply.
Magnetic lock is wired to
the Normally Closed (NC)
relay input.
Electric strike is wired
to Normally Open (NO)
relay input.
Gate Operator
is wired to
Normally Open
(NO) relay
input.
Lock Power
UL listed
To a Relay Input
To a
Relay Input
Door
Lock
See
section
2.1.5
