DMM DYN4 Series - Circuit Block Diagram; Encoder Specification

7
DMM Technology Corp.
DYN4 AC Servo Drive Instruction Manual
REV. ZM7-A10A
CT1

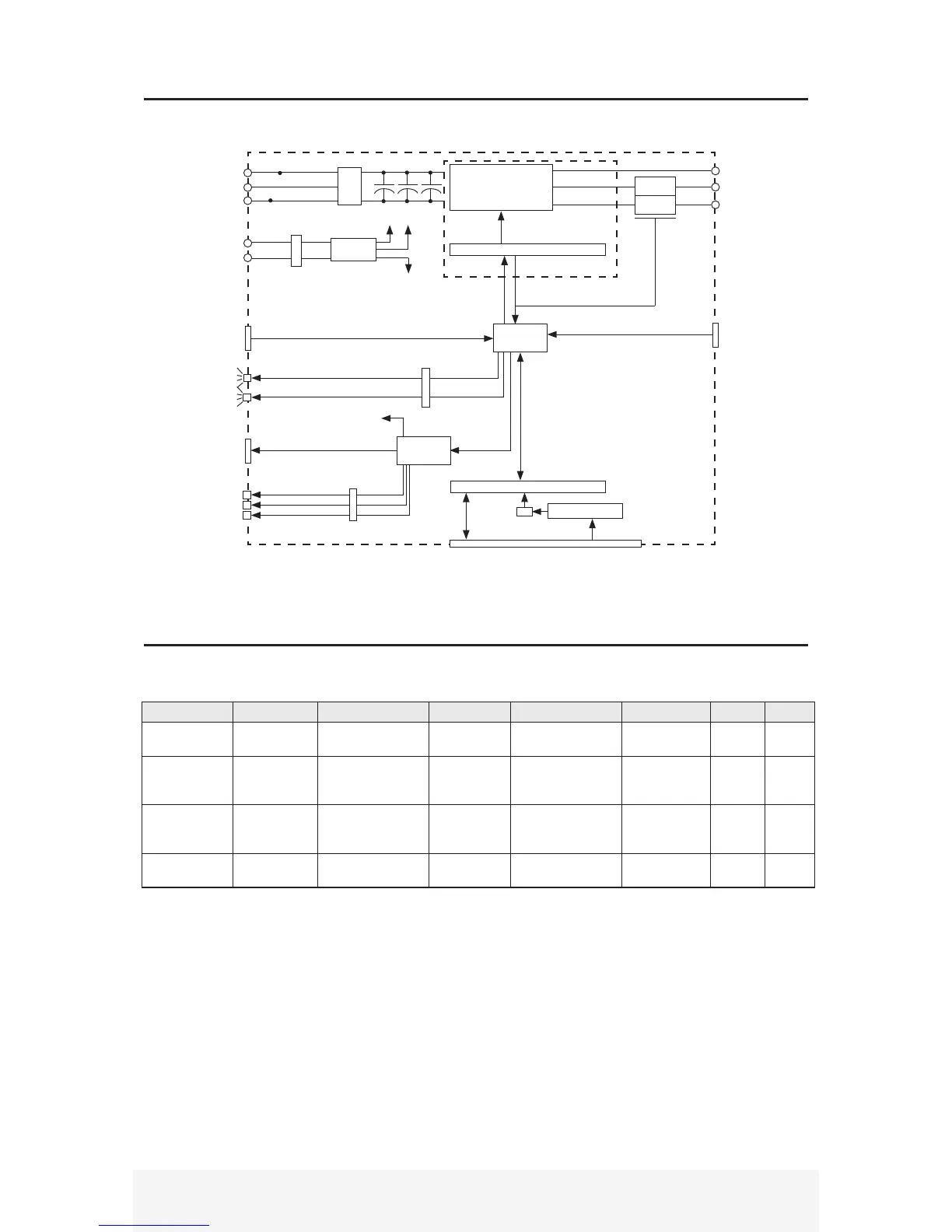

1.4 Circuit Block Diagram
1.5 Encoder Specication
Main Power
Input
RS232
Serial Port
JP2
PSU
Circuit
+5VDC
+15VDC
Main Control
Inverter Circuit
Isolated Gate Control
CPU_1
A
B
C
LED S1
Isolated I/O Interface
JP4
JP3
Encoder
Feedback
A/D
Analog Input
Voltage Protection
DYN4 AC Servo Drive
■ Encoder Model
Model Number Type Resolution Data Type Interface Type Sensor Voltage Status
ABS-16-00
Absolute
Single-Turn
16-bits
[65,536ppr]
4-Wire Serial
Differential Driver/
Receiver
Magnetic +5VDC A
ABS-16-MB1
Absolute
Multi-Turn
With Battery
16-bits Single Turn
16-bits Multi-Turn
6-Wire Serial
Differential Driver/
Receiver
Magnetic +5VDC A
ABS-16-ML1
Absolute
Multi-Turn
Battery-Less
16-bits Single Turn
16-bits Multi-Turn
4-Wire Serial
Differential Driver/
Receiver
Magnetic +5VDC A
ABS-14-00 Absolute
14-bits
[16,384ppr]
6-Wire Serial
Differential Driver/
Receiver
Magnetic +5VDC L
Servo Ready
Alarm
Encoder
Output
JP5
CPU_2
SPI
External
Monitor
Ic_M
PosErr_M
Abs16_M
A/A-/B/B-/Z/Z-
Fan
Current
Sensor
Current
Sensor
Main Power
Input
Filter
DIPM Power Module
