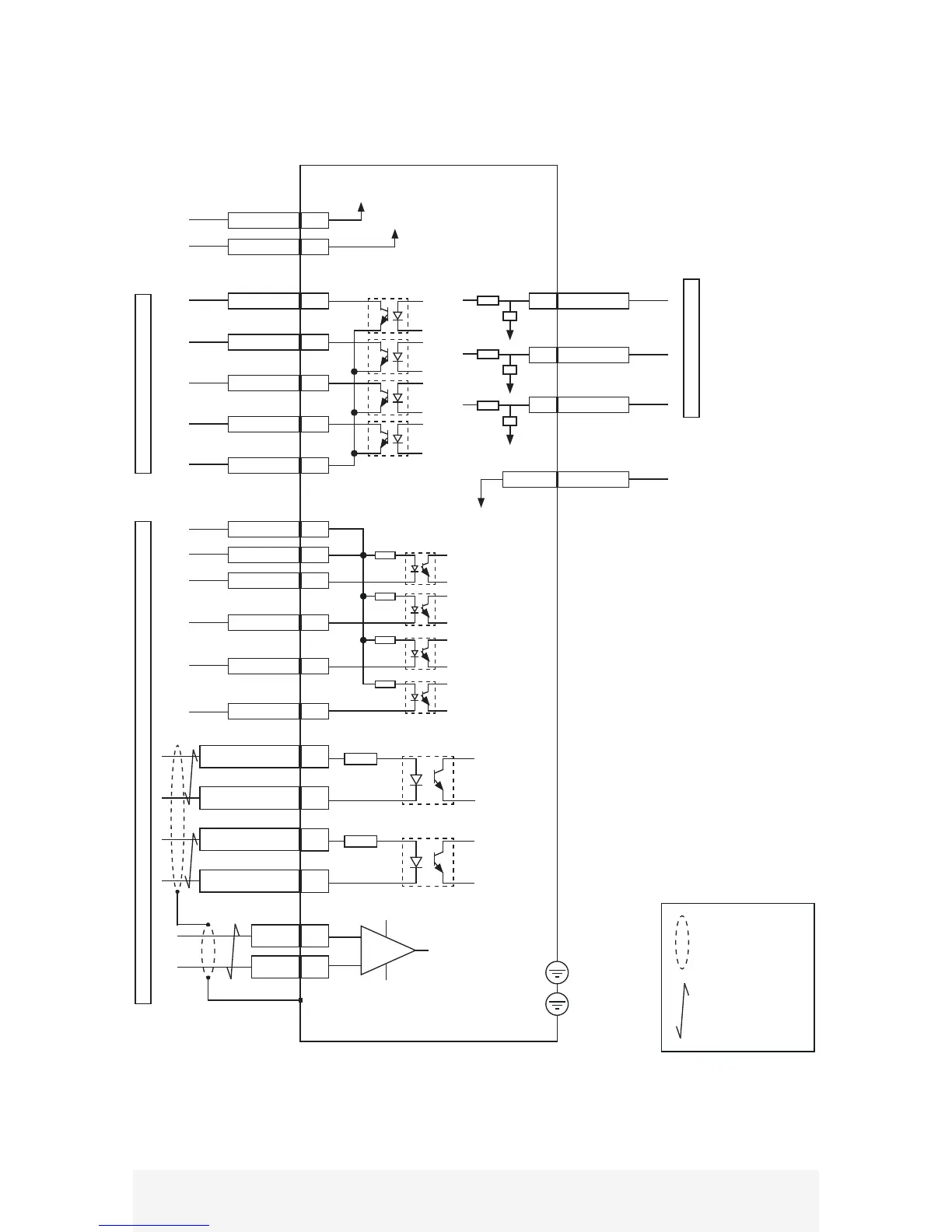

2.3.3 JP4 Consolidated Interface Circuit
AIN+
PUL+, A+, CW+
PUL-, A-, CW-
DIR+, B+, CCW+
DIR-, B-, CCW-
DYN4 Servo Drive
270Ω
270Ω
13
AIN- 25
JP4 Shell
+
-
11
23
22
10
ABS_H 2
SHOLD 3
DIN4 14
ENA 15
+24VIN 16
+14VIN 4
3kΩ
3kΩ
3kΩ
3kΩ
ONPOS 6
SRDY 7
ALM 18
BKO 19
COM 5
+5VOUT 24
+14VOUT 17
Drive Internal +14V
Drive Internal +5V
MO_POS8
MO_ABS20
MO_Ic21
INPUTS OUTPUTS
MONITORS
GND1,9,12
FG
FG
PWM
PWM
PWM
Cable Shield
Twisted Pair Wires
