DMM Technology Corp.
DYN4 AC Servo Drive Instruction Manual
REV. ZM7-A10A
CT1

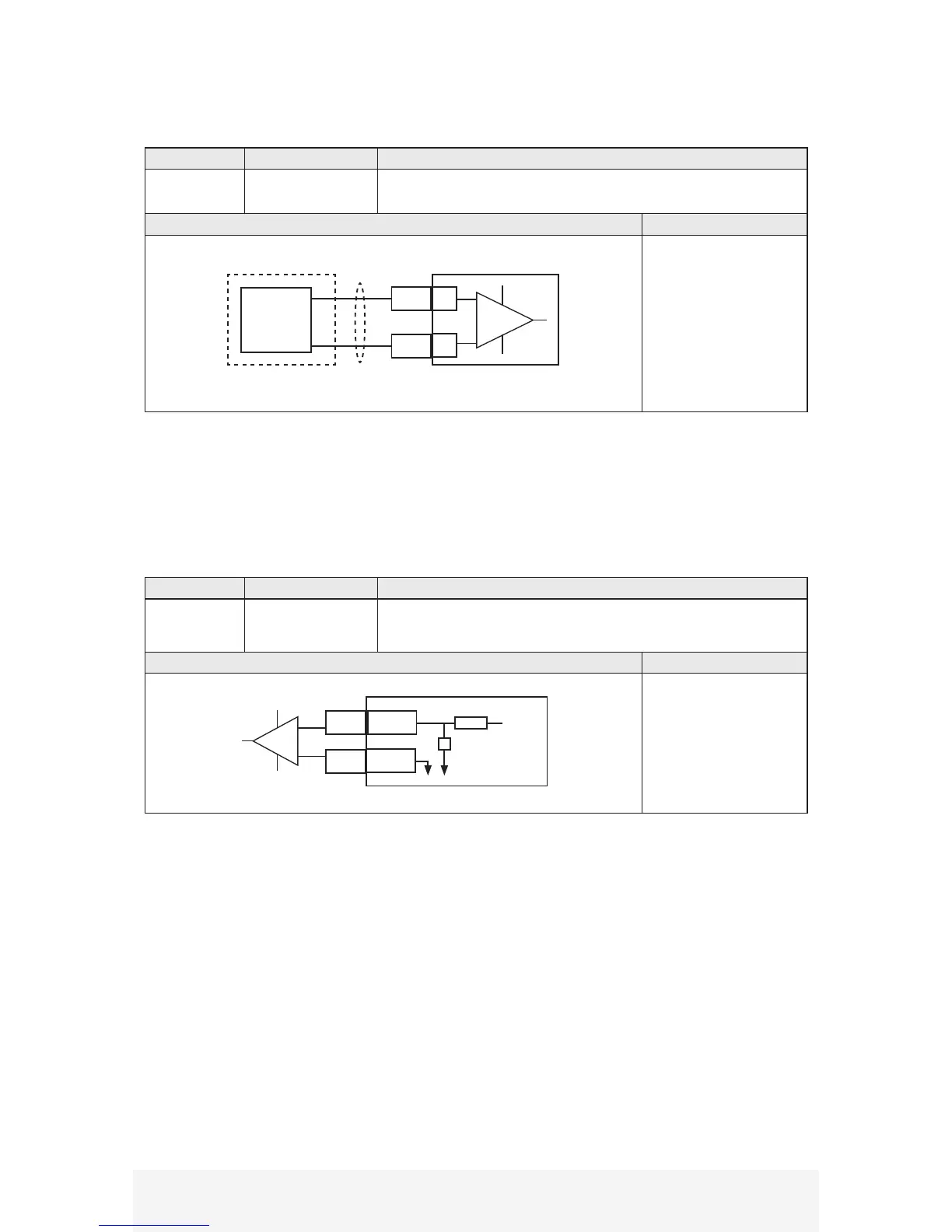

█ Analog Input Circuit
Interface Type Applicable Signals Specication
D
[JP4-13] AIN+
[JP4-25] AIN-
- Max ±12VDC
- Max 0.1mA
Circuit Example Notes
13
25
AIN+
AIN-
D/A Converter
Op-amp
Potentiometer
etc.
█ Analog Output Circuit
Interface Type Applicable Signals Specication
E
[JP4-8] MO_POS
[JP4-20] MO_ABS
[JP4-21] MO_IC
- 0~3.3VDC output
- Max 0.33mA
Circuit Example Notes
8,20,21
1,9,12
GND
+
-
PWM
+
-
