17
DMM Technology Corp.
DYN4 AC Servo Drive Instruction Manual
REV. ZM7-A10A
CT1

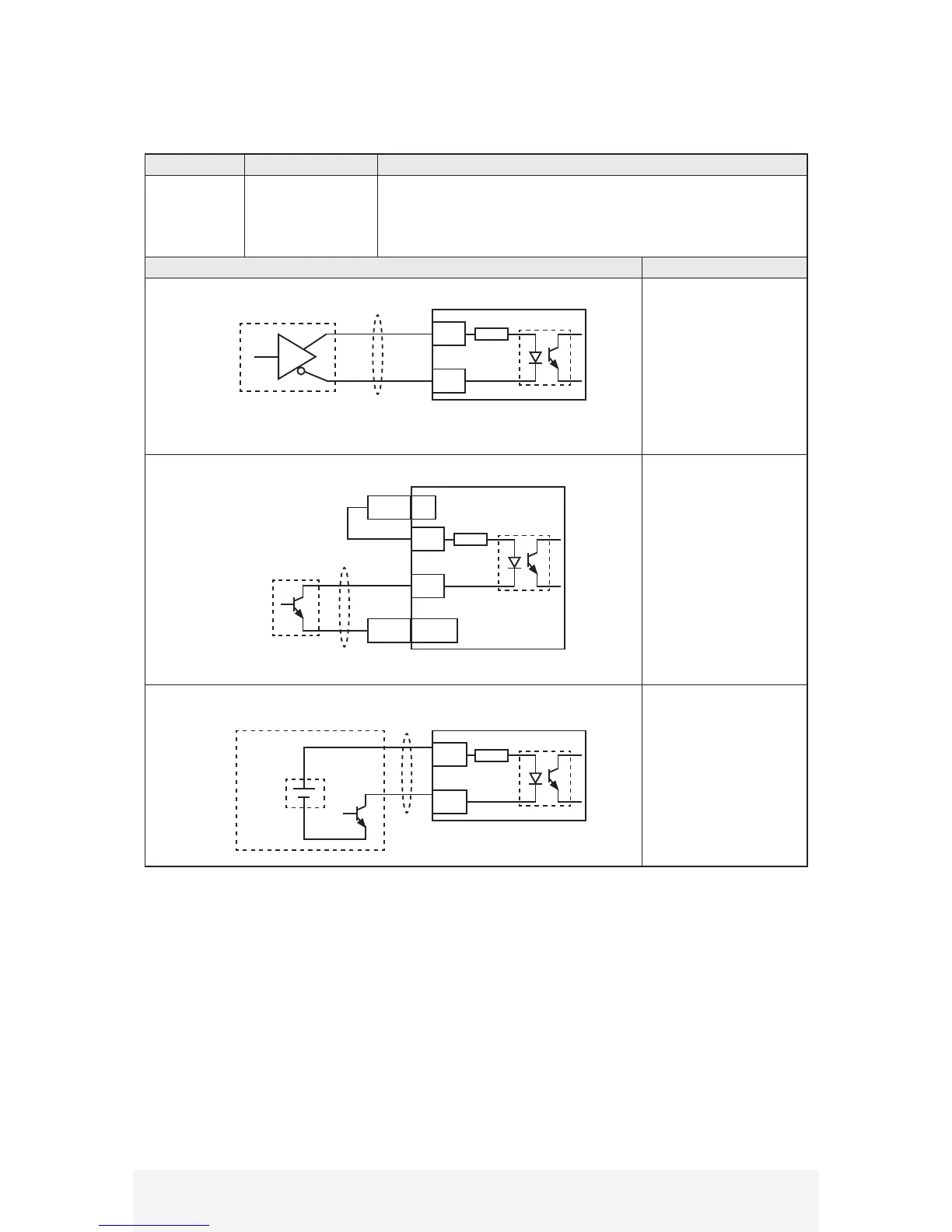

█ Position Reference Pulse Input Circuit
Interface Type Applicable Signals Specication
C
[JP4-10] DIR-
[JP4-11] PUL+
[JP4-22] DIR+
[JP4-23] PUL-
- Voltage: +5VDC ± %10
(Contact DMM if higher level such as 12/24VDC is required)
- Max pulse frequency: 500kHz
- Minimum pulse width: 800us
Circuit Example Notes
Line Driver - Twisted pair cable
with shield grounded on
receiver side.
Open Collector
(DYN4 Internal Power Supply)
- Twisted pair cable
with shield grounded on
receiver side.
Open Collector
(External Power Supply)
- Power supply provided
by host controller or exter-
nal source.
- Twisted pair cable
with shield grounded on
receiver side.
270Ω
10,23
270Ω
11,22
10,23
24+5VDC
1,9,12GND
270Ω
11,22
10,23
+5VDC
11,22
