DMM DYN4 Series - JP4 Interface Circuit Examples

15
DMM Technology Corp.
DYN4 AC Servo Drive Instruction Manual
REV. ZM7-A10A
CT1
Interface Type Applicable Signals Specication
A
[JP4-2] ABS_H
[JP4-3] SHOLD
[JP4-4] +14VIN
[JP4-14] DIN4
[JP4-15] ENA
[JP4-16] +24VIN
- Use external +14VDC or +24VDC power supply
- Can also use internal +14VDC power supply JP4-17
- Max 30VDC input, 10mA
- Do not use same +24VDC power supply as holding brake
Circuit Example (Sink Circuit) Notes
Open Collector - NPN Transistor
Relay/Switch

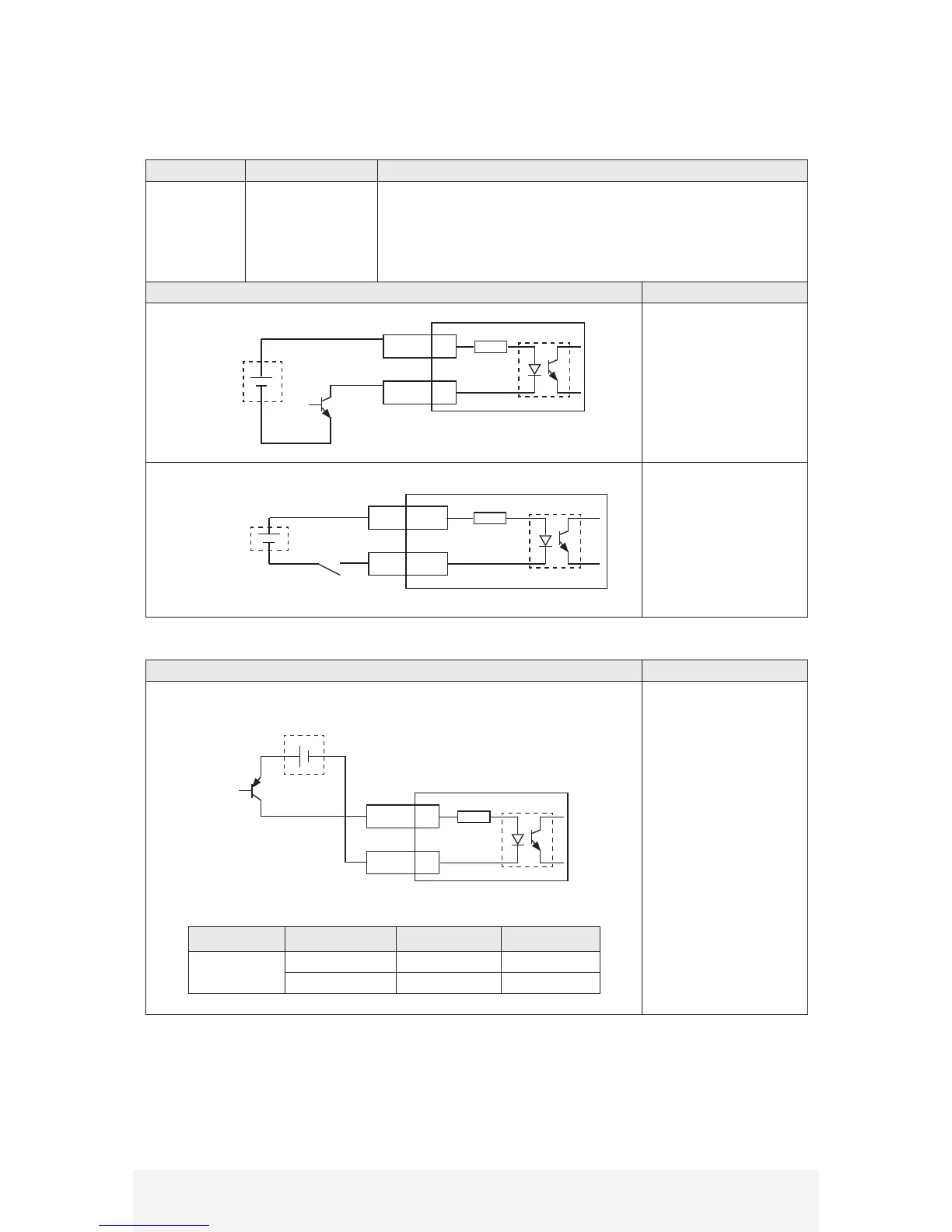

2.3.2 JP4 Interface Circuit Examples
█ General Input Circuit
4,16
3kΩ
+14VDC /
+24VDC
4,16
3kΩ
+14VDC /
+24VDC
Circuit Example (Source Circuit) Notes
Open Collector - PNP Transistor
+14VDC /
+24VDC
4,16
3kΩ
+
-
Example logic using +24VDC power supply:
Power Supply PNP Transistor Voltage Level Signal
+24VDC
OFF 0V Low
ON 24V High
